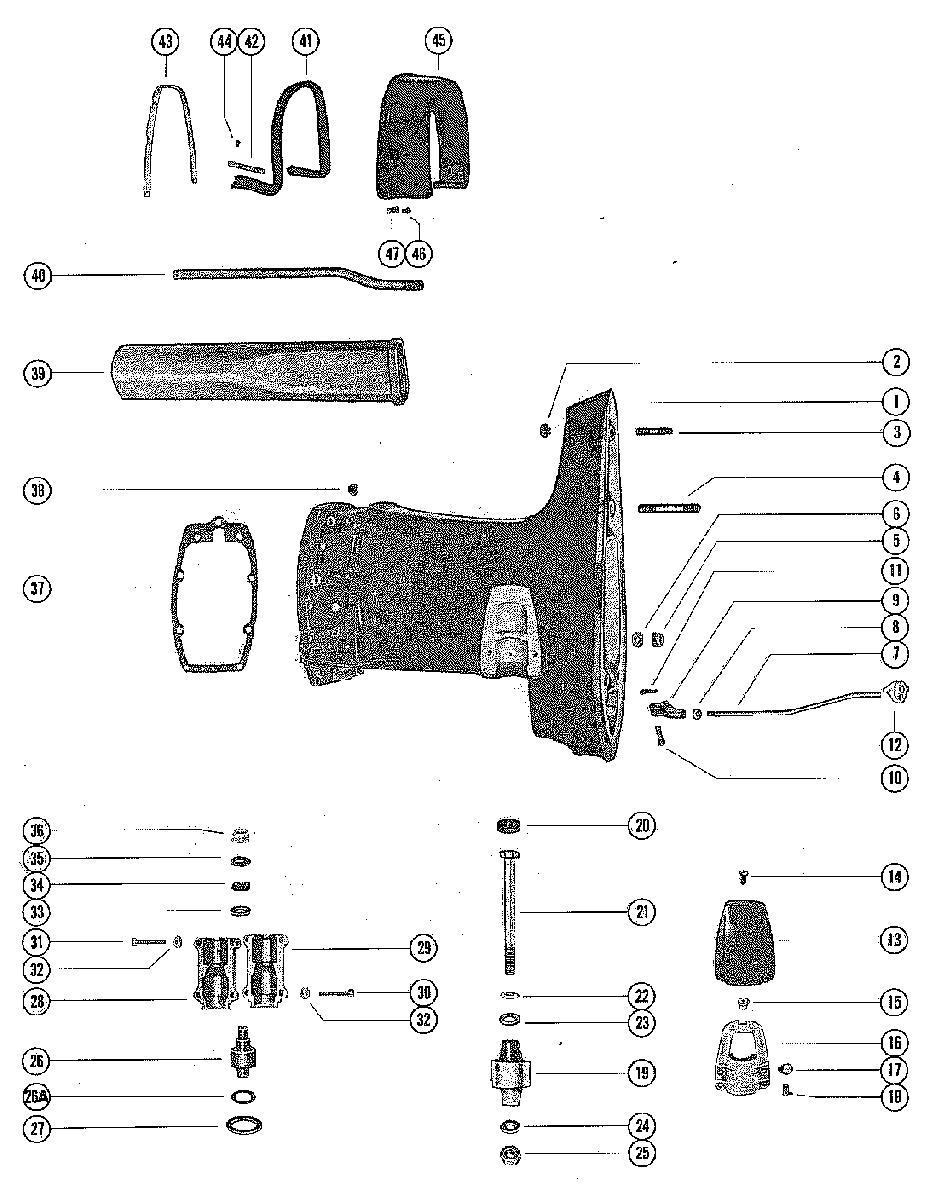

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 500 2858814 THRU 4140999

  • №
    Артикул
    Название
  • 1
    1554-3910A2 DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT) FIGURE 1 SEE CHART
    DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT) FIGURE 1 SEE CHART
  • 1
    1564-3913A2 DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT) FIGURE 1 SEE CHART
    DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT) FIGURE 1 SEE CHART
  • 1
    1592-8188A8 DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT) FIGURE 2 SEE CHART
    DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT) FIGURE 2 SEE CHART
  • 1
    1593-7513A12 DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT) FIGURE 2 SEE CHART
    DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT) FIGURE 2 SEE CHART
  • 2
    19-64649 PLUG, PLASTIC - TRIM TAB SCREW HOLE
    PLUG, PLASTIC - TRIM TAB SCREW HOLE
  • 3
    16-8M0022145 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
  • 4
    16-57935 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
  • 5
    11-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")
    NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")
  • 6
    12-65791 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")
    WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")
  • 7
    47835 ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
    ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
  • 7
    47836 ROD, PUSH - REVERSE LOCK (LONG SHAFT)
    ROD, PUSH - REVERSE LOCK (LONG SHAFT)
  • 8
    11-60049 NUT, JAM - PUSH ROD
    NUT, JAM - PUSH ROD
  • 9
    47837 ROD END, PUSH ROD
    ROD END, PUSH ROD
  • 10
    24-78203A2 PIN, REVERSE LOCK LEVER
    PIN, REVERSE LOCK LEVER
  • 11
    18-25191 COTTER PIN, PUSH ROD TO REVERSE LOCK
    COTTER PIN, PUSH ROD TO REVERSE LOCK
  • 12
    52917 GUIDE, PUSH ROD
    GUIDE, PUSH ROD
  • 13
    35474T COVER, LOWER MOUNT CLAMP
    COVER, LOWER MOUNT CLAMP
  • 14
    10-29722 SCREW, COVER TO LOWER MOUNT CLAMP
    SCREW, COVER TO LOWER MOUNT CLAMP
  • 15
    11-35521 NUT, LOWER MOUNT CLAMP COVER
    NUT, LOWER MOUNT CLAMP COVER
  • 16
    69592F1 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
    CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
  • 17
    10-29256 SCREW, LOWER MOUNT CLAMP?DRIVE SHAFT HSG.
    SCREW, LOWER MOUNT CLAMP?DRIVE SHAFT HSG.
  • 18
    24-35522 SPRING, TENSION - LOWER MOUNT CLAMP
    SPRING, TENSION - LOWER MOUNT CLAMP
  • 19
    75304T1 MOUNT, RUBBER - LOWER
    MOUNT, RUBBER - LOWER
  • 20
    25067 BUMPER, RUBBER - LOWER MOUNT SCREW
    BUMPER, RUBBER - LOWER MOUNT SCREW
  • 21
    10-75284 SCREW, LOWER MOUNT (5 1/2")
    SCREW, LOWER MOUNT (5 1/2")
  • 22
    12-28051 WASHER, LOWER MOUNT SCREW
    WASHER, LOWER MOUNT SCREW
  • 23
    12-28053 WASHER, RUBBER - LOWER MOUNT SCREW
    WASHER, RUBBER - LOWER MOUNT SCREW
  • 24
    12-30119 WASHER, LOWER MOUNT SCREW
    WASHER, LOWER MOUNT SCREW
  • 25
    11-25096 NUT, LOWER MOUNT SCREW
    NUT, LOWER MOUNT SCREW
  • 26
    75305 MOUNT, RUBBER - UPPER
    MOUNT, RUBBER - UPPER
  • 26A
    25-65936 "O" RING, UPPER MOUNT
    UNITED STATES 3816308 AND UP
    AUSTRALIA 8015900 AND UP
    BELGIUM 9047654 AND UP
    CANADA 7030748 AND UP
    "O" RING, UPPER MOUNT
    UNITED STATES 3816308 AND UP
    AUSTRALIA 8015900 AND UP
    BELGIUM 9047654 AND UP
    CANADA 7030748 AND UP
  • 27
    24929 PACKING, "U" CUP - UPPER MOUNT COVERS
    PACKING, "U" CUP - UPPER MOUNT COVERS
  • 28
    79680A1 COVER, UPPER MOUNT - OUTSIDE HALF
    COVER, UPPER MOUNT - OUTSIDE HALF
  • 29
    79680A1 COVER, UPPER MOUNT - INSIDE HALF
    COVER, UPPER MOUNT - INSIDE HALF
  • 30
    10-49987 SCREW, UPPER MOUNT COVER - REAR (1 1/2")
    SCREW, UPPER MOUNT COVER - REAR (1 1/2")
  • 31
    10-37941 SCREW, UPPER MOUNT COVER - FRONT (1 3/4")
    SCREW, UPPER MOUNT COVER - FRONT (1 3/4")
  • 32
    11-35888 NUT, UPPER MOUNT COVER FASTENING SCREW
    NUT, UPPER MOUNT COVER FASTENING SCREW
  • 33
    12-30520 WASHER, UPPER MOUNT BOLT (37/64 ID)
    WASHER, UPPER MOUNT BOLT (37/64 ID)
  • 34
    12-30521 WASHER, RUBBER - UPPER MOUNT BOLT
    WASHER, RUBBER - UPPER MOUNT BOLT
  • 35
    12-30519 WASHER, UPPER MOUNT BOLT (3/8 ID)
    WASHER, UPPER MOUNT BOLT (3/8 ID)
  • 36
    11-23161 NUT, UPPER MOUNT BOLT
    NUT, UPPER MOUNT BOLT
  • 37
    27-385011 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
    GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
  • 38
    11-64809 NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")
    NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")
  • 39
    695431 EXHAUST(SHOFT SHAFT)
    EXHAUST(SHOFT SHAFT)
  • 39
    695441 TUBE, EXHAUST(LONG SHAFT)
    TUBE, EXHAUST(LONG SHAFT)
  • 40
    32-37727 TUBE, WATER INLET (SHORT SHAFT)
    TUBE, WATER INLET (SHORT SHAFT)
  • 40
    32-45679 TUBE, WATER INLET(LONG SHAFT)
    TUBE, WATER INLET(LONG SHAFT)
  • 41
    38157 SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
    SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
  • 42
    38154 STRIP, RETAINING - TRIM COVER SEAL (SIDE)
    STRIP, RETAINING - TRIM COVER SEAL (SIDE)
  • 43
    38158 STRIP, RETAINING - TRIM COVER SEAL (REAR)
    STRIP, RETAINING - TRIM COVER SEAL (REAR)
  • 44
    10-48408 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)
    SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)
  • 45
    37687 COVER, TRIM - DRIVE SHAFT HOUSING
    COVER, TRIM - DRIVE SHAFT HOUSING
  • 46
    10-37571 SCREW, TRIM COVER TO DRIVE SHAFFT HOUSING
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3015353
    CANADA 2742142 THRU 3015453
    SCREW, TRIM COVER TO DRIVE SHAFFT HOUSING
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3015353
    CANADA 2742142 THRU 3015453
  • 46
    10-57807 SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
    UNITED STATES 9008819 AND UP
    AUSTRALIA 3015354 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3015454 AND UP
    SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
    UNITED STATES 9008819 AND UP
    AUSTRALIA 3015354 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3015454 AND UP
  • 47
    25-8M0079730 GROMMET, TRIM COVER SCREW
    UNITED STATES 9008819 AND UP
    AUSTRALIA 3015354 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3015454 AND UP
    GROMMET, TRIM COVER SCREW
    UNITED STATES 9008819 AND UP
    AUSTRALIA 3015354 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3015454 AND UP
