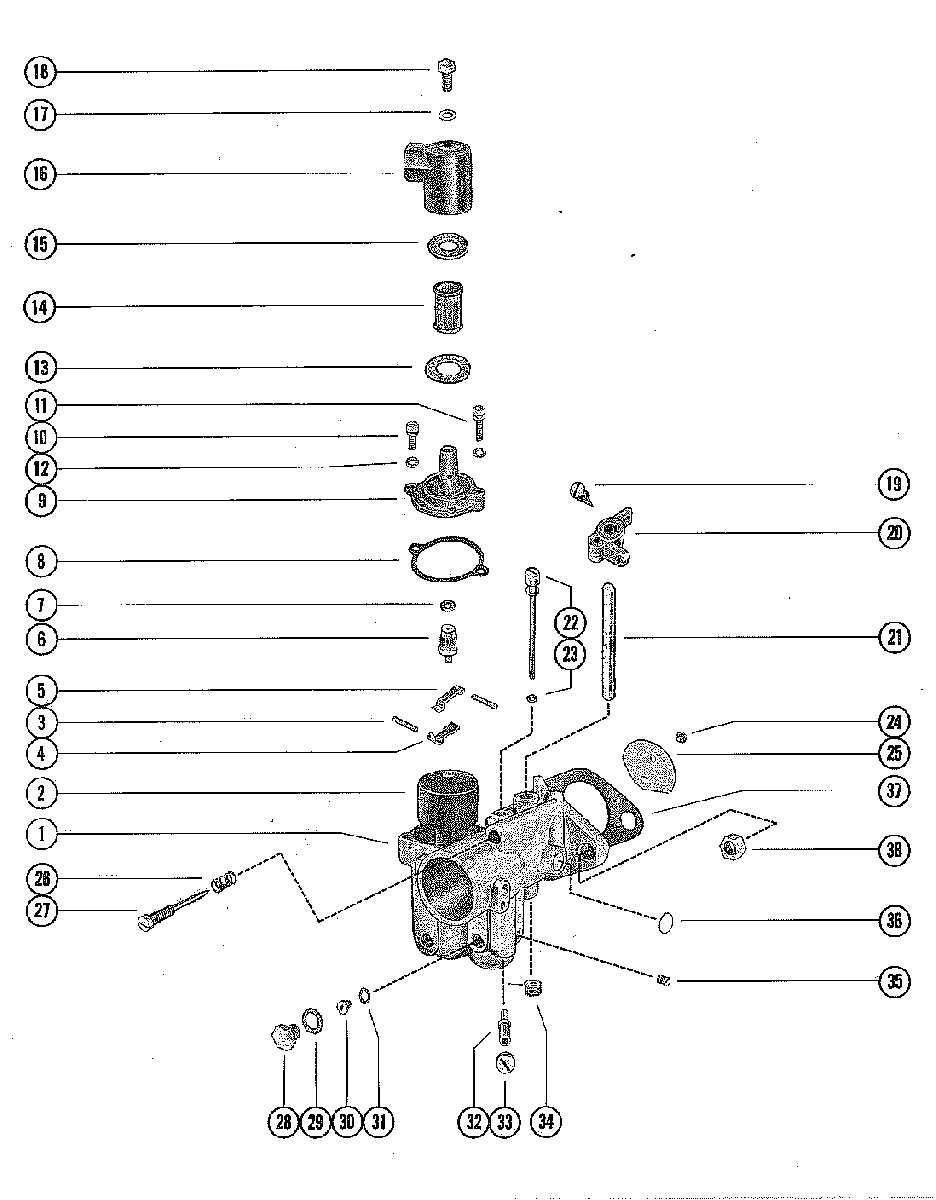

CARBURETOR ASSEMBLY, COMPLETE для Mercury - 500 2858814 THRU 4140999

  • №
    Артикул
    Название
  • 1
    1333-3709 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 2858814 THRU 3816307
    AUSTRALIA 2863739 THRU 8015989
    BELGIUM 9001581 THRU 9047653
    CANADA 2742142 THRU 7030747
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 2858814 THRU 3816307
    AUSTRALIA 2863739 THRU 8015989
    BELGIUM 9001581 THRU 9047653
    CANADA 2742142 THRU 7030747
  • 1
    1333-5818 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 3816308 AND UP
    AUSTRALIA 8015900 AND UP
    BELGIUM 9047654 AND UP
    CANADA 7030748 AND UP
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 3816308 AND UP
    AUSTRALIA 8015900 AND UP
    BELGIUM 9047654 AND UP
    CANADA 7030748 AND UP
  • 2
    1395-8673 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 3
    90-8M0143356 PIN, FLOAT LEVER PINION
    PIN, FLOAT LEVER PINION
  • 4
    90-8M0143356 LEVER, FLOAT (LOWER)
    LEVER, FLOAT (LOWER)
  • 5
    90-8M0143356 LEVER, FLOAT (UPPER)
    LEVER, FLOAT (UPPER)
  • 6
    1395-92581 INLET NEEDLE, SEAT AND GASKET
    INLET NEEDLE, SEAT AND GASKET
  • 7
    90-8M0143356 GASKET, INLET SEAT
    GASKET, INLET SEAT
  • 8
    90-8M0143356 GASKET, FLOAT BOWL COVER
    GASKET, FLOAT BOWL COVER
  • 9
    1399-1133 COVER, FLOAT BOWL
    COVER, FLOAT BOWL
  • 10
    10-52195 SCREW, FLOAT BOWL COVER (SHORT)
    SCREW, FLOAT BOWL COVER (SHORT)
  • 11
    10-52196 SCREW, FLOAT BOWL COVER (LONG)
    SCREW, FLOAT BOWL COVER (LONG)
  • 12
    13-26995 LOCKWASHER, FLOAT BOWL COVER SCREW
    LOCKWASHER, FLOAT BOWL COVER SCREW
  • 13
    90-8M0143356 GASKET, STRAINER COVER (LARGE)
    GASKET, STRAINER COVER (LARGE)
  • 14
    1399-3938 SCREEN FILTER
    SCREEN FILTER
  • 15
    90-8M0143356 GASKET, STRAINER COVER (SMALL)
    GASKET, STRAINER COVER (SMALL)
  • 16
    1399-1135 COVER, STRAINER
    COVER, STRAINER
  • 17
    90-8M0143356 GASKET, STRAINER COVER SCREW
    GASKET, STRAINER COVER SCREW
  • 18
    10-25822 SCREW, STRAINER COVER FASTENING
    SCREW, STRAINER COVER FASTENING
  • 19
    1395-6027 SCREW, THROTTLE STOP LEVER
    SCREW, THROTTLE STOP LEVER
  • 20
    8146791 LEVER, THROTTLE STOP (SEE NOTE BELOW)
    LEVER, THROTTLE STOP (SEE NOTE BELOW)
  • 21
    1399-2012 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 22
    90-8M0143356 TUBE, IDLE
    TUBE, IDLE
  • 23
    90-8M0143356 GASKET, IDLE TUBE
    GASKET, IDLE TUBE
  • 24
    90-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTER
    SCREW AND LOCKWASHER, THROTTLE SHUTTER
  • 25
    1399-3392 SHUTTER, THROTTLE
    SHUTTER, THROTTLE
  • 26
    90-8M0143356 SPRING, IDLE ADJUSTMENT SCREW
    SPRING, IDLE ADJUSTMENT SCREW
  • 27
    1399-1713 SCREW, IDLE ADJUSTMENT
    SCREW, IDLE ADJUSTMENT
  • 28
    10-28405 SCREW, PLUG - MAIN FUEL JET CHANNEL
    SCREW, PLUG - MAIN FUEL JET CHANNEL
  • 29
    90-8M0143356 GASKET, JET CHANNEL PLUG SCREW
    GASKET, JET CHANNEL PLUG SCREW
  • 30
    1399-1465 JET, MAIN FUEL (.065)
    JET, MAIN FUEL (.065)
  • 30
    1399-1463 JET, MAIN FUEL (.063) - STANDARD
    JET, MAIN FUEL (.063) - STANDARD
  • 30
    1399-1461 JET, MAIN FUEL (.061)
    JET, MAIN FUEL (.061)
  • 30
    1399-1459 JET, MAIN FUEL (.059)
    JET, MAIN FUEL (.059)
  • 31
    90-8M0143356 GASKET, MAIN FUEL JET (EARLY MODELS ONLY)
    GASKET, MAIN FUEL JET (EARLY MODELS ONLY)
  • 32
    90-8M0143356 NOZZLE, MAIN
    NOZZLE, MAIN
  • 33
    10-23178 SCREW, PLUG - MAIN NOZZLE
    SCREW, PLUG - MAIN NOZZLE
  • 34
    90-8M0143356 SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)
    SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)
  • 34
    90-8M0143356 SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)
    SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)
  • 35
    10-28845 SCREW, PLUG - BODY CHANNEL
    SCREW, PLUG - BODY CHANNEL
  • 36
    90-8M0143356 WELCH PLUG, BODY CHANNEL
    WELCH PLUG, BODY CHANNEL
  • --
    1399-2015 GASKET AND PACKING SET (1 PER CARBURETOR)
    GASKET AND PACKING SET (1 PER CARBURETOR)
  • --
    1395-92621 REPAIR PARTS KIT (1 PER CARBURETOR)
    UNITED STATES 2858814 THRU 3816307
    AUSTRALIA 2863739 THRU 8015989
    BELGIUM 9001581 THRU 9047653
    CANADA 2742142 THRU 7030747
    REPAIR PARTS KIT (1 PER CARBURETOR)
    UNITED STATES 2858814 THRU 3816307
    AUSTRALIA 2863739 THRU 8015989
    BELGIUM 9001581 THRU 9047653
    CANADA 2742142 THRU 7030747
  • --
    1395-92621 REPAIR PARTS KIT (1 PER CARBURETOR)
    UNITED STATES 3816308 AND UP
    AUSTRALIA 8015900 AND UP
    BELGIUM 9047654 AND UP
    CANADA 7030748 AND UP
    REPAIR PARTS KIT (1 PER CARBURETOR)
    UNITED STATES 3816308 AND UP
    AUSTRALIA 8015900 AND UP
    BELGIUM 9047654 AND UP
    CANADA 7030748 AND UP
  • 37
    27-31402 GASKET, CARBURETOR FLANGE
    GASKET, CARBURETOR FLANGE
  • 38
    11-29250 NUT, CARBURETOR MOUNTING STUD
    NUT, CARBURETOR MOUNTING STUD
