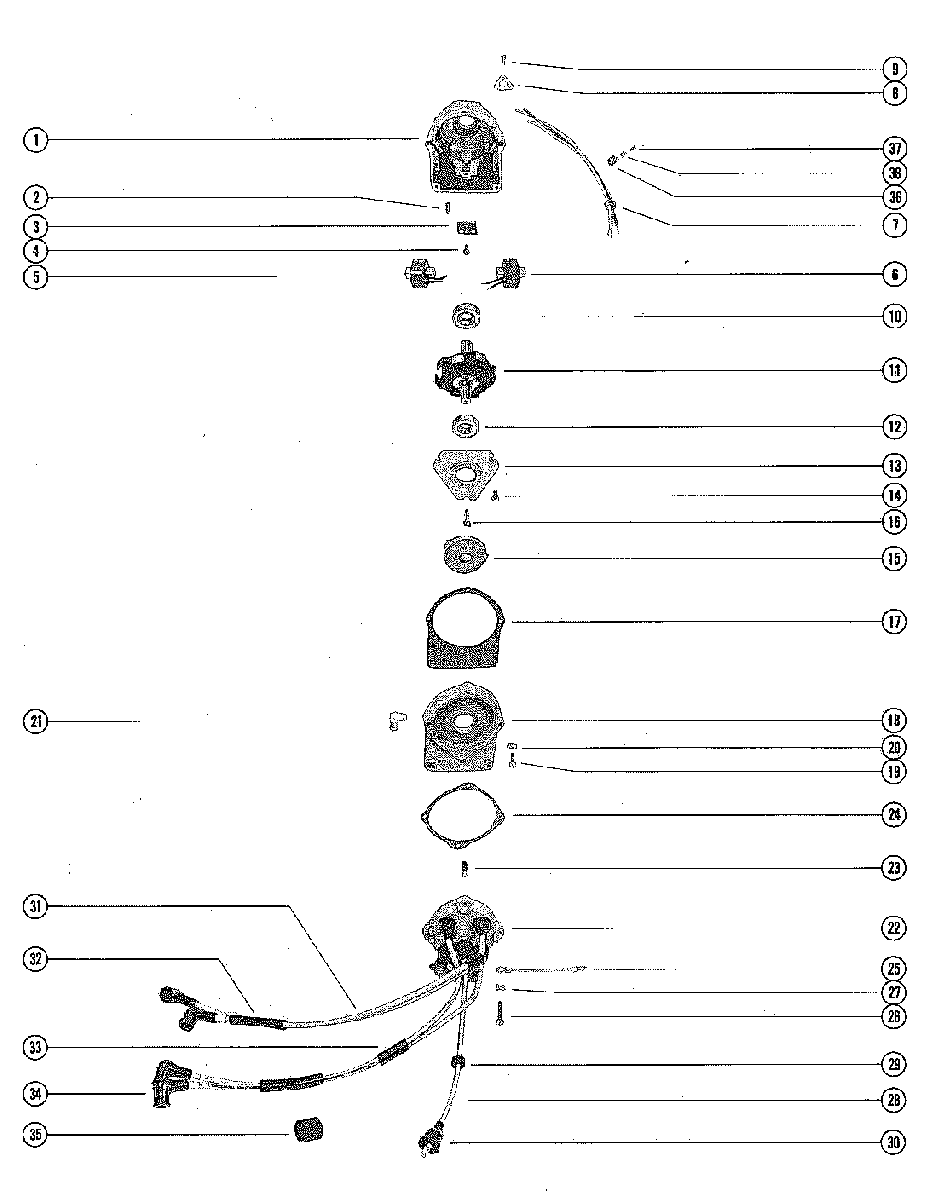

IGNITION DRIVER ASSEMBLY, COMPLETE для Mercury - 500 2858814 THRU 4140999
-
№АртикулНазвание
-
-333-4674A3 IGNITION DRIVER ASSEMBLY, COMPLETE
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512IGNITION DRIVER ASSEMBLY, COMPLETE
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512 -
-333-4674A3 IGNITION DRIVER ASSEMBLY
UNITED STATES 3235063 AND UP
AUSTRALIA 3244338 AND UP
BELGIUM 9001581 AND UP
CANADA 3243513 AND UPIGNITION DRIVER ASSEMBLY
UNITED STATES 3235063 AND UP
AUSTRALIA 3244338 AND UP
BELGIUM 9001581 AND UP
CANADA 3243513 AND UP -
1333-4674A3 HOUSING, IGNITION DRIVER
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512HOUSING, IGNITION DRIVER
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512 -
1333-4674A3 HOUSING, IGNITION DRIVER
UNITED STATES 3235063 AND UP
AUSTRALIA 3244338 AND UP
BELGIUM 9001581 AND UP
CANADA 3243513 AND UPHOUSING, IGNITION DRIVER
UNITED STATES 3235063 AND UP
AUSTRALIA 3244338 AND UP
BELGIUM 9001581 AND UP
CANADA 3243513 AND UP -
210-47183 SCREW, SET - COIL ASSEMBLY FASTENINGSCREW, SET - COIL ASSEMBLY FASTENING
-
3333-3172A1 TERMINAL BOARD ASSEMBLY, IGNITION DRIVERTERMINAL BOARD ASSEMBLY, IGNITION DRIVER
-
410-47182 SCREW, TERMINAL BOARD ASSEMBLY FASTENING (1/2")SCREW, TERMINAL BOARD ASSEMBLY FASTENING (1/2")
-
5333-3175 COIL ASSEMBLY, IGNITION DRIVER (RED)COIL ASSEMBLY, IGNITION DRIVER (RED)
-
6333-3176 COIL ASSEMBLY, IGNITION DRIVER (BLUE)COIL ASSEMBLY, IGNITION DRIVER (BLUE)
-
7333-3173 HARNESS, PRIMARY CABLE - IGNITION DRIVERHARNESS, PRIMARY CABLE - IGNITION DRIVER
-
854-47188 CLAMP, PRIMARY HARNESS CABLE - IGNITION DRIVERCLAMP, PRIMARY HARNESS CABLE - IGNITION DRIVER
-
910-28259 SCREW, PRIMARY HARNESS CABLE FASTENING (5/8")SCREW, PRIMARY HARNESS CABLE FASTENING (5/8")
-
1030-24998 BEARING, BALL - DRIVER END (1 3/8" O.D.)BEARING, BALL - DRIVER END (1 3/8" O.D.)
-
11333-4674A3 SHAFT ASSEMBLY, IGNITION DRIVERSHAFT ASSEMBLY, IGNITION DRIVER
-
1230-49090 BEARING, BALL - IGNITION DRIVER END (1 1/4" O.D.)BEARING, BALL - IGNITION DRIVER END (1 1/4" O.D.)
-
13333-3166 CAP, BEARING - IGNITION DRIVER HOUSINGCAP, BEARING - IGNITION DRIVER HOUSING
-
1410-37656 SCREW, BEARING CAP FASTENING (9/16")SCREW, BEARING CAP FASTENING (9/16")
-
15333-3143 ROTOR ASSEMBLY, IGNITION DRIVERROTOR ASSEMBLY, IGNITION DRIVER
-
1654-47187 SPRING, CLIP - IGNITION DRIVER ROTORSPRING, CLIP - IGNITION DRIVER ROTOR
-
1727-61031 GASKET, IGNITION DRIVER COVER
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512GASKET, IGNITION DRIVER COVER
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512 -
1727-61031 GASKET, IGNITION DRIVER COVER
UNITED STATES 3235063 AND UP
AUSTRALIA 3244338 AND UP
BELGIUM 9001581 AND UP
CANADA 3243513 AND UPGASKET, IGNITION DRIVER COVER
UNITED STATES 3235063 AND UP
AUSTRALIA 3244338 AND UP
BELGIUM 9001581 AND UP
CANADA 3243513 AND UP -
18333-4639A1 COVER, IGNITION DRIVER
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512COVER, IGNITION DRIVER
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512 -
18333-4639A1 COVER, IGNITION DRIVER
UNITED STATES 3235063 AND UP
AUSTRALIA 3244338 AND UP
BELGIUM 9001581 AND UP
CANADA 3243513 AND UPCOVER, IGNITION DRIVER
UNITED STATES 3235063 AND UP
AUSTRALIA 3244338 AND UP
BELGIUM 9001581 AND UP
CANADA 3243513 AND UP -
1910-20189 SCREW, IGNITION DRIVER COVER FASTENING (3/4")SCREW, IGNITION DRIVER COVER FASTENING (3/4")
-
2014-29157 TAB WASHER, IGNITION DRIVER COVER FASTENING SCREWTAB WASHER, IGNITION DRIVER COVER FASTENING SCREW
-
2122-31521 ELBOW, VENT - IGNITION DRIVER COVER
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512ELBOW, VENT - IGNITION DRIVER COVER
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512 -
2158807A1 FLAME ARRESTOR, IGNITION DRIVER COVER
UNITED STATES 3235063 AND UP
AUSTRALIA 3244338 AND UP
BELGIUM 9001581 AND UP
CANADA 3243513 AND UPFLAME ARRESTOR, IGNITION DRIVER COVER
UNITED STATES 3235063 AND UP
AUSTRALIA 3244338 AND UP
BELGIUM 9001581 AND UP
CANADA 3243513 AND UP -
22333-3142A3 CAP ASSEMBLY, IGNITION DRIVERCAP ASSEMBLY, IGNITION DRIVER
-
23333-3165A1 BRUSH AND SPRING ASSEMBLYBRUSH AND SPRING ASSEMBLY
-
2427-47190 GASKET, IGNITION DRIVER CAPGASKET, IGNITION DRIVER CAP
-
25394-1134A2 GROUND STRAP ASSEMBLYGROUND STRAP ASSEMBLY
-
2610-47181 SCREW, IGNITION DRIVER CAP FASTENING (1 7/8")SCREW, IGNITION DRIVER CAP FASTENING (1 7/8")
-
2610-73013 SCREW, IGNITION DRIVER CAP FASTENING (1 1/2")SCREW, IGNITION DRIVER CAP FASTENING (1 1/2")
-
2714-29157 TAB WASHER, IGNITION DRIVER CAP FASTENING SCREWTAB WASHER, IGNITION DRIVER CAP FASTENING SCREW
-
2884-821945A8 LEAD ASSEMBLY, HIGH TENSION - DRIVER TO COILLEAD ASSEMBLY, HIGH TENSION - DRIVER TO COIL
-
--8M0084600 TERMINAL, HIGH TENSION LEADTERMINAL, HIGH TENSION LEAD
-
--85-94589 SLEEVE, HIGH TENSION LEAD TERMINAL COVERSLEEVE, HIGH TENSION LEAD TERMINAL COVER
-
2925-26547 GROMMET, COIL WIRE BRACKETGROMMET, COIL WIRE BRACKET
-
30332-2854T01 BOOT, HIGH TENSION LEAD CABLEBOOT, HIGH TENSION LEAD CABLE
-
3184-813715A1 SPARK PLUG LEAD ASSEMBLY (27 1/2")
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS.SPARK PLUG LEAD ASSEMBLY (27 1/2")
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS. -
--8M0084600 CONNECTOR, SPARK PLUG LEADCONNECTOR, SPARK PLUG LEAD
-
--85-94589 SLEEVE, SPARK PLUG LEAD TO IGNITION DRIVERSLEEVE, SPARK PLUG LEAD TO IGNITION DRIVER
-
3232-46768 SLEEVE, SPARK PLUG LEAD (6")SLEEVE, SPARK PLUG LEAD (6")
-
3332-46768 SLEEVE, SPARK PLUG LEAD (1 1/2")
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512SLEEVE, SPARK PLUG LEAD (1 1/2")
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512 -
3485-63709A1 PROTECTOR ASSEMBLY, SPARK PLUG LEADSPROTECTOR ASSEMBLY, SPARK PLUG LEADS
-
3532-46398 SLEEVE, HIGH TENSION CABLE (3/4")
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512SLEEVE, HIGH TENSION CABLE (3/4")
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512 -
--59126 SEPERATOR, IGNITION LEADSSEPERATOR, IGNITION LEADS
-
3654-22627 CLIP, IGNITION DRIVER LEADCLIP, IGNITION DRIVER LEAD
-
3710-25764 SCREW, IGNITION DRIVE LEAD TO SWITCH BOX (1/2")SCREW, IGNITION DRIVE LEAD TO SWITCH BOX (1/2")
-
388M0084613 "D" WASHER, IGNITION DRIVER LEAD SCREW"D" WASHER, IGNITION DRIVER LEAD SCREW
