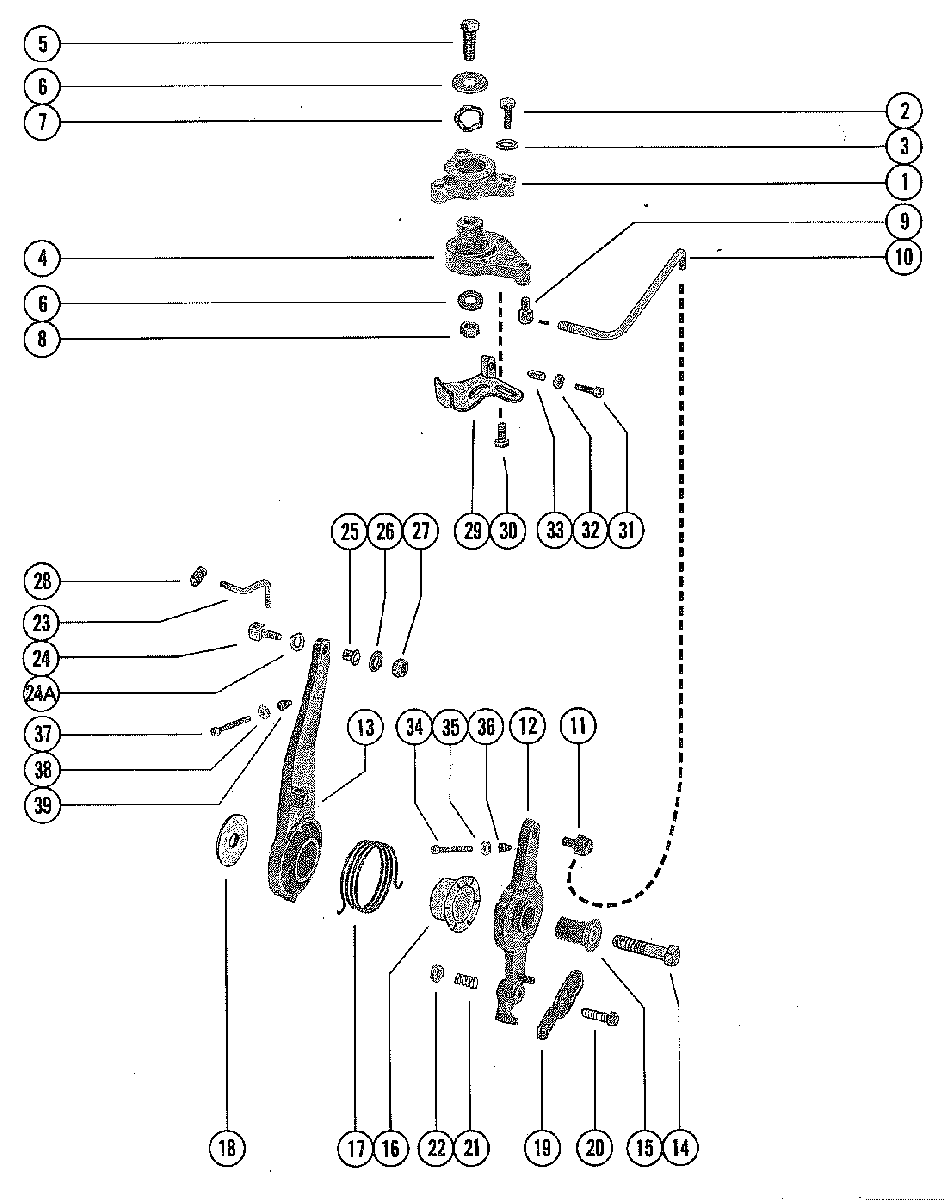

THROTTLE CONTROL LINKAGE AND SPARK ADVANCE для Mercury - 500, 50 9107214 THRU 9248005
-
№АртикулНазвание
-
172040T BRACKET, THROTTLE ACTUATORBRACKET, THROTTLE ACTUATOR
-
210-53576 SCREW, THROTTLE ACTUATOR BRACKET (1 1/8")SCREW, THROTTLE ACTUATOR BRACKET (1 1/8")
-
313-26993 LOCKWASHER
THROTTLE ACTUATOR BRACKET SCREWLOCKWASHER
THROTTLE ACTUATOR BRACKET SCREW -
4815603A1 ACTUATOR, THROTTLEACTUATOR, THROTTLE
-
510-21449 SCREW, BRACKET TO THROTTLE ACTUATOR (2")SCREW, BRACKET TO THROTTLE ACTUATOR (2")
-
612-25893 WASHER, BRACKET SCREWWASHER, BRACKET SCREW
-
713-62172 WAVE WASHER, BRACKET SCREWWAVE WASHER, BRACKET SCREW
-
811-29250 NUT, BRACKET SCREWNUT, BRACKET SCREW
-
957440 SWIVEL, LINK ROT TO THROTTLE ACTUATORSWIVEL, LINK ROT TO THROTTLE ACTUATOR
-
1072043 LINK RODLINK ROD
-
1157440 SWIVEL, LINK ROD TO THROTTLE ARMSWIVEL, LINK ROD TO THROTTLE ARM
-
1272034 ARM, THROTTLE
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597ARM, THROTTLE
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597 -
13815607A1 LEVER, SPARK ADVANCE
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597LEVER, SPARK ADVANCE
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597 -
12815603A1 ARM, THROTTLE
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPARM, THROTTLE
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
13815607A1 LEVER, SPARK ADVANCE
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPLEVER, SPARK ADVANCE
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
1410-818165 SCREW
LEVER AND ARM TO CYLINDER BLOCK (1 3/4")SCREW
LEVER AND ARM TO CYLINDER BLOCK (1 3/4") -
1523-55164 BUSHING, LEVER AND ARM SCREWBUSHING, LEVER AND ARM SCREW
-
1623-55171 BUSHING, LEVER AND ARM SCREWBUSHING, LEVER AND ARM SCREW
-
1724-55162 SPRING, RETURN - SPARK ADVANCE LEVERSPRING, RETURN - SPARK ADVANCE LEVER
-
1812-46765 WASHER, LEVER AND ARM SCREWWASHER, LEVER AND ARM SCREW
-
1939483 LATCH, THROTTLE ARM (THROTTLE CABLE)LATCH, THROTTLE ARM (THROTTLE CABLE)
-
2010-69026 SCREW, LATCH TO THROTTLE ARM (7/8")SCREW, LATCH TO THROTTLE ARM (7/8")
-
2124-20099 SPRING, COMPRESSION - LATCH SCREWSPRING, COMPRESSION - LATCH SCREW
-
2211-826709109 NUT, LATCH SCREWNUT, LATCH SCREW
-
2372042 LINK ROD
SPARK ADVANCE (1" LONG) MEASURE LENGTH OF LINK ROD TO INSURE ORDERING CORRECT PART.LINK ROD
SPARK ADVANCE (1" LONG) MEASURE LENGTH OF LINK ROD TO INSURE ORDERING CORRECT PART. -
2376056 LINK ROD
SPARK ADVANCE (2 1/2" LONG) MEASURE LENGTH OF LINK ROD TO INSURE ORDERING CORRECT PART.LINK ROD
SPARK ADVANCE (2 1/2" LONG) MEASURE LENGTH OF LINK ROD TO INSURE ORDERING CORRECT PART. -
2477013A1 SWIVEL, LINK ROD TO SPARK ADVANCE LEVERSWIVEL, LINK ROD TO SPARK ADVANCE LEVER
-
24A13-29402 WAVE WASHER, SWIVELWAVE WASHER, SWIVEL
-
2523-26856 BUSHING, LINK ROD SWIVELBUSHING, LINK ROD SWIVEL
-
2612-73288 WASHER, LINK ROD SWIVELWASHER, LINK ROD SWIVEL
-
2711-45774 NUT, LINK ROD SWIVELNUT, LINK ROD SWIVEL
-
2861939 PIVOL, THREADED - LINK ROD TO TRIGGERPIVOL, THREADED - LINK ROD TO TRIGGER
-
2966778T PLATE, THROTTLE ACTUATORPLATE, THROTTLE ACTUATOR
-
3010-46420 SCREW, PLATE TO THROTTLE ACTUATOR (1/2")SCREW, PLATE TO THROTTLE ACTUATOR (1/2")
-
3110-23015 SCREW, ADJUSTING - PLATE (1")
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597SCREW, ADJUSTING - PLATE (1")
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249
CANADA 7068998 THRU 7088597 -
3110-23702 SCREW, ADJUSTING - PLATE (1 1/8")
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPSCREW, ADJUSTING - PLATE (1 1/8")
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
3211-68219 NUT, ADJUSTING SCREWNUT, ADJUSTING SCREW
-
3348039 CAP, ADJUSTING SCREWCAP, ADJUSTING SCREW
-
3410-89778 SCREW, ADJUSTING - THROTTLE ARM (2 1/4")
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPSCREW, ADJUSTING - THROTTLE ARM (2 1/4")
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
3410-25158 SCREW, ADJUSTING - THROTTLE ARM (1 3/4")
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPSCREW, ADJUSTING - THROTTLE ARM (1 3/4")
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
3511-68219 NUT, ADJUSTING SCREW
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPNUT, ADJUSTING SCREW
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
3648039 CAP, ADJUSTING SCREW
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPCAP, ADJUSTING SCREW
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
3710-25158 SCREW
ADJUSTING - SPARK ADVANCE LEVER (1 3/4")
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPSCREW
ADJUSTING - SPARK ADVANCE LEVER (1 3/4")
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
3811-68219 NUT, ADJUSTING SCREW
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPNUT, ADJUSTING SCREW
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
3948039 CAP, ADJUSTING SCREW
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPCAP, ADJUSTING SCREW
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP
