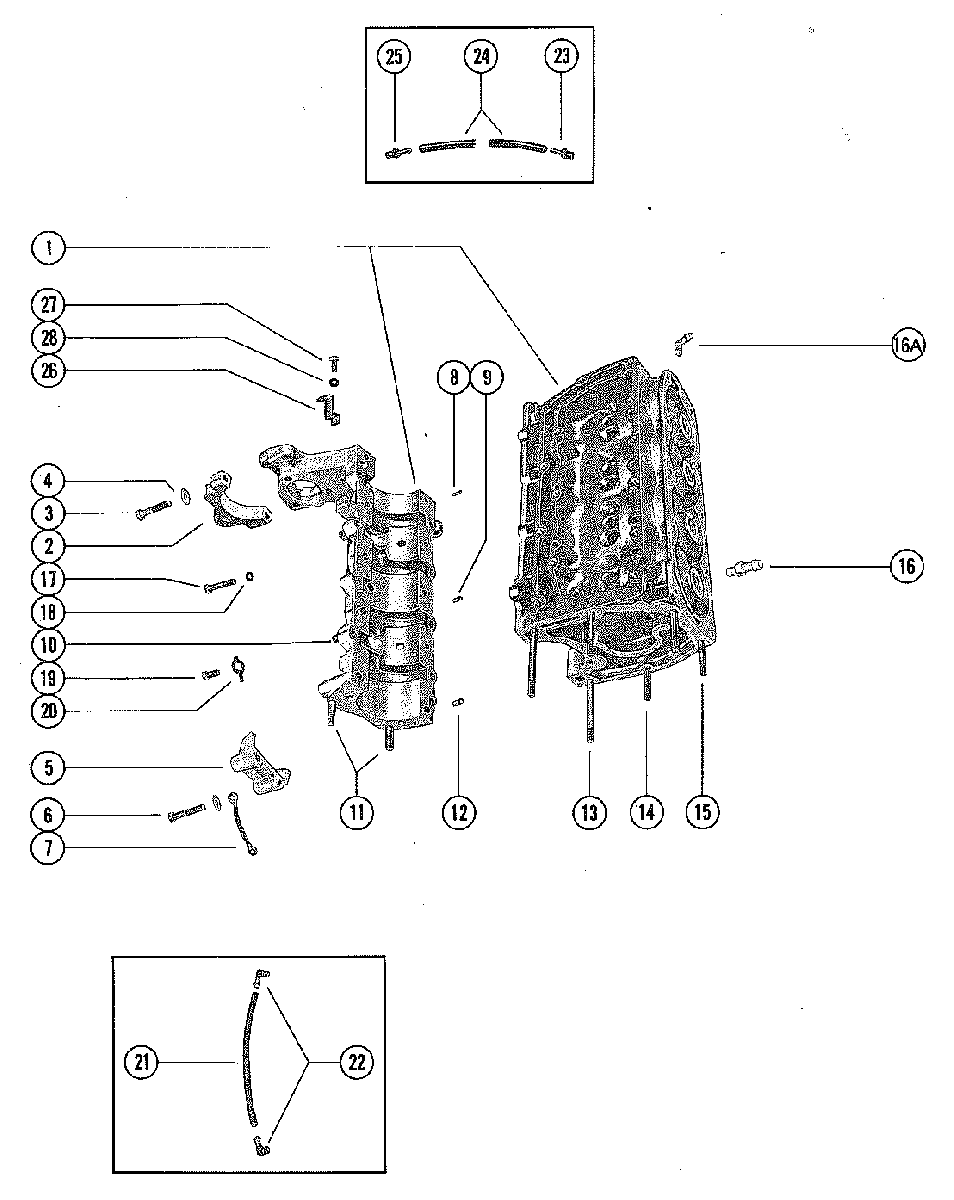

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 500, 50 9107214 THRU 9248005

  • №
    Артикул
    Название
  • 1
    863-8981A6 CYLINGER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
    CYLINGER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
  • 1
    863-8981A6 CYLINGER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 4962056 THRU 5193258
    AUSTRALIA 8053230 THRU 8057394
    BELGIUM 9195686 THRU 9217255
    CANADA 7115573 THRU 7116222
    CYLINGER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 4962056 THRU 5193258
    AUSTRALIA 8053230 THRU 8057394
    BELGIUM 9195686 THRU 9217255
    CANADA 7115573 THRU 7116222
  • 1
    863-8981A6 CYLINGER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    CYLINGER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
  • 2
    72038 BRACKET, STARTER MOTOR (UPPER)
    BRACKET, STARTER MOTOR (UPPER)
  • 3
    10-73278 SCREW, BRACKET TO CRANKCASE (1 5/8")
    SCREW, BRACKET TO CRANKCASE (1 5/8")
  • 4
    13-26993 LOCKWASHER, BRACKET SCREW
    LOCKWASHER, BRACKET SCREW
  • 5
    76867 COVER, STARTER MOTOR (LOWER)
    COVER, STARTER MOTOR (LOWER)
  • 6
    10-73279 SCREW, COVER TO CRANKCASE (1 7/8")
    SCREW, COVER TO CRANKCASE (1 7/8")
  • 7
    46933A3 CABLE ASSEMBLY, GROUNG
    CABLE ASSEMBLY, GROUNG
  • 8
    17-20032 DOWEL PIN, CYLINDER BLOCK TO MAIN HEARING
    DOWEL PIN, CYLINDER BLOCK TO MAIN HEARING
  • 9
    17-20323 DOWEL PIN, CENTER MAIN BEARING
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW
    CANADA 7116222 AND BELOW
    DOWEL PIN, CENTER MAIN BEARING
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW
    CANADA 7116222 AND BELOW
  • 10
    16-64936 STUD, CARBURETOR MOUNTING (1 1/4")
    STUD, CARBURETOR MOUNTING (1 1/4")
  • 11
    16-68165 STUD
    CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")
    STUD
    CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")
  • 12
    17-43044 DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
    DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
  • 13
    16-68168 STUD
    CYL. BLOCK TO DRIVE SHAFT HOUSING (3 11/16")
    STUD
    CYL. BLOCK TO DRIVE SHAFT HOUSING (3 11/16")
  • 14
    16-68166 STUD
    CYL. BLOCK TO DRIVE SHAFT HOUSING (2 1/8")
    STUD
    CYL. BLOCK TO DRIVE SHAFT HOUSING (2 1/8")
  • 15
    16-68167 STUD
    CYL. BLOCK TO DRIVE SHAFT HOUSING (1 9/16")
    STUD
    CYL. BLOCK TO DRIVE SHAFT HOUSING (1 9/16")
  • 16
    22-291112 CONNECTOR, TELL TALE-CYLINDER BLOCK
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
    CONNECTOR, TELL TALE-CYLINDER BLOCK
    UNITED STATES 4962055 AND BELOW
    AUSTRALIA 8053229 AND BELOW
    BELGIUM 9195685 AND BELOW
    CANADA 7115572 AND BELOW
  • 16A
    22-782792 ELBOW, TELL TALE-CYLINGER BLOCK
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
    ELBOW, TELL TALE-CYLINGER BLOCK
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
  • 17
    10-55511 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
  • 17
    10-31984 SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/8")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/8")
  • 17
    10-73275 SCREW, CRANKCASE TO CYLINDER BLOCK (2 7/8")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2 7/8")
  • 18
    12-8M0042642 WASHER, CRANKCASE SCREW
    WASHER, CRANKCASE SCREW
  • 19
    10-20359 SCREW, CENTER MAIN BEARING LOCKING (1")
    SCREW, CENTER MAIN BEARING LOCKING (1")
  • 19
    10-98260 SCREW, MAIN BEARING LOCKING (5/8")
    SCREW, MAIN BEARING LOCKING (5/8")
  • 21
    32-8M0108355 TUBE, BALANCE-MAIN BEARING (5 1/2")
    TUBE, BALANCE-MAIN BEARING (5 1/2")
  • 22
    22-996642 ELBOW, BALANCE TUBE TO CYLINDER BLOCK
    ELBOW, BALANCE TUBE TO CYLINDER BLOCK
  • 23
    21-428671 CHECK VALVE, BLEED HOSE (LOWER)
    CHECK VALVE, BLEED HOSE (LOWER)
  • 24
    32-9938779 HOSSE, CYLINDER BLEED (11")
    HOSSE, CYLINDER BLEED (11")
  • 25
    22-56759 CONNECTOR, CYLINDER BLEED HOSE (UPPER)
    CONNECTOR, CYLINDER BLEED HOSE (UPPER)
  • 26
    99156 INDICATOR, TIMING
    ELECTRIC
    INDICATOR, TIMING
    ELECTRIC
  • 27
    10-39349 SCREW, INDICATOR TO CRANKCASE (3/4")
    ELECTRIC
    SCREW, INDICATOR TO CRANKCASE (3/4")
    ELECTRIC
  • 28
    13-26993 LOCKWASHER, INDICATOR SCREW
    ELECTRIC
    LOCKWASHER, INDICATOR SCREW
    ELECTRIC
