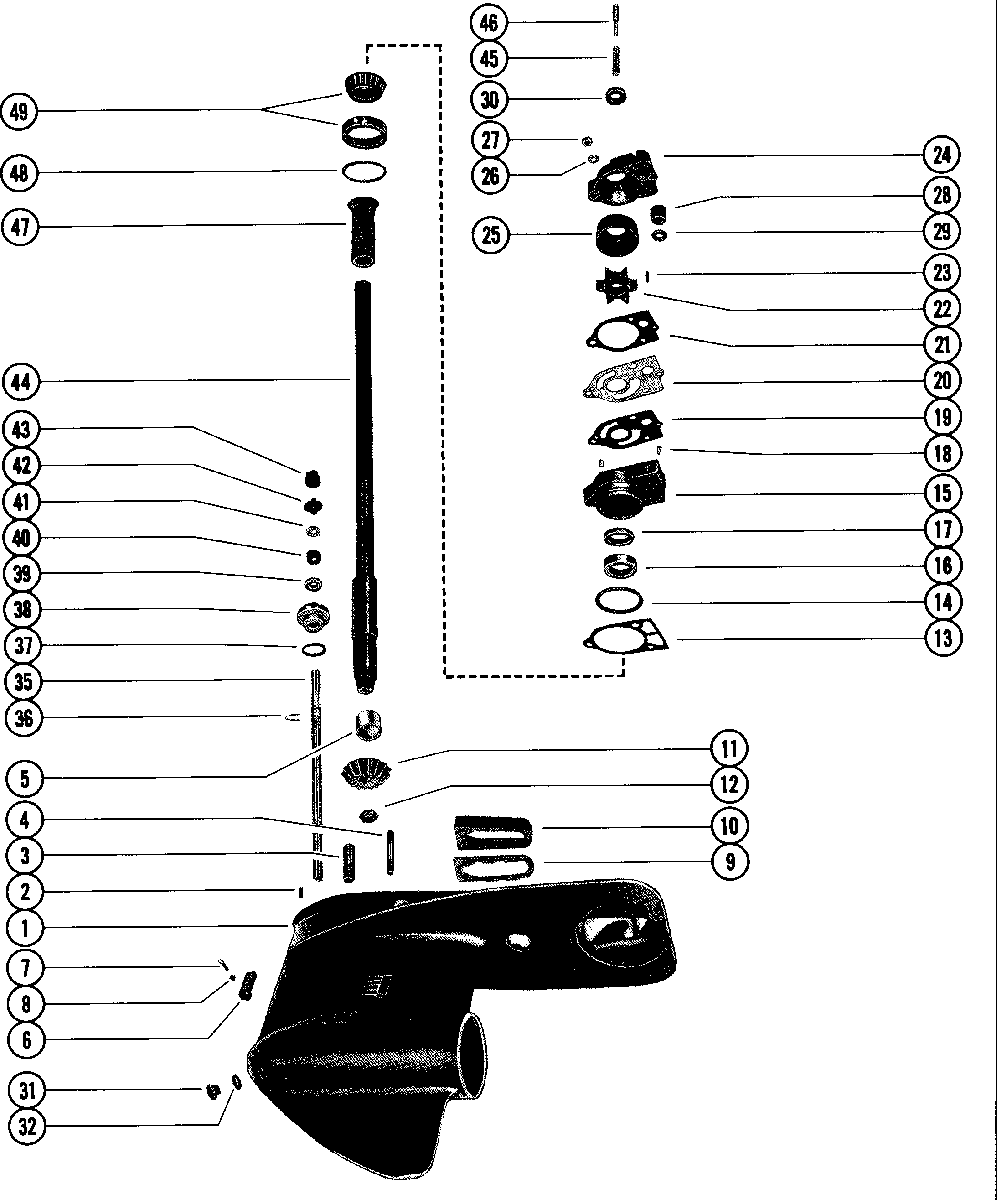

GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP NO. 6)(PAGE 1) для Mercury - 500, 50 9107214 THRU 9248005

  • №
    Артикул
    Название
  • -
    1643-6038A5 GEAR HOUSING ASSEMBLY, COMPLETE
    (SHORT SHAFT)
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
    GEAR HOUSING ASSEMBLY, COMPLETE
    (SHORT SHAFT)
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
  • -
    1643-6038A7 GEAR HOUSING ASSEMBLY, COMPLETE
    (LONG SHAFT)
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
    GEAR HOUSING ASSEMBLY, COMPLETE
    (LONG SHAFT)
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
  • -
    1643-6038A17 GEAR HOUSING ASSEMBLY, COMPLETE
    (SHORT SHAFT)
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
    GEAR HOUSING ASSEMBLY, COMPLETE
    (SHORT SHAFT)
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
  • -
    1643-6038A18 GEAR HOUSING ASSEMBLY, COMPLETE
    (LONG SHAFT)
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
    GEAR HOUSING ASSEMBLY, COMPLETE
    (LONG SHAFT)
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
  • 1
    1643-6038A6 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    17-8M0084726 PIN, DOWEL - GEAR HOUSING
    PIN, DOWEL - GEAR HOUSING
  • 3
    16-33778 STUD
    WATER PUMP BODY/BASE TO GEAR HOUSING (2 5/8")
    STUD
    WATER PUMP BODY/BASE TO GEAR HOUSING (2 5/8")
  • 4
    16-8M0034453 STUD
    GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")
    STUD
    GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")
  • 5
    31-62091T BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 6
    72849A1 SCREEN, WATER INTAKE - STARBOARD
    SCREEN, WATER INTAKE - STARBOARD
  • 6
    72849A1 SCREEN, WATER INTAKE - PORT
    SCREEN, WATER INTAKE - PORT
  • 7
    10-36070 SCREW
    WATER INTAKE SCREEN TO GEAR HOUSING (1 1/4")
    SCREW
    WATER INTAKE SCREEN TO GEAR HOUSING (1 1/4")
  • 8
    11-859124 NUT, WATER INTAKE SCREEN SCREW
    NUT, WATER INTAKE SCREEN SCREW
  • 9
    92815 PLATE, SUPPORT - EXHAUST TUBE SEAL
    PLATE, SUPPORT - EXHAUST TUBE SEAL
  • 10
    37721001 SEAL, EXHAUST TUBE
    SEAL, EXHAUST TUBE
  • 11
    43-55607 GEAR, PINION - DRIVE SHAFT
    GEAR, PINION - DRIVE SHAFT
  • 12
    11-55910 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 13
    27-32771 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 14
    25-26855 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 15
    46-73640T01 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 16
    26-79831 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 17
    26-90562 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 18
    17-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
    DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
  • 19
    27-19553 GASKET
    LOWER - WATER PUMP BASE TO FACE PLATE
    GASKET
    LOWER - WATER PUMP BASE TO FACE PLATE
  • 20
    32768 PLATE FACE
    WATER PUMP BASE TO WATER PUMP BODY
    PLATE FACE
    WATER PUMP BASE TO WATER PUMP BODY
  • 21
    27-19551 GASKET UPPER
    FACE PLATE TO WATER PUMP BODY
    GASKET UPPER
    FACE PLATE TO WATER PUMP BODY
  • 22
    47-89983T IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 23
    28-8M0032837 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 24
    46-77822A1 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 25
    48753 INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 26
    12-29245 WASHER, WATER PUMP BODY AND BASE STUDS
    WASHER, WATER PUMP BODY AND BASE STUDS
  • 27
    11-36069 NUT, WATER PUMP BODY AND BASE STUDS
    NUT, WATER PUMP BODY AND BASE STUDS
  • 28
    26-38452 SEAL, WATER PUMP BODY TO WATER TUBE
    SEAL, WATER PUMP BODY TO WATER TUBE
  • 29
    12-38453 WASHER, CUPPED - WATER TUBE SEAL
    WASHER, CUPPED - WATER TUBE SEAL
  • 30
    25-20273 RING, RUBBER - CENTRIFUGAL SLINGER
    RING, RUBBER - CENTRIFUGAL SLINGER
  • 31
    10-79953Q04 SCREW, GREASE FILLER AND VENT HOLE
    SCREW, GREASE FILLER AND VENT HOLE
  • 32
    12-191833 WASHER, GREASE FILLER AND VENT HOLE SCREW
    WASHER, GREASE FILLER AND VENT HOLE SCREW
  • 35
    69787A1 SHAFT ASSEMBLY, SHIFT - LOWER
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
    SHAFT ASSEMBLY, SHIFT - LOWER
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
  • 35
    76063A1 SHAFT ASSEMBLY, SHIFT - LOWER
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
    SHAFT ASSEMBLY, SHIFT - LOWER
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
  • 36
    53-29641 CLIP, RETAINING - SHIFT SHAFT
    CLIP, RETAINING - SHIFT SHAFT
  • 37
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 38
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 39
    26-24590 OIL SEAL, SHIFT SHAFT BUSING (LOWER)
    OIL SEAL, SHIFT SHAFT BUSING (LOWER)
  • 40
    26-892361 OIL SEAL, SHIFT SHAFT (UPPER)
    OIL SEAL, SHIFT SHAFT (UPPER)
  • 41
    12-31266 WASHER, RUBBER - SHIFT SHAFT BUSHING
    WASHER, RUBBER - SHIFT SHAFT BUSHING
  • 42
    78036 BASE
    LOWER - REVERSE LOCKING - NOT PART OF GEAR HOUSING
    BASE
    LOWER - REVERSE LOCKING - NOT PART OF GEAR HOUSING
  • 43
    69542 CAM, REVERSE LOCKING
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
    CAM, REVERSE LOCKING
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
  • 43
    43308T1 CAM, REVERSE LOCKING
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
    CAM, REVERSE LOCKING
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
  • 44
    45-76089A2 DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
    DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249
    CANADA 7068998 THRU 7088597
  • 44
    45-76088A2 DRIVE SHAFT ASSEMBLY (LONG SHAFT)
    DRIVE SHAFT ASSEMBLY (LONG SHAFT)
  • 44
    45-76089A2 DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
    DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
    UNITED STATES 4576237 AND UP
    AUSTRALIA 8042650 AND UP
    BELGIUM 9136250 AND UP
    CANADA 7088598 AND UP
  • 44
    45-76088A2 DRIVE SHAFT ASSEMBLY (LONG SHAFT)
    DRIVE SHAFT ASSEMBLY (LONG SHAFT)
  • 45
    24-20254 SPRING, COMPRESSION - DRIVE SHAFT
    SPRING, COMPRESSION - DRIVE SHAFT
  • 46
    12-30515 PIN, DRIVE SHAFT
    PIN, DRIVE SHAFT
  • 47
    88181 SLEEVE, LUBRICTAION - DRIVE SHAFT
    SLEEVE, LUBRICTAION - DRIVE SHAFT
  • 48
    15-20929A1 SHIM, BEARING TI GEAR HOUSING (.OO2-3-5-10)
    SHIM, BEARING TI GEAR HOUSING (.OO2-3-5-10)
  • 49
    31-38146A1 ROLLER BEARING ASSEMBLY
    TAPERED - DRIVE SHAFT
    ROLLER BEARING ASSEMBLY
    TAPERED - DRIVE SHAFT
  • -
    46-73640A2 WATER PUMP KIT
    WATER PUMP KIT
  • -
    26-79831A1 SEAL KIT
    SEAL KIT
  • -
    27-72486A32 GASKET SET
    GASKET SET
