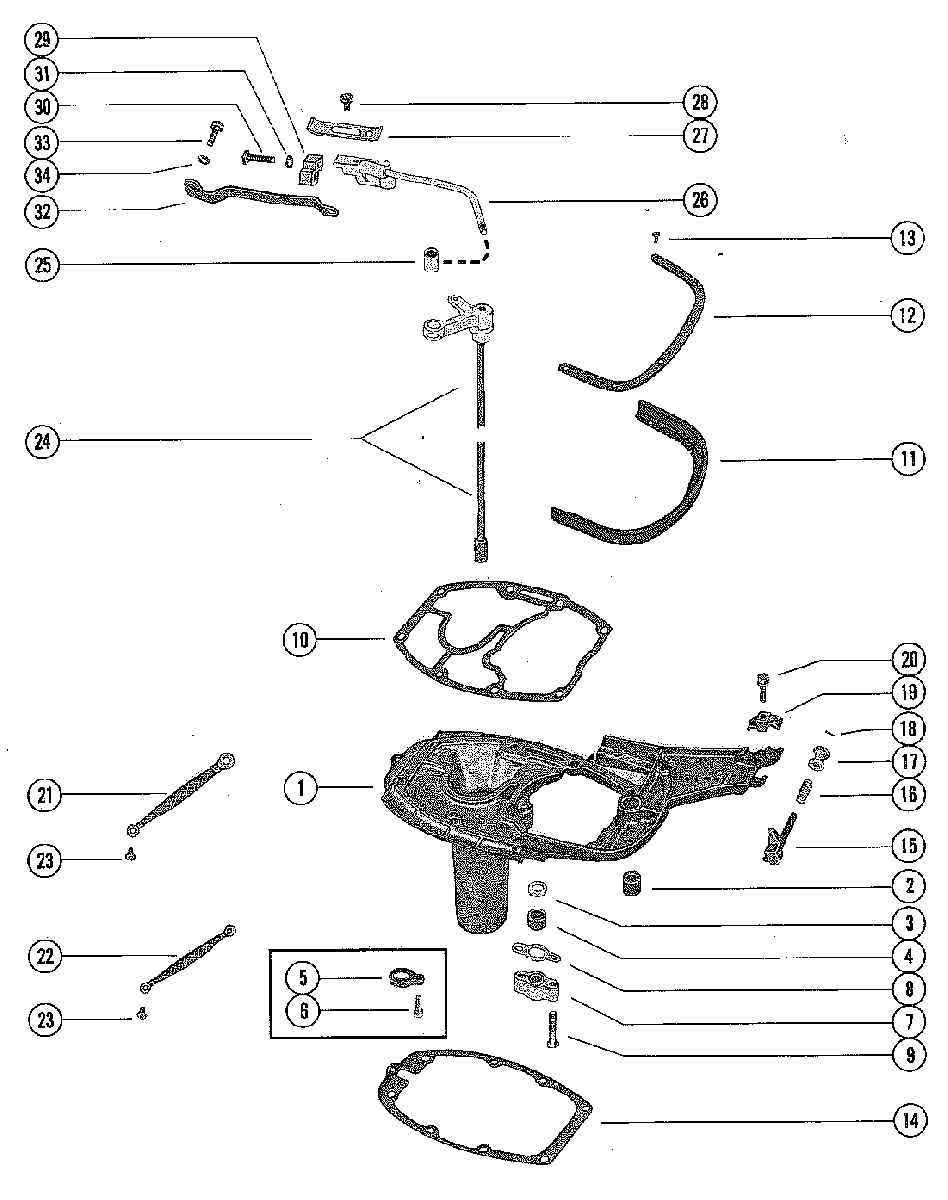

EXHAUST EXTENSION PLATE AND SHIFT LINKAGE для Mercury - 500, 50 9107214 THRU 9248005

  • №
    Артикул
    Название
  • 1
    42819A2 PLATE ASSEMBLY, EXHAUST EXTENSION
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW BELGIUM 9217255 AND BELOW
    CANADA 7116222 AND BELOW
    PLATE ASSEMBLY, EXHAUST EXTENSION
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW BELGIUM 9217255 AND BELOW
    CANADA 7116222 AND BELOW
  • 1
    42819A2 PLATE ASSEMBLY, EXHAUST EXTENSION
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    PLATE ASSEMBLY, EXHAUST EXTENSION
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
  • 2
    23-27132 BUSHING, EXHAUST EXTENSION PLATE
    BUSHING, EXHAUST EXTENSION PLATE
  • 3
    12-38453 WASHER, NYLON-WATER INLET TUBE
    WASHER, NYLON-WATER INLET TUBE
  • 4
    26-38452 SEAL, RUBBER-WATER TUBE
    SEAL, RUBBER-WATER TUBE
  • 5
    38500 RETAINER, WATER TUBE SEAL
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW
    CANADA 7116222 AND BELOW
    RETAINER, WATER TUBE SEAL
    UNITED STATES 5193258 AND BELOW
    AUSTRALIA 8057394 AND BELOW
    BELGIUM 9217255 AND BELOW
    CANADA 7116222 AND BELOW
  • 6
    10-69069 SCREW, RETAINER TO PLATE (3/4")
    SCREW, RETAINER TO PLATE (3/4")
  • 7
    79799 HOUSING, WATER INLET TUBE SEAL
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
    HOUSING, WATER INLET TUBE SEAL
    UNITED STATES 5193259 AND UP
    AUSTRALIA 8057395 AND UP
    BELGIUM 9217256 AND UP
  • 8
    27-797971 GASKET, HOUSING
    GASKET, HOUSING
  • 9
    10-79798 SCREW, HOUSING TO EXHAUST PLATE (1 3/8")
    SCREW, HOUSING TO EXHAUST PLATE (1 3/8")
  • 10
    27-796501 GASKET
    POWERHEAD TO EXHAUST EXTENSION PLATE
    GASKET
    POWERHEAD TO EXHAUST EXTENSION PLATE
  • 11
    38156 SEAL, RUBBER - EHAUST EXTENSION PLATE
    SEAL, RUBBER - EHAUST EXTENSION PLATE
  • 12
    99136 STRIP, RUBBER SEAL RETAINING
    STRIP, RUBBER SEAL RETAINING
  • 13
    10-37571 SCREW
    RETAINING STRIP TO EXHAUST EXTENSION PLATE (1/2")
    SCREW
    RETAINING STRIP TO EXHAUST EXTENSION PLATE (1/2")
  • 14
    27-385011 GASKET
    EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
    GASKET
    EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
  • 15
    59037A2 LEVER, THROTTLE AND SHIFT CABLES
    LEVER, THROTTLE AND SHIFT CABLES
  • 16
    24-38005 SPRING, COMPRESSION - QUICK DISCONNECT LEVER
    SPRING, COMPRESSION - QUICK DISCONNECT LEVER
  • 17
    23-37927 BUSHING, NYLON - QUICK DISCONNECT LEVER
    BUSHING, NYLON - QUICK DISCONNECT LEVER
  • 18
    17-239281 PIN, ROLL - QUICK DISCONNECT LEVER
    PIN, ROLL - QUICK DISCONNECT LEVER
  • 19
    37926 RETAINER
    NYLON BEARING TO EXHAUST EXTENSION PLATE
    RETAINER
    NYLON BEARING TO EXHAUST EXTENSION PLATE
  • 20
    10-37923 SCREW
    RETAINER TO EXHAUST EXTENSION PLATE (1 1/2")
    SCREW
    RETAINER TO EXHAUST EXTENSION PLATE (1 1/2")
  • 21
    46933A1 GROUND STRAP ASSEMBLY
    CRANKCASE TO COWL (3 5/8")
    GROUND STRAP ASSEMBLY
    CRANKCASE TO COWL (3 5/8")
  • 22
    46933A2 GROUND STRAP ASSEMBLY
    HOUSING TO COWL (3 3/8")
    GROUND STRAP ASSEMBLY
    HOUSING TO COWL (3 3/8")
  • 23
    10-62568 SCREW, GROUND STRAP (3/8" SELF TAPPING)
    SCREW, GROUND STRAP (3/8" SELF TAPPING)
  • 24
    75007A1 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249 CANADA 7068998 THRU 7088597
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    UNITED STATES 4357640 THRU 4576236
    AUSTRALIA 8030090 THRU 8042649
    BELGIUM 9107214 THRU 9136249 CANADA 7068998 THRU 7088597
  • 24
    75008A4 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
  • 24
    74923A1 SHIFT SHAFT, UPPER (SHORT SHAFT)
    UNITED STATES 4576237 THRU 4705992
    AUSTRALIA 8042650 THRU 8044724
    BELGIUM 9136250 THRU 9155279
    CANADA 7088598 THRU 7097572
    SHIFT SHAFT, UPPER (SHORT SHAFT)
    UNITED STATES 4576237 THRU 4705992
    AUSTRALIA 8042650 THRU 8044724
    BELGIUM 9136250 THRU 9155279
    CANADA 7088598 THRU 7097572
  • 24
    74923A2 SHIFT ASSEMBLY, UPPER (LONG SHAFT)
    SHIFT ASSEMBLY, UPPER (LONG SHAFT)
  • 24
    76632A3 SHIFT SHAFT ASSMEBLY, UPPER (SHORT SHAFT)
    UNITED STATES 4705993 THRU 4962055 AUSTRALIA 8044725 THRU 8053229
    BELGIUM 9155280 THRU 9195685
    CANADA 7097573 THRU 7115572
    SHIFT SHAFT ASSMEBLY, UPPER (SHORT SHAFT)
    UNITED STATES 4705993 THRU 4962055 AUSTRALIA 8044725 THRU 8053229
    BELGIUM 9155280 THRU 9195685
    CANADA 7097573 THRU 7115572
  • 24
    76632A4 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
  • 24
    76632A3 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    UNITED STATES 4962056 AND UP
    AUSTRALIA 8053230 AND UP
    BELGIUM 9195686 AND UP
    CANADA 7115573 AND UP
  • 24
    76632A4 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
  • 25
    60572 BARREL, NYLON - UPPER SHIFT SHAFT
    BARREL, NYLON - UPPER SHIFT SHAFT
  • 26
    74739A3 ACTUATOR ASSEMBLY, SHIFT CONTROL
    ACTUATOR ASSEMBLY, SHIFT CONTROL
  • 27
    24-37934 SPRING, SHIFT CABLE
    SPRING, SHIFT CABLE
  • 28
    10-38069 SCREW, SPRING TO ACTUATOR
    SCREW, SPRING TO ACTUATOR
  • 29
    37932 BEARING, NYLON - SHIFT CONTROL ACTUATOR
    BEARING, NYLON - SHIFT CONTROL ACTUATOR
  • 30
    10-36137 SCREW
    BEARING TO SHIFT CONTROL ACTUATOR (1")
    SCREW
    BEARING TO SHIFT CONTROL ACTUATOR (1")
  • 31
    13-21272 LOCKWASHER, BEARING SCREW
    LOCKWASHER, BEARING SCREW
  • 32
    37935 RAIL, SHIFT CONTROL BEARING
    RAIL, SHIFT CONTROL BEARING
  • 33
    10-69028 SCREW
    RAIL TO EXHAUST MANIFOLD COVER (3/4")
    SCREW
    RAIL TO EXHAUST MANIFOLD COVER (3/4")
  • 34
    13-26992 LOCKWASHER, RAIL SCREW
    LOCKWASHER, RAIL SCREW
  • -
    27-72486A32 GASKET SET
    GASKET SET
  • -
    27-72486A32 GASKET SET
    GASKET SET
