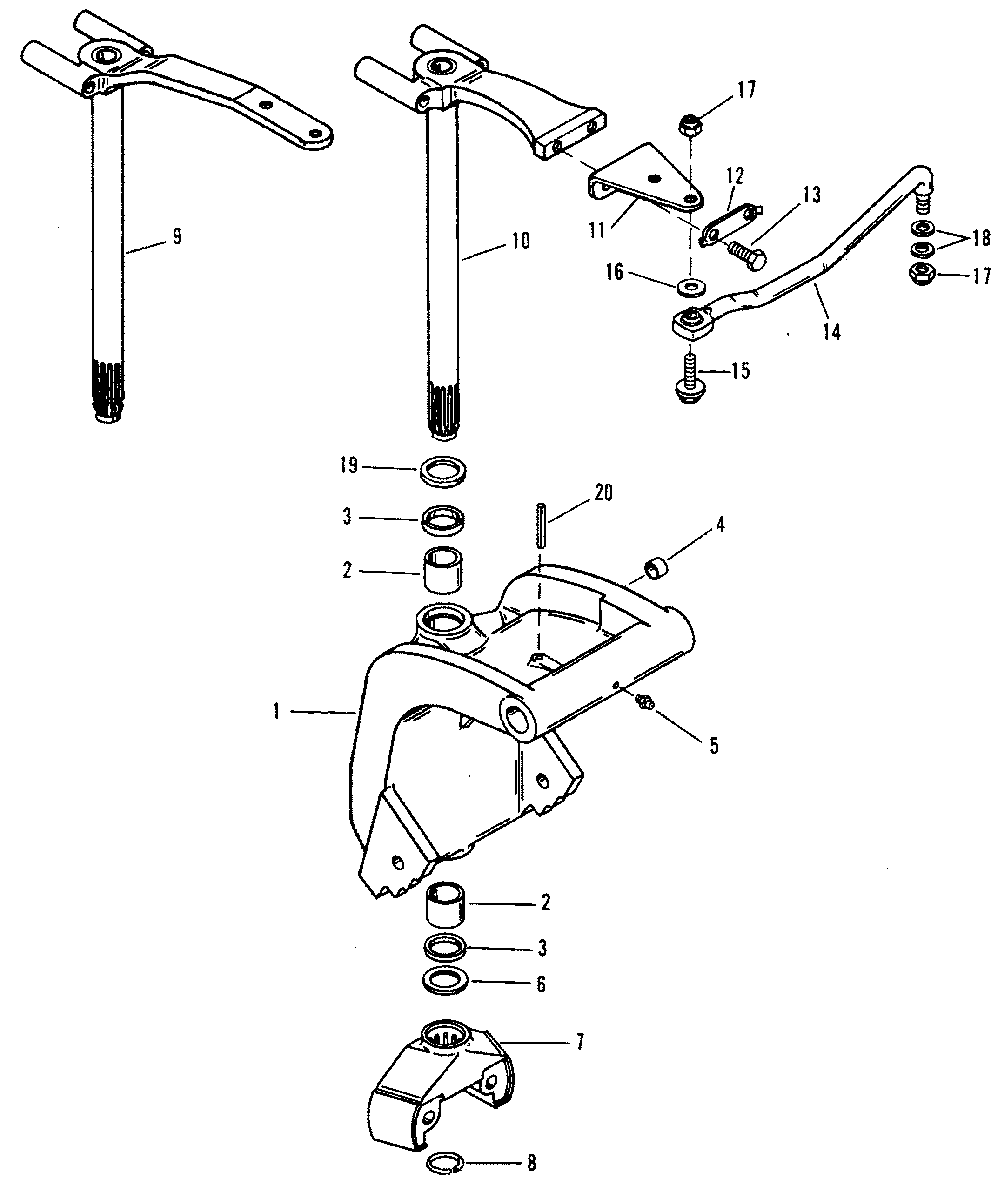

SWIVEL BRACKET (S/N: 0D181999 AND BELOW) для Mercury - 50 (3 CYL.) 9683055 THRU 9885344
-
№АртикулНазвание
-
13511-814690A1 SWIVEL BRACKET (SHORT) (BLACK)SWIVEL BRACKET (SHORT) (BLACK)
-
13511-814690A2 SWIVEL BRACKET(SHORT) (GRAY)SWIVEL BRACKET(SHORT) (GRAY)
-
13511-815556A1 SWIVEL BRACKET (LONG) (BLACK)SWIVEL BRACKET (LONG) (BLACK)
-
13511-815556A2 SWIVEL BRACKET (LONG) (GRAY)SWIVEL BRACKET (LONG) (GRAY)
-
223-821124 BEARINGBEARING
-
326-32911 OIL SEALOIL SEAL
-
423-19606 BEARINGBEARING
-
522-74036 GREASE FITTINGGREASE FITTING
-
612-52865 WASHERWASHER
-
719654T1 BOTTOM YOKE (BLACK)BOTTOM YOKE (BLACK)
-
719654T1 BOTTOM YOKE (GRAY)BOTTOM YOKE (GRAY)
-
853-77415 RETAINING RINGRETAINING RING
-
9NLA SWIVEL PIN (BLACK-REPLACED BY 2 PIECE REF #10)
1 PIECESWIVEL PIN (BLACK-REPLACED BY 2 PIECE REF #10)
1 PIECE -
9NLA SWIVEL PIN (GRAY-REPLACED BY 2 PIECE REF #10)
1 PIECESWIVEL PIN (GRAY-REPLACED BY 2 PIECE REF #10)
1 PIECE -
1017-812897A19 SWIVEL PIN (SHORT) (BLACK)SWIVEL PIN (SHORT) (BLACK)
-
1017-812897A19 SWIVEL PIN (SHORT) (GRAY)SWIVEL PIN (SHORT) (GRAY)
-
1017-812896A22 SWIVEL PIN (BLACK)
(2 PIECE - LONG)SWIVEL PIN (BLACK)
(2 PIECE - LONG) -
1017-812896A23 SWIVEL PIN (GRAY)
(2 PIECE - LONG)SWIVEL PIN (GRAY)
(2 PIECE - LONG) -
11893696 BRACKET (BLACK)
(50/60)BRACKET (BLACK)
(50/60) -
11893696 BRACKET (GRAY)
(50/60)BRACKET (GRAY)
(50/60) -
1214-8M0009820 STRAP
(50/60)STRAP
(50/60) -
1310-4000377 SCREW
(50/60)SCREW
(50/60) -
1419608A14 LINK ROD (STARBOARD)
(50/60)LINK ROD (STARBOARD)
(50/60) -
1419609A6 LINK ROD (PORT)
(50/60)LINK ROD (PORT)
(50/60) -
1510-856680 SCREW
(50/60)SCREW
(50/60) -
1612-8M0109680 WASHER
(50/60)WASHER
(50/60) -
1711-8M0042636 NUT
(50/60)NUT
(50/60) -
1812-34931 WASHER
(50/60)WASHER
(50/60) -
1912-52865 WASHERWASHER
-
2017-823876 ROLL PIN
(55)ROLL PIN
(55)
