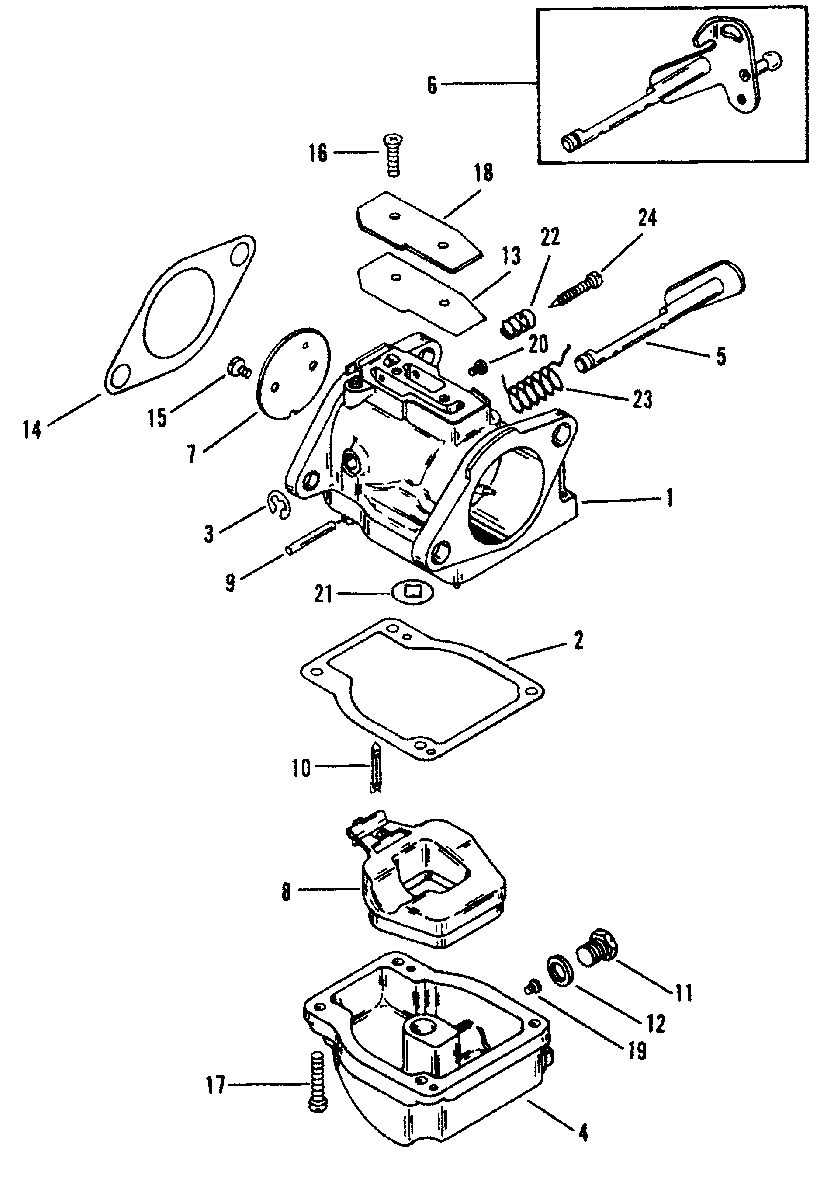

CARBURETOR (WME-22/22B/23/24/35) для Mercury - 50 (3 CYL.) 9683055 THRU 9885344
-
№АртикулНазвание
-
13301-815406A1 CARBURETOR (TOP)
50 - WME-23CARBURETOR (TOP)
50 - WME-23 -
13301-815406A2 CARBURETOR (CENTER)
50 - WME-23CARBURETOR (CENTER)
50 - WME-23 -
13301-815406A3 CARBURETOR (BOTTOM)
50 - WME-23CARBURETOR (BOTTOM)
50 - WME-23 -
13301-821946A45 CARBURETOR (TOP)
55 - WME-23CARBURETOR (TOP)
55 - WME-23 -
13301-821946A46 CARBURETOR (CENTER)
55 - WME-23CARBURETOR (CENTER)
55 - WME-23 -
13301-821946A47 CARBURETOR (BOTTOM)
55 - WME-23CARBURETOR (BOTTOM)
55 - WME-23 -
13301-815405A4 CARBURETOR (TOP)
60 - WME-22BCARBURETOR (TOP)
60 - WME-22B -
13301-815405A5 CARBURETOR (CENTER)
60 - WME-22BCARBURETOR (CENTER)
60 - WME-22B -
13301-815405A6 CARBURETOR (BOTTOM)
60 - WME-22BCARBURETOR (BOTTOM)
60 - WME-22B -
2NSS GASKET, FUEL BOWLGASKET, FUEL BOWL
-
3NSS RETAINING RINGRETAINING RING
-
41395-811695 FUEL BOWL (UPPER)
WME-22/23FUEL BOWL (UPPER)
WME-22/23 -
41395-811693 FUEL BOWL (CENTER/BOTTOM)
WME-22/23FUEL BOWL (CENTER/BOTTOM)
WME-22/23 -
41395-811695 FUEL BOWL (UPPER)
WME-22B/24/35FUEL BOWL (UPPER)
WME-22B/24/35 -
41395-811693 FUEL BOWL (CENTER/BOTTOM)
WME-22B/24/35FUEL BOWL (CENTER/BOTTOM)
WME-22B/24/35 -
51395-811218 THROTTLE SHAFT (UPPER/BOTTOM)THROTTLE SHAFT (UPPER/BOTTOM)
-
61395-811219 THROTTLE SHAFT (CENTER)THROTTLE SHAFT (CENTER)
-
71395-811216 THROTTLE VALVE
WME-22/23/24THROTTLE VALVE
WME-22/23/24 -
71395-9593 THROTTLE VALVE
WME-22B/35THROTTLE VALVE
WME-22B/35 -
81395-9594 FLOATFLOAT
-
9NSS FLOAT SHAFTFLOAT SHAFT
-
101395-879194011 INLET NEEDLE VALVEINLET NEEDLE VALVE
-
111395-811694 PLUG
WME -22/23PLUG
WME -22/23 -
111395-811694 PLUG KIT
WME-22B/24/35PLUG KIT
WME-22B/24/35 -
12NSS GASKET, PLUGGASKET, PLUG
-
13NSS GASKET, COVER PLATEGASKET, COVER PLATE
-
1427-8144461 GASKET, FLANGEGASKET, FLANGE
-
15NSS SCREW, THROTTLE VALVESCREW, THROTTLE VALVE
-
161395-811220 SCREW, COVER PLATESCREW, COVER PLATE
-
171395-808612 SCREW, FUEL BOWLSCREW, FUEL BOWL
-
181395-811221 COVER PLATECOVER PLATE
-
191395-6359 MAIN FUEL JET (.052 - 50)MAIN FUEL JET (.052 - 50)
-
191395-6029 MAIN FUEL JET (.068 - 55/60)MAIN FUEL JET (.068 - 55/60)
-
191395-6030 MAIN FUEL JET (.070 - 60)MAIN FUEL JET (.070 - 60)
-
201395-6247 VENT JET (.090)
(NOT USED ON WME-35)VENT JET (.090)
(NOT USED ON WME-35) -
21NSS GASKETGASKET
-
22NSS SPRINGSPRING
-
23NSS SPRINGSPRING
-
24NSS IDLE NEEDLEIDLE NEEDLE
-
-27-812867A97 ENGINE GASKET SETENGINE GASKET SET
-
-1395-8236354 CARB REPAIR KITCARB REPAIR KIT
-
-1395-8112231 CARB GASKET KITCARB GASKET KIT
