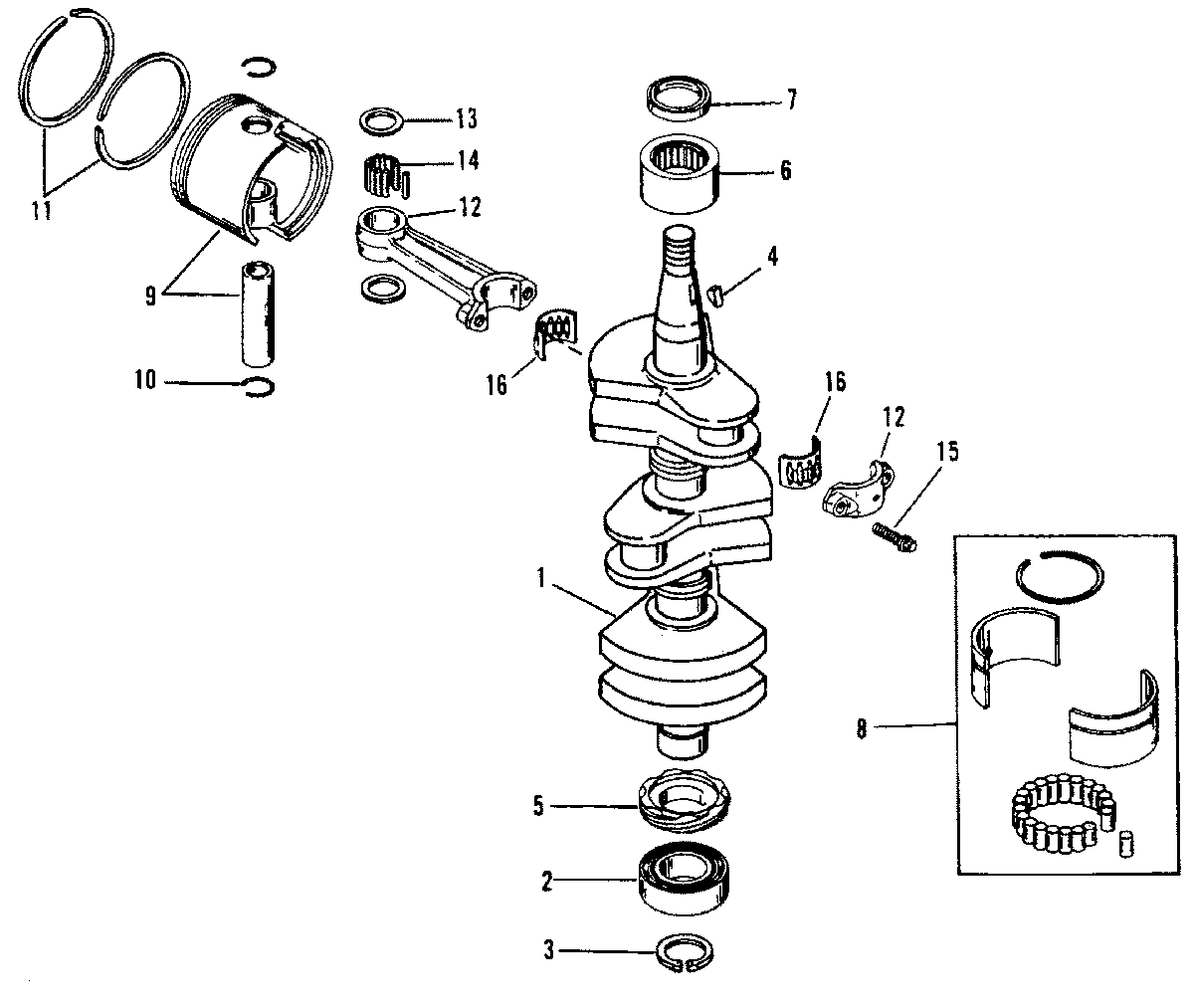

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 50 (3 CYL.) 9683055 THRU 9885344

  • №
    Артикул
    Название
  • 1
    478-9611T1 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-63742T BALL BEARING
    BALL BEARING
  • 3
    53-812877 RETAINING RING
    RETAINING RING
  • 4
    28-91800 KEY
    KEY
  • 5
    43-43019A2 DRIVER GEAR
    DRIVER GEAR
  • 6
    31-812873A1 ROLLER BEARING ASSEMBLY (TOP)
    ROLLER BEARING ASSEMBLY (TOP)
  • 7
    26-419531 OIL SEAL
    OIL SEAL
  • 8
    812881A1 ROLLER BEARING ASSEMBLY (CENTER)
    ROLLER BEARING ASSEMBLY (CENTER)
  • 9
    783-9613T1 PISTON ASSEMBLY (STANDARD)
    PISTON ASSEMBLY (STANDARD)
  • 9
    783-9613T2 PISTON ASSEMBLY (.015 O.S.)
    PISTON ASSEMBLY (.015 O.S.)
  • 9
    783-9613T3 PISTON ASSEMBLY (.030 O.S.)
    PISTON ASSEMBLY (.030 O.S.)
  • 10
    53-857196 LOCK RING
    LOCK RING
  • 11
    39-19721A6 PISTON RING (STANDARD)
    PISTON RING (STANDARD)
  • 11
    39-19721A1 PISTON RING (.015 O.S.)
    PISTON RING (.015 O.S.)
  • 11
    39-19721A2 PISTON RING (.030 O.S.)
    PISTON RING (.030 O.S.)
  • 12
    640-9612A6 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 13
    12-8M0012298 WASHER
    WASHER
  • 14
    29-47270 NEEDLE BEARING
    NEEDLE BEARING
  • 15
    10-91012 SCREW
    SCREW
  • 16
    31-8M0045428 ROLLER BEARING
    ROLLER BEARING
  • -
    811208T91 POWERHEAD ASSEMBLY COMPLETE (50)
    (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
    POWERHEAD ASSEMBLY COMPLETE (50)
    (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
  • -
    821744T92 POWERHEAD ASSEMBLY COMPLETE (55)
    (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
    POWERHEAD ASSEMBLY COMPLETE (55)
    (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
  • -
    811209T91 POWERHEAD ASSEMBLY COMPLETE (60)
    (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
    POWERHEAD ASSEMBLY COMPLETE (60)
    (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
  • -
    811209T93 POWERHEAD (ALL)
    (S/N 0D182000 & UP) (POWERHEAD INCLUDES 0.008 REED)
    POWERHEAD (ALL)
    (S/N 0D182000 & UP) (POWERHEAD INCLUDES 0.008 REED)
