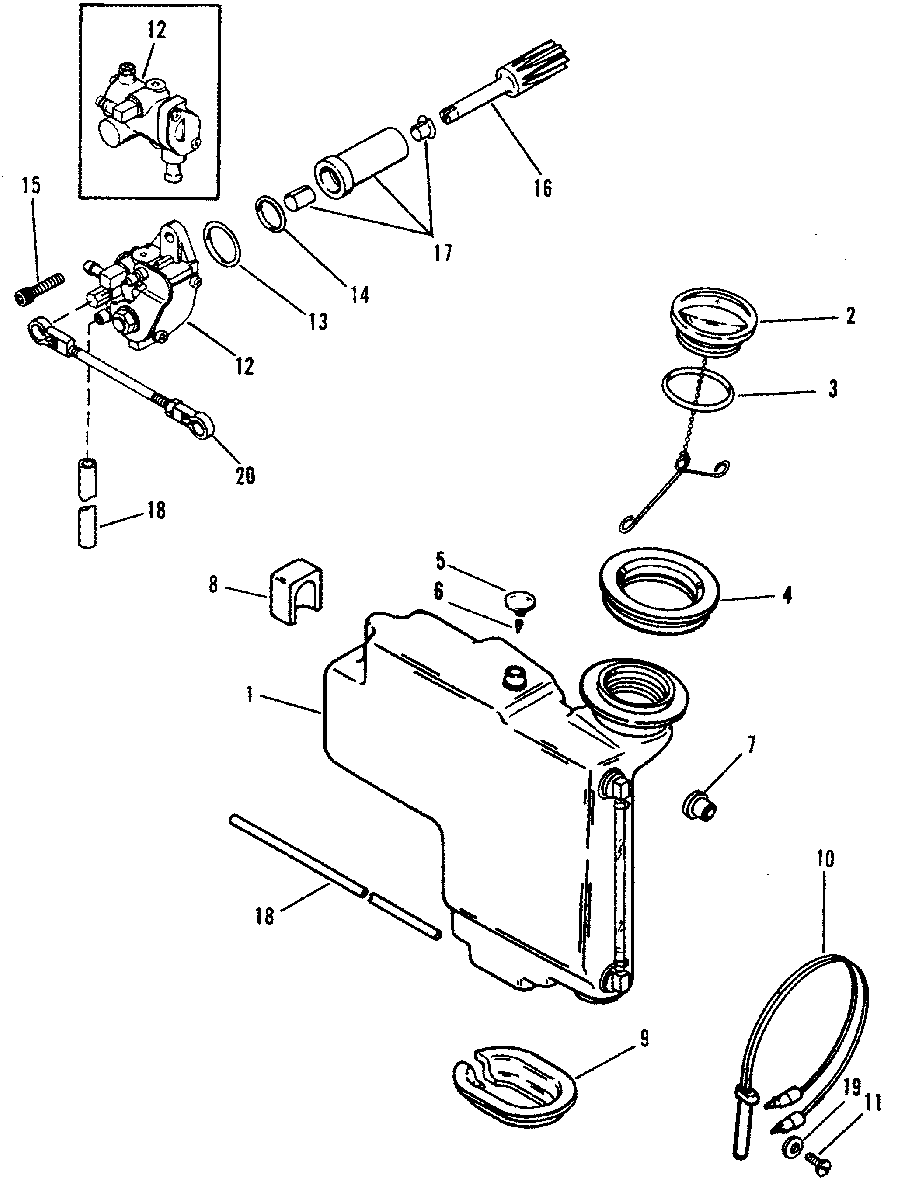

OIL INJECTION COMPONENTS для Mercury - 50 (3 CYL.) 9683055 THRU 9885344

  • №
    Артикул
    Название
  • 1
    1263-812718T1 OIL TANK
    (DESIGN I USE WITH REF. #3)
    OIL TANK
    (DESIGN I USE WITH REF. #3)
  • 2
    36-19070A2 CAP ASSEMBLY
    (DESIGN I USE WITH REF. #3)
    CAP ASSEMBLY
    (DESIGN I USE WITH REF. #3)
  • 3
    25-90186 O-RING
    (DESIGN I USE WITH REF. #3)
    O-RING
    (DESIGN I USE WITH REF. #3)
  • 4
    8160661 SEAL
    (DESIGN I USE WITH REF. #3)
    SEAL
    (DESIGN I USE WITH REF. #3)
  • 1
    1263-812718T1 OIL TANK KIT
    (DESIGN II USE WITHOUT REF. #3)
    OIL TANK KIT
    (DESIGN II USE WITHOUT REF. #3)
  • 2
    36-828765A2 CAP ASSY.
    (DESIGN II USE WITHOUT REF. #3)
    CAP ASSY.
    (DESIGN II USE WITHOUT REF. #3)
  • 4
    8M0039080 SEAL
    (DESIGN II USE WITHOUT REF. #3)
    SEAL
    (DESIGN II USE WITHOUT REF. #3)
  • 5
    19299A1 VENT
    VENT
  • 6
    21-64871 VALVE
    VALVE
  • 7
    25-813644 GROMMET
    GROMMET
  • 8
    813649 BOOT
    BOOT
  • 9
    8M0039085 BOOT
    BOOT
  • 10
    87-12886A6 SWITCH
    SWITCH
  • 11
    10-58376 SCREW
    SCREW
  • 12
    812690A1 OIL INJECTION PUMP
    SERIAL (#0D181999 & BELOW)
    OIL INJECTION PUMP
    SERIAL (#0D181999 & BELOW)
  • 12
    818902A1 OIL INJECTION PUMP
    SERIAL (#0D182000 & UP)
    OIL INJECTION PUMP
    SERIAL (#0D182000 & UP)
  • 13
    25-62705 O-RING
    O-RING
  • 14
    25-36390 O-RING
    O-RING
  • 15
    10-40011108 SCREW
    SCREW
  • 16
    43-19277 DRIVEN GEAR
    DRIVEN GEAR
  • 17
    23-19278A2 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 18
    32-82381335 HOSE
    HOSE
  • 19
    12-72761 WASHER
    WASHER
  • 20
    821287 LINK
    SERIAL (#0D182000 & UP)
    LINK
    SERIAL (#0D182000 & UP)
