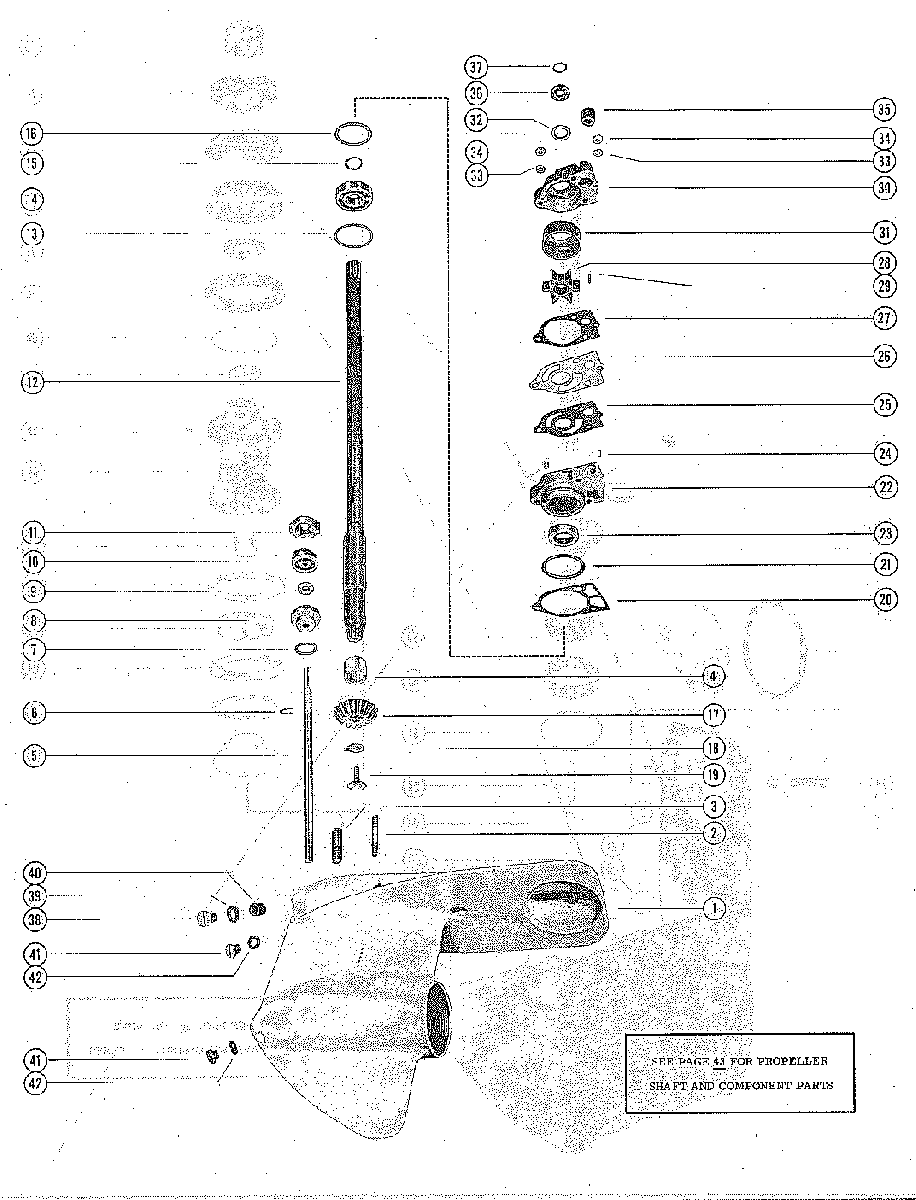

GEAR HOUSING ASSEMBLY, COMPLETE(MERC 500M-2 & 500E-2) (P. 1) для Mercury - 450 (4 CYL.) 1476510 THRU 1531568

  • №
    Артикул
    Название
  • -
    1626-2040A3 GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD) -SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD) -SEE NOTE BELOW
  • 1
    1626-2040A1 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    16-32027 STUD,WATER PUMP BODY AND BASE TO GEAR HOUSING
    STUD,WATER PUMP BODY AND BASE TO GEAR HOUSING
  • 3
    16-32017 STUD,GEAR HOUSING TO DRIVE SHAFT HOUSING
    STUD,GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 4
    31-62091T BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 5
    56622A1 SHAFT,SHIFT - LOWER
    SHAFT,SHIFT - LOWER
  • 6
    53-29641 CLIP,RETAINING - SHIFT SHAFT
    CLIP,RETAINING - SHIFT SHAFT
  • 7
    25-25439 "O"RING,SHIFT SHAFT BUSHING
    "O"RING,SHIFT SHAFT BUSHING
  • 8
    23-46284A1 BUSHING ASSEMBLY,SHIFT SHAFT
    BUSHING ASSEMBLY,SHIFT SHAFT
  • 9
    26-892361 OIL SEAL,SHIFT SHAF BUSHING
    OIL SEAL,SHIFT SHAF BUSHING
  • 10
    52918 CAM,LOWER - REVERSE LOCKING
    CAM,LOWER - REVERSE LOCKING
  • 11
    52919 CAM,UPPER - REVERSE LOCKING
    CAM,UPPER - REVERSE LOCKING
  • 12
    45-38466 DRIVE SHAFT(STANDARD)
    DRIVE SHAFT(STANDARD)
  • 13
    15-20929A1 SHIM,BEARING TO GEAR HOUSING
    SHIM,BEARING TO GEAR HOUSING
  • 14
    30-72961 BEARING,BALL - DRIVE SHAFT
    BEARING,BALL - DRIVE SHAFT
  • 15
    53-29116 RING,SNAP - BALL BEARING RETAINING
    RING,SNAP - BALL BEARING RETAINING
  • 16
    15-20929A1 SHIM,BEARING TO WATER PUMP BASE
    SHIM,BEARING TO WATER PUMP BASE
  • 17
    43-20834 GEAR,PINION - DRIVE SHAFT
    GEAR,PINION - DRIVE SHAFT
  • 18
    14-29163 TAB WATER,PINION GEAR FASTENING SCREW
    TAB WATER,PINION GEAR FASTENING SCREW
  • 19
    10-20925 SCREW, PINION GEAR TO DRIVE SHAFT
    SCREW, PINION GEAR TO DRIVE SHAFT
  • 20
    27-32771 GASKET,WATER PUMP BASE TO GEAR HOUSING
    GASKET,WATER PUMP BASE TO GEAR HOUSING
  • 21
    25-26855 "O"RING,WATER PUMP BASE
    "O"RING,WATER PUMP BASE
  • 22
    46-39531A1 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 23
    26-90562 OIL SEAL,WATER PUMP BASE
    OIL SEAL,WATER PUMP BASE
  • 24
    17-29596T DOWEL PIN,WATER PUMP BASE TO WATER PUMP BODY
    DOWEL PIN,WATER PUMP BASE TO WATER PUMP BODY
  • 25
    27-19553 GASKET,LOWER - WATER PUMP BASE TO FACE PLATE
    GASKET,LOWER - WATER PUMP BASE TO FACE PLATE
  • 26
    32768 PLATE,FACE - WATER PUMP BASE TO WATER PUMP BODY
    PLATE,FACE - WATER PUMP BASE TO WATER PUMP BODY
  • 27
    27-19551 GASKET,UPPER - FACE PLATE TO WATER PUMP BODY
    GASKET,UPPER - FACE PLATE TO WATER PUMP BODY
  • 28
    47-89983T IMPELLER,WATER PUMP
    IMPELLER,WATER PUMP
  • 29
    28-8M0032837 PIN,IMPELLER DRIVE
    PIN,IMPELLER DRIVE
  • 30
    46-60366Q1 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 31
    32001 INSERT,WATER PUMP BODY
    INSERT,WATER PUMP BODY
  • 32
    26-32121 OIL SEAL,WATER PUMP BODY
    OIL SEAL,WATER PUMP BODY
  • 33
    13-26992 LOCKWASHER,WATER PUMP BODY AND BASE STUDS
    LOCKWASHER,WATER PUMP BODY AND BASE STUDS
  • 34
    11-29598 NUT,WATER PUMP BODY AND BASE FASTENING STUDS
    NUT,WATER PUMP BODY AND BASE FASTENING STUDS
  • 35
    26-25192 SEAL,WATER PUMP BODY TO WATER INLET TUBE
    SEAL,WATER PUMP BODY TO WATER INLET TUBE
  • 36
    25-20273 RING,RUBBER - CENTRIFUGAL SLINGER(DRIVE SHAFT)
    RING,RUBBER - CENTRIFUGAL SLINGER(DRIVE SHAFT)
  • 37
    25-29619 "O"RING,UPPER - DRIVE SHAFT
    "O"RING,UPPER - DRIVE SHAFT
  • 38
    10-29608 SCREW,GEAR HOUSING FLUSHING HOLE
    SCREW,GEAR HOUSING FLUSHING HOLE
  • 39
    27-29586 GASKET,GEAR HOUSING FLUSHING HOLE SCREW
    GASKET,GEAR HOUSING FLUSHING HOLE SCREW
  • 40
    26-29612 SEAL,GEAR HOUSING FLUSHING HOLE
    SEAL,GEAR HOUSING FLUSHING HOLE
  • 41
    10-79953Q04 SCREW,GREASE FILLER AND VENT HOLE
    SCREW,GREASE FILLER AND VENT HOLE
  • 42
    12-191833 WASHER,GREASE FILLER AND VENT HOLE SCREW
    WASHER,GREASE FILLER AND VENT HOLE SCREW
