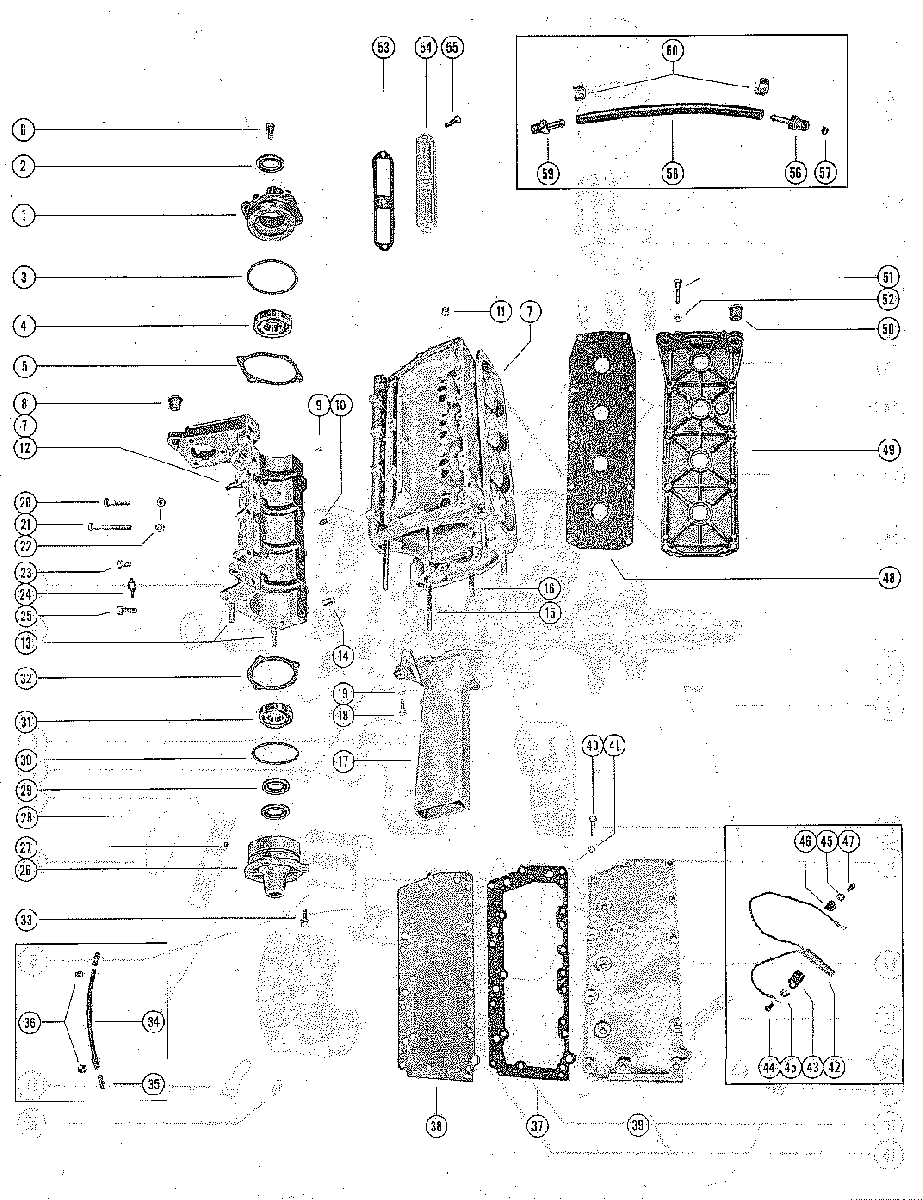

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 450 (4 CYL.) 1476510 THRU 1531568

№

Артикул

Название
1

1100-339A1 END CAP ASSEMBLY, UPPER

END CAP ASSEMBLY, UPPER
2

26-41953 OIL SEAL

OIL SEAL
3

25-20081 "O" RING, UPPER END CAP

"O" RING, UPPER END CAP
4

30-63742T BALL BEARING, UPPER END CAP

BALL BEARING, UPPER END CAP
5

15-20082 SHIM, UPPER END CAP TO CRANKCASE AND BLOCK (.002-3-5-10)

SHIM, UPPER END CAP TO CRANKCASE AND BLOCK (.002-3-5-10)
6

10-29198 SCREW, UPPER END CAP MOUNTING

SCREW, UPPER END CAP MOUNTING
7

831-2414A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

CYLINDER BLOCK AND CRANKCASE ASSEMBLY
7

831-2414A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

CYLINDER BLOCK AND CRANKCASE ASSEMBLY
8

23-26348 BUSHING, CRANKCASE

BUSHING, CRANKCASE
9

17-20032 DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING

DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
10

17-20323 DOWEL PIN, CYLINDER BLOCK TO CENTER MAIN BEARING

DOWEL PIN, CYLINDER BLOCK TO CENTER MAIN BEARING
11

22-328022 PLUG, PIPE - WATER PRESSURE AND BALANCE TUBE HOLES

PLUG, PIPE - WATER PRESSURE AND BALANCE TUBE HOLES
12

16-21831 STUD, CARBURETOR MOUNTING (1 1/4")

STUD, CARBURETOR MOUNTING (1 1/4")
13

16-33111 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")

STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")
14

17-43044 DOWEL PIN, CRANKCASE TO CYLINDER BLOCK

DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
15

16-8M0034463 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 7/16")

STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 7/16")
16

16-29989 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 15/16")

STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 15/16")
17

36157 EXTENSION, EXHAUST - CYLINDER BLOCK

EXTENSION, EXHAUST - CYLINDER BLOCK
18

10-31096 SCREW, EXHAUST EXTENSION TO CYLINDER BLOCK

SCREW, EXHAUST EXTENSION TO CYLINDER BLOCK
18

10-31096 SCREW, EXHAUST EXTENSION TO CYLINDER BLOCK

SCREW, EXHAUST EXTENSION TO CYLINDER BLOCK
18

10-32079 SCREW, EXHAUST EXTENSION TO CYLINDER BLOCK

SCREW, EXHAUST EXTENSION TO CYLINDER BLOCK
18

10-32079 SCREW, EXHAUST EXTENSION TO CYLINDER BLOCK

SCREW, EXHAUST EXTENSION TO CYLINDER BLOCK
19

12-20028 WASHER, EXHAUST EXTENSION FASTENING SCREW

WASHER, EXHAUST EXTENSION FASTENING SCREW
20

10-78841 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")

SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
21

10-22039 SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")

SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")
22

11-29250 NUT, CRANKCASE FASTENING SCREW

NUT, CRANKCASE FASTENING SCREW
23

10-20089 SCREW, MAIN BEARING LOCKING

SCREW, MAIN BEARING LOCKING
23

10-98260 SCREW, MAIN BEARING LOCKING

SCREW, MAIN BEARING LOCKING
24

14-20091 TAB WASHER, BEARING LOCKING SCREW

TAB WASHER, BEARING LOCKING SCREW
25

10-20359 SCREW, CENTER MAIN BEARING LOCKING

SCREW, CENTER MAIN BEARING LOCKING
26

1102-4181A3 END CAP ASSEMBLY, LOWER

END CAP ASSEMBLY, LOWER
27

21-28481A1 CHECK VALVE ASSEMBLY, LOWER END CAP

CHECK VALVE ASSEMBLY, LOWER END CAP
28

26-29477 OIL SEAL, LOWER

OIL SEAL, LOWER
29

26-41953 OIL SEAL, UPPER

OIL SEAL, UPPER
30

25-20081 "O" RING, LOWER END CAP

"O" RING, LOWER END CAP
31

30-63742T BALL BEARING, LOWER END CAP

BALL BEARING, LOWER END CAP
32

15-20085 SHIM, LOWER END CAP TO CRANKCASE AND BLOCK (.002-3-5-10)

SHIM, LOWER END CAP TO CRANKCASE AND BLOCK (.002-3-5-10)
33

10-29198 SCREW. LOWER END CAP MOUNTING

SCREW. LOWER END CAP MOUNTING
34

32-8M0108355 TUBE, BALANCE - MAIN BEARING

TUBE, BALANCE - MAIN BEARING
35

22-291112 CONNECTOR, BALANCE TUBE TO CYLINDER BLOCK

CONNECTOR, BALANCE TUBE TO CYLINDER BLOCK
36

54-20386 CLAMP, BALANCE TUBE TO CONNECTORS

CLAMP, BALANCE TUBE TO CONNECTORS
37

27-26923 GASKET, CYLINDER BLOCK TO MANIFOLD PLATE

GASKET, CYLINDER BLOCK TO MANIFOLD PLATE
38

26922 PLATE, EXHAUST MANIFOLD

PLATE, EXHAUST MANIFOLD
37

27-26923 GASKET, EXHAUST PLATE TO EXHAUST COVER

GASKET, EXHAUST PLATE TO EXHAUST COVER
39

28240 COVER, EXHAUST MANIFOLD

COVER, EXHAUST MANIFOLD
40

10-28668 SCREW, MANIFOLD COVER TO CYLINDER BLOCK

SCREW, MANIFOLD COVER TO CYLINDER BLOCK
40

10-28666 SCREW, MAINFOLD COVER AND HIGH TENSION LEAD MOUNTING

SCREW, MAINFOLD COVER AND HIGH TENSION LEAD MOUNTING
41

12-20028 WASHER, MANIFOLD COVER AND HIGH TENSION LEAD CLIP SCREWS

WASHER, MANIFOLD COVER AND HIGH TENSION LEAD CLIP SCREWS
42

58124A1 SWITCH, MERCURY - EXHAUST MANIFOLD COVER

SWITCH, MERCURY - EXHAUST MANIFOLD COVER
43

54-22875 CLAMP, MERCURY SWITCH TO MANIFOLD COVER

CLAMP, MERCURY SWITCH TO MANIFOLD COVER
44

10-20401 SCREW, MERCURY SWITCH CLAMP FASTENING

SCREW, MERCURY SWITCH CLAMP FASTENING
45

8M0084613 "D" WASHER, CLAMP AND CLIP FASTENING SCREW

"D" WASHER, CLAMP AND CLIP FASTENING SCREW
46

54-25231 CLIP, MERCURY SWITCH LEAD WIRE TO MAGNETO

CLIP, MERCURY SWITCH LEAD WIRE TO MAGNETO
47

10-20401 SCREW, LEAD WIRE CLIP FASTENING

SCREW, LEAD WIRE CLIP FASTENING
48

27-22333 GASKET, CYLINDER BLOCK COVER

GASKET, CYLINDER BLOCK COVER
49

1000-1A1 CYLINDER BLOCK CCOVER ASSEMBLY

CYLINDER BLOCK CCOVER ASSEMBLY
50

23-26348 BUSHING, CYLINDER BLOCK COVER

BUSHING, CYLINDER BLOCK COVER
50

23-26348 BUSHING, CYLINDER BLOCK COVER

BUSHING, CYLINDER BLOCK COVER
51

10-20653 SCREW, CYLINDER BLOCK COVER MOUNTING

SCREW, CYLINDER BLOCK COVER MOUNTING
52

11-24652 NUT, COVER MOUNTING SCREW

NUT, COVER MOUNTING SCREW
53

27-279361 GASKET, TRANSFER PORT COVER

GASKET, TRANSFER PORT COVER
54

27935 COVER, TRANSFER PORT

COVER, TRANSFER PORT
55

10-20540 SCREW, TRANSFER PORT COVER MOUNTING

SCREW, TRANSFER PORT COVER MOUNTING
56

22-62365A1 CHECK VALVE ASSEMBLY, BLLD HOSE (UPPER)

CHECK VALVE ASSEMBLY, BLLD HOSE (UPPER)
57

21-28481A1 CHECK VALVE ASSEMBLY, BLLED HOSE VALVE

CHECK VALVE ASSEMBLY, BLLED HOSE VALVE
58

32-9912688 HOSE, CYLINDER BLEED (6 1/2")

HOSE, CYLINDER BLEED (6 1/2")
59

22-67902 CONNECTOR, CYLINDER BLEED HOSE (LOWER)

CONNECTOR, CYLINDER BLEED HOSE (LOWER)
60

54-20387 CLAMP, BLEED HOSE TO CHECK VALVE AND CONNECTOR

CLAMP, BLEED HOSE TO CHECK VALVE AND CONNECTOR
