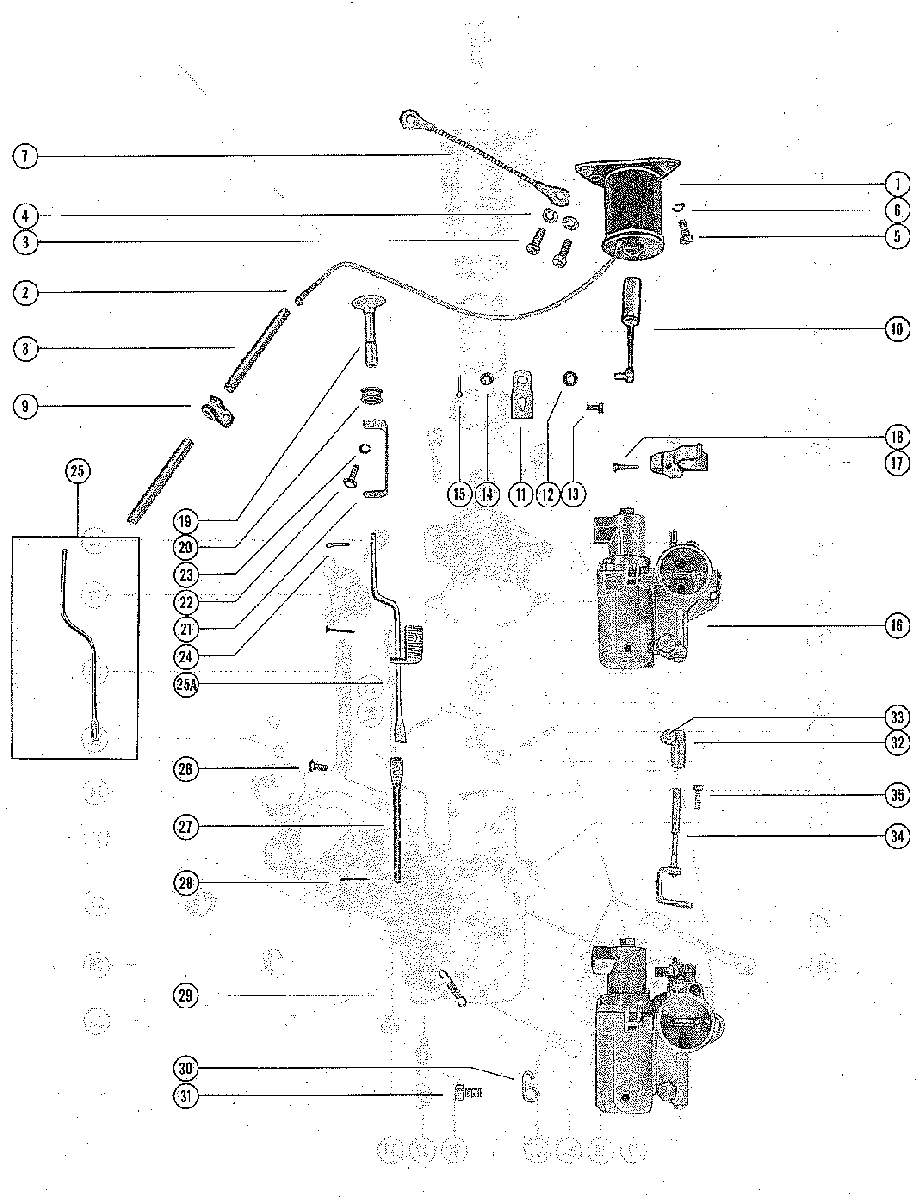

CABURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 450 (4 CYL.) 1476510 THRU 1531568

  • №
    Артикул
    Название
  • 1
    31593 CHOKE SOLENOID, TOP COWL
    CHOKE SOLENOID, TOP COWL
  • 2
    22647 DISCONNECT, KNIFE SPLICE - CHOKE SOLENOID
    DISCONNECT, KNIFE SPLICE - CHOKE SOLENOID
  • 3
    10-20540 SCREW, CHOKE SOLENOID TO TOP COWL
    SCREW, CHOKE SOLENOID TO TOP COWL
  • 4
    13-26992 LOCKWASHER, CHOKE SOLENOID SCREW
    LOCKWASHER, CHOKE SOLENOID SCREW
  • 5
    10-24773 SCREW, CHOKE SOLENOID TO TOP COWL
    SCREW, CHOKE SOLENOID TO TOP COWL
  • 6
    13-26991 LOCKWASHER, CHOKE SOLENOID SCREW
    LOCKWASHER, CHOKE SOLENOID SCREW
  • 7
    26716A1 GROUND STRAP ASSEMBLY, SOLENOID TO ADAPTOR
    GROUND STRAP ASSEMBLY, SOLENOID TO ADAPTOR
  • 8
    32-26693A1 SLEEVE, CHOKE SOLENOID WIRE AND HARNESS WIRE
    SLEEVE, CHOKE SOLENOID WIRE AND HARNESS WIRE
  • 9
    54-24836 CLAMP, CHOKE WIRE TO STARTER SOLENOID
    CLAMP, CHOKE WIRE TO STARTER SOLENOID
  • -
    8M0084613 D WASHER, CHOKE WIRE CLAMP SCREW
    D WASHER, CHOKE WIRE CLAMP SCREW
  • 10
    27031A1 PLUNGER ASSEMBLY, CHOKE SOLENOID
    PLUNGER ASSEMBLY, CHOKE SOLENOID
  • 11
    27710 ADAPTOR PLATE, CHOKE PLUNGER
    ADAPTOR PLATE, CHOKE PLUNGER
  • 12
    25-26633 GROMMET, ADAPTOR PLATE
    GROMMET, ADAPTOR PLATE
  • 13
    10-30097 SCREW, ADAPTOR PLATE TO CHOKE ROD BRACKET
    SCREW, ADAPTOR PLATE TO CHOKE ROD BRACKET
  • 14
    12-26014 WASHER, CHOKE SOLENOID LINK
    WASHER, CHOKE SOLENOID LINK
  • 15
    18-26953 COTTER PIN, CHOKE SOLENOID LINK FASTENING
    COTTER PIN, CHOKE SOLENOID LINK FASTENING
  • 16
    1333-2001 CARBUERTOR ASSEMBLY, COMPLETE
    CARBUERTOR ASSEMBLY, COMPLETE
  • 16
    1333-1867 CARBUERTOR ASSEMBLY, COMPLETE
    CARBUERTOR ASSEMBLY, COMPLETE
  • 16
    1333-2002 CARBUERTOR ASSEMBLY, COMPLETE
    CARBUERTOR ASSEMBLY, COMPLETE
  • 17
    27917 CLUSTER, THROTTLE LEVER ( UPPER CARBURETOR )
    CLUSTER, THROTTLE LEVER ( UPPER CARBURETOR )
  • 18
    1395-6027 SCREW, SET - CLUSTER TO THROTTLE LEVER
    SCREW, SET - CLUSTER TO THROTTLE LEVER
  • 19
    20663 KNOB, CHOKE ROD
    KNOB, CHOKE ROD
  • 19
    90242A1 KNOB, CHOKE ROD
    KNOB, CHOKE ROD
  • 20
    25-20116 GROMMET, CHOKE ROD
    GROMMET, CHOKE ROD
  • 21
    22462 U LINK, CHOKE KNOB TO CHOKE ROD
    U LINK, CHOKE KNOB TO CHOKE ROD
  • 22
    10-69022 SCREW, U LINK TO CHOKE KNOB
    SCREW, U LINK TO CHOKE KNOB
  • 23
    13-26996 LOCKWASHER, U LINK FASTENING SCREW
    LOCKWASHER, U LINK FASTENING SCREW
  • 24
    18-210711 COTTER PIN, CHOKE LEVER AND ROD FASTENING
    COTTER PIN, CHOKE LEVER AND ROD FASTENING
  • 25
    28977 CHOKE ROD - UPPER
    CHOKE ROD - UPPER
  • 25A
    28972A1 CHOKE ROD AND BRACKET ASSEMBLY - UPPER
    CHOKE ROD AND BRACKET ASSEMBLY - UPPER
  • 26
    10-30096 SCREW, UPPER CHOKE ROD TO LOWER CHOKE ROD
    SCREW, UPPER CHOKE ROD TO LOWER CHOKE ROD
  • 27
    27918 CHOKE ROD - LOWER
    CHOKE ROD - LOWER
  • --
    12-27882 WASHER, CHOKE ROD FASTENING SCREW
    WASHER, CHOKE ROD FASTENING SCREW
  • 28
    17-25391 RIVET, CHOKE ROD TO THROTTLE SHAFT
    RIVET, CHOKE ROD TO THROTTLE SHAFT
  • 29
    24-20649 SPRING, CHOKE ROD TO RETAINER
    SPRING, CHOKE ROD TO RETAINER
  • 29
    24-28965 SPRING, CHOKE ROD TO RETAINER
    SPRING, CHOKE ROD TO RETAINER
  • 30
    28651 RETAINER, CHOKE ROD SPRING
    RETAINER, CHOKE ROD SPRING
  • 30
    31479 RETAINER, CHOKE ROD SPRING
    RETAINER, CHOKE ROD SPRING
  • 31
    10-28713 SCREW, RETAINER TO LOWER CARBURETOR
    SCREW, RETAINER TO LOWER CARBURETOR
  • 32
    27870 CLAMP, THROTTLE PICKUP BRACKET
    CLAMP, THROTTLE PICKUP BRACKET
  • 33
    10-69022 SCREW, CLAMP TO THROTTLE PICKUP BRACKET
    SCREW, CLAMP TO THROTTLE PICKUP BRACKET
  • --
    12-30164 WASHER, THROTTLE PICKUP BRACKET CLAMP SCREW
    WASHER, THROTTLE PICKUP BRACKET CLAMP SCREW
  • 34
    28007A1 BRACKET ASSMEBLY, THROTTLE PICKUP
    BRACKET ASSMEBLY, THROTTLE PICKUP
  • 34
    53719A2 BRACKET ASSMEBLY, THROTTLE PICKUP (NOT AS SHOWN)
    BRACKET ASSMEBLY, THROTTLE PICKUP (NOT AS SHOWN)
  • 35
    10-29239 SCREW, THROTTLE BRACKET MOUNTING
    SCREW, THROTTLE BRACKET MOUNTING
