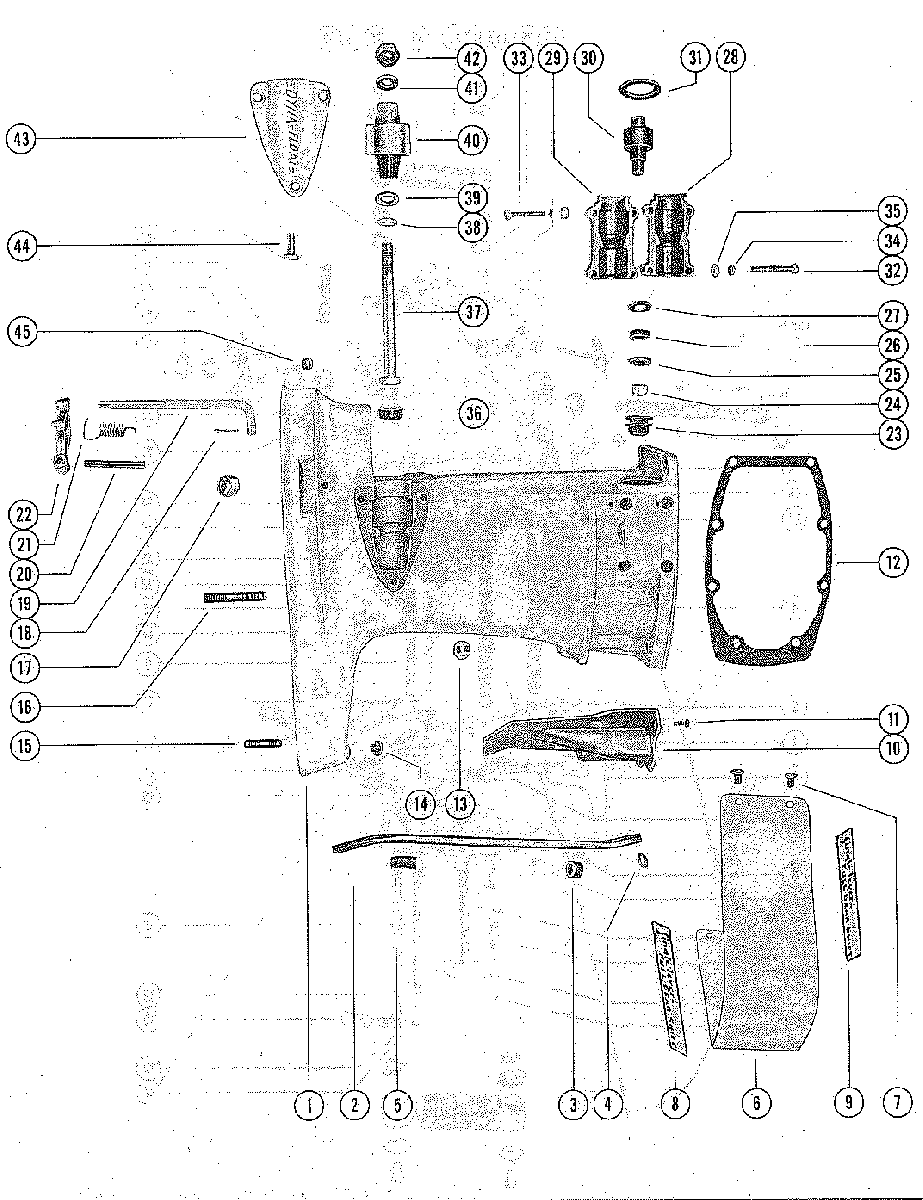

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 450 (4 CYL.) 1476510 THRU 1531568

  • №
    Артикул
    Название
  • 1
    1545-2337A4 DRIVE SHAFT HOUSING
    DRIVE SHAFT HOUSING
  • 2
    32-31998 TUBE, WATER INLET
    TUBE, WATER INLET
  • 3
    25-24961 RING, RUBBER - WATER INLET TUBE
    RING, RUBBER - WATER INLET TUBE
  • 4
    26-25192 SEAL, WATER INLET TUBE
    SEAL, WATER INLET TUBE
  • 5
    23-23651 SLEEVE, WATER INLET TUBE
    SLEEVE, WATER INLET TUBE
  • 6
    35394A1 COVER, TRIM - DRIVE SHAFT HOUSING
    COVER, TRIM - DRIVE SHAFT HOUSING
  • 7
    10-30742 SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
    SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
  • 8
    37-32109 DECAL, "FULL GEAR SH IFT" - STARBOARD
    DECAL, "FULL GEAR SH IFT" - STARBOARD
  • 9
    37-32110 DECAL, "FULL GEAR SHIFT" - PORT
    DECAL, "FULL GEAR SHIFT" - PORT
  • 10
    32016 BAFFLE, EXHAUST RELIEF
    BAFFLE, EXHAUST RELIEF
  • 11
    10-25255 SCREW, RELIEF BAFFLE TO DRIVE SHAFT HOUSING
    SCREW, RELIEF BAFFLE TO DRIVE SHAFT HOUSING
  • 12
    27-31995 GASKET, DRIVE SHAFT HOUSING TO BOTTOM COWL
    GASKET, DRIVE SHAFT HOUSING TO BOTTOM COWL
  • 13
    11-862902 NUT, POWERHEAD STUDS
    NUT, POWERHEAD STUDS
  • 14
    19-29850 PLUG, PLASTIC - WATER PICK-UP SCREW HOLE
    PLUG, PLASTIC - WATER PICK-UP SCREW HOLE
  • 15
    16-8M0022145 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
  • 16
    16-57935 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
  • 17
    11-34933 NUT, GEAR HSG, TO DRIVE SHAFT HOUSING STUDS (7/16)
    NUT, GEAR HSG, TO DRIVE SHAFT HOUSING STUDS (7/16)
  • 18
    18-25191 COTTER PIN, PUSH ROD TO REVERSE LOCK
    COTTER PIN, PUSH ROD TO REVERSE LOCK
  • 19
    32102 ROD, PUSH - REVERSE LOCK
    ROD, PUSH - REVERSE LOCK
  • 19
    28470 ROD, PUSH - REVERSE LOCK
    ROD, PUSH - REVERSE LOCK
  • 20
    17-24887 PIN, REVERSE LOCK LEVER
    PIN, REVERSE LOCK LEVER
  • 21
    24-25122 SPRING, TENSION - PUSH ROD
    SPRING, TENSION - PUSH ROD
  • 22
    52920 LEVER, REVERSE LOCK
    LEVER, REVERSE LOCK
  • 23
    25305 CAP, RUBBER - UPPER MOUNT BOLT NUT
    CAP, RUBBER - UPPER MOUNT BOLT NUT
  • 24
    11-23161 NUT, UPPER MOUNT BOLT
    NUT, UPPER MOUNT BOLT
  • 25
    12-30519 WASHER, UPPER MOUNT BOLT (3/8 ID)
    WASHER, UPPER MOUNT BOLT (3/8 ID)
  • 26
    12-30521 WASHER, RUBBER - UPPER MOUNT BOLT
    WASHER, RUBBER - UPPER MOUNT BOLT
  • 27
    12-30520 WASHER, UPPER MOUNT BOLT (37/64 ID)
    WASHER, UPPER MOUNT BOLT (37/64 ID)
  • 28
    79680A1 COVER, UPPER MOUNT - OUTSIDE HALF
    COVER, UPPER MOUNT - OUTSIDE HALF
  • 29
    79680A1 COVER, UPPER MOUNT - INSIDE HALF
    COVER, UPPER MOUNT - INSIDE HALF
  • 30
    75305 MOUNT, RUBBER - UPPER
    MOUNT, RUBBER - UPPER
  • 31
    24929 PACKING, "U" CUP - UPPER MOUNT COVERS
    PACKING, "U" CUP - UPPER MOUNT COVERS
  • 32
    10-37941 SCREW, UPPER MOUNT COVER - REAR (1 3/4")
    SCREW, UPPER MOUNT COVER - REAR (1 3/4")
  • 33
    10-28772 SCREW, UPPER MOUNT COVER - FRONT (1 1/2")
    SCREW, UPPER MOUNT COVER - FRONT (1 1/2")
  • 34
    12-29245 WASHER, MOUNT COVER FASTENING SCREW
    WASHER, MOUNT COVER FASTENING SCREW
  • 35
    11-35888 NUT, UPPER MOUNT COVER FASTENING SCREW
    NUT, UPPER MOUNT COVER FASTENING SCREW
  • 36
    25067 BUMPER, RUBBER - LOWER MOUNT SCREW
    BUMPER, RUBBER - LOWER MOUNT SCREW
  • 37
    10-75284 SCREW, LOWER MOUNT (5 1/2")
    SCREW, LOWER MOUNT (5 1/2")
  • 38
    12-28051 WASHER, LOWER MOUNT SCREW
    WASHER, LOWER MOUNT SCREW
  • 39
    12-28053 WASHER, RUBBER - LOWER MOUNT SCREW
    WASHER, RUBBER - LOWER MOUNT SCREW
  • 40
    75304T1 MOUNT, RUBBER - LOWER
    MOUNT, RUBBER - LOWER
  • 41
    12-30119 WASHER, LOWER MOUNT SCRW (1/8")
    WASHER, LOWER MOUNT SCRW (1/8")
  • 42
    11-25096 NUT, LOWR MOUNT SCREW
    NUT, LOWR MOUNT SCREW
  • 43
    28241 COVER, LOWER MOUNT (PORT SIDE)
    COVER, LOWER MOUNT (PORT SIDE)
  • 43
    28242 COVER, LOWER MOUNT (STARBOARD SIDE)
    COVER, LOWER MOUNT (STARBOARD SIDE)
  • 44
    10-29256 SCREW, LOWER MOUNT COVER TO DRIVE SHAFT HOUSING
    SCREW, LOWER MOUNT COVER TO DRIVE SHAFT HOUSING
  • 45
    22-390721 PLUG, GREASE - REVERSE LOCK HOLE
    PLUG, GREASE - REVERSE LOCK HOLE
