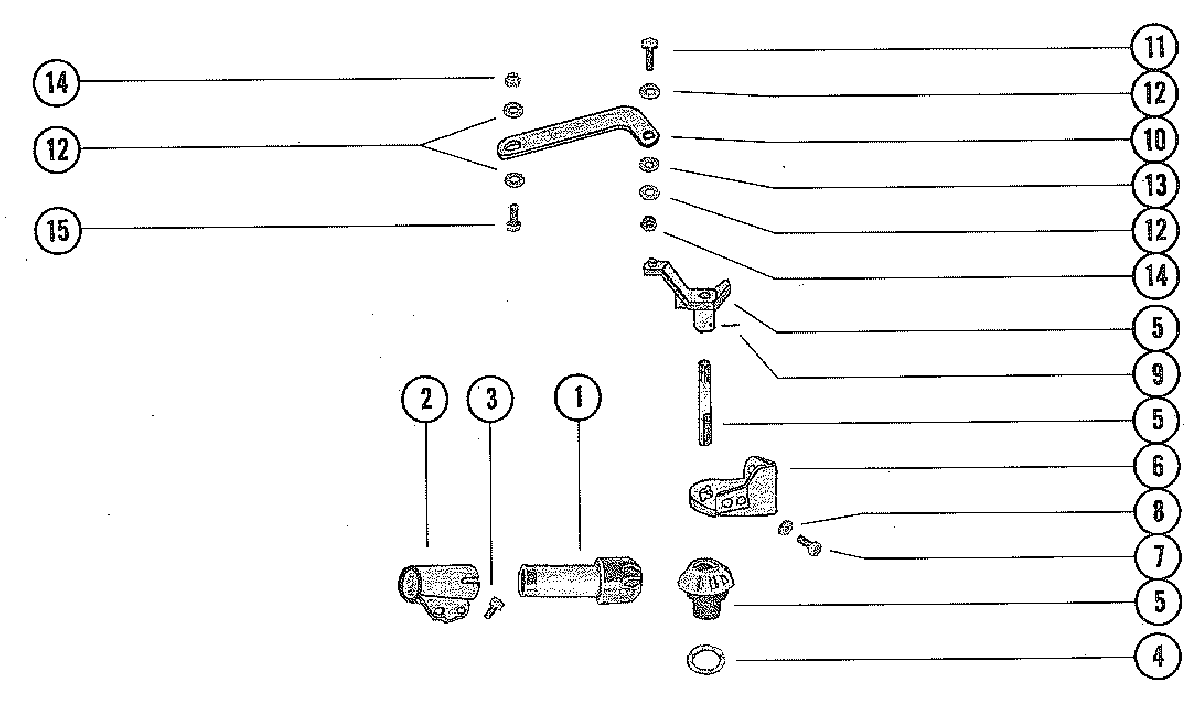

THROTTLE CONTROL LINKAGE для Mercury - 45, 4.5 (1 CYL.) 9072179 THRU 9258280
-
№АртикулНазвание
-
143-60856 GEAR, HORIZONTAL - THROTTLE CONTROLGEAR, HORIZONTAL - THROTTLE CONTROL
-
260885T HOUSING, HORIZONTAL GEARHOUSING, HORIZONTAL GEAR
-
310-96138 SCREW
THROTTLE CONTROL HOUSING TO BOTTOM COWL (5/8")SCREW
THROTTLE CONTROL HOUSING TO BOTTOM COWL (5/8") -
415-64653A1 SHIM, PINION GEAR TO BOTTOM COWLSHIM, PINION GEAR TO BOTTOM COWL
-
542666A3 GEAR AND SHAFT ASS"Y, THROTTLE CONTROLGEAR AND SHAFT ASS"Y, THROTTLE CONTROL
-
662099T BRACKET, THROTTLE CONTROL LEVERBRACKET, THROTTLE CONTROL LEVER
-
710-23015 SCREW, ADJUSTING - THROTTLE (1")SCREW, ADJUSTING - THROTTLE (1")
-
811-68219 NUT, LOCK - THROTTLE ADJUSITNG SCREWSNUT, LOCK - THROTTLE ADJUSITNG SCREWS
-
917-27088 PIN, ROLL - LEVER TO VERTICAL SHAFTPIN, ROLL - LEVER TO VERTICAL SHAFT
-
1060920 LINK, THROTTLE LEVER TO STATOR PLATELINK, THROTTLE LEVER TO STATOR PLATE
-
1110-34696 SCREW
THROTTLE LINK TO THROTTLE LEVER (3/4")SCREW
THROTTLE LINK TO THROTTLE LEVER (3/4") -
1212-34392 WASHER, THROTTLE LINK SCREWWASHER, THROTTLE LINK SCREW
-
1313-29720 WASHER, WAVE - THROTTLE LINK SCREWWASHER, WAVE - THROTTLE LINK SCREW
-
1411-28656 NUT, THROTTLE LINK SCREWNUT, THROTTLE LINK SCREW
-
1510-56027 SCREW, THROTTLE LINK TO STATOR PLATE (7/8")SCREW, THROTTLE LINK TO STATOR PLATE (7/8")
