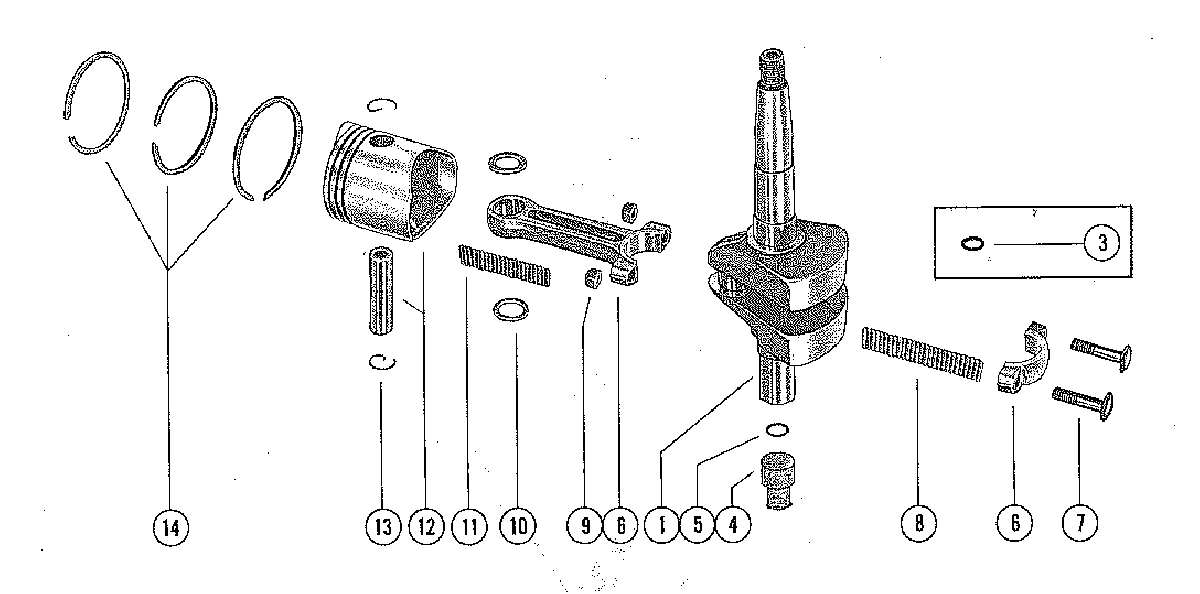

CRANKSHAFT, PISTON AND CONNECTING ROD ASSEMBLY для Mercury - 45, 4.5 (1 CYL.) 9072179 THRU 9258280
-
№АртикулНазвание
-
1427-3513 CRANKSHAFT
UNITED STATES 5397701 AND BELOW
AUSTRALIA 8059594 AND BELOW
BELGIUM 9244405 AND BELOW
CANADA 7137937 AND BELOWCRANKSHAFT
UNITED STATES 5397701 AND BELOW
AUSTRALIA 8059594 AND BELOW
BELGIUM 9244405 AND BELOW
CANADA 7137937 AND BELOW -
326-72793 SEAL, CARRIER
UNITED STATES 5397701 AND BELOW
AUSTRALIA 8059594 AND BELOW
BELGIUM 9244405 AND BELOW
CANADA 7137937 AND BELOWSEAL, CARRIER
UNITED STATES 5397701 AND BELOW
AUSTRALIA 8059594 AND BELOW
BELGIUM 9244405 AND BELOW
CANADA 7137937 AND BELOW -
1427-7334A2 CRANKSHAFT ASSEMBLY
UNITED STATES 5397702 AND UP
BELGIUM 9244406 AND UP
CANADA 7137937 AND UPCRANKSHAFT ASSEMBLY
UNITED STATES 5397702 AND UP
BELGIUM 9244406 AND UP
CANADA 7137937 AND UP -
479952A1 CARRIER ASSEMBLY
UNITED STATES 5397702 AND UP
BELGIUM 9244406 AND UP
CANADA 7137937 AND UPCARRIER ASSEMBLY
UNITED STATES 5397702 AND UP
BELGIUM 9244406 AND UP
CANADA 7137937 AND UP -
512-79960 SEAL, BELT
UNITED STATES 5397702 AND UP
BELGIUM 9244406 AND UP
CANADA 7137937 AND UPSEAL, BELT
UNITED STATES 5397702 AND UP
BELGIUM 9244406 AND UP
CANADA 7137937 AND UP -
6608-7395A2 CONNECTING ROD ASSEMBLY
UNITED STATES 5270783 AND BELOW
AUSTRALIA 8059344 AND BELOW
BELGIUM 9221755 AND BELOW
CANADA 7128837 AND BELOWCONNECTING ROD ASSEMBLY
UNITED STATES 5270783 AND BELOW
AUSTRALIA 8059344 AND BELOW
BELGIUM 9221755 AND BELOW
CANADA 7128837 AND BELOW -
6608-7395A2 CONNECTING ROD ASSEMBLY
UNITED STATES 5270784 AND UP
AUSTRALIA 8059345 AND UP
BELGIUM 9221756 AND UP
CANADA 7128838 AND UPCONNECTING ROD ASSEMBLY
UNITED STATES 5270784 AND UP
AUSTRALIA 8059345 AND UP
BELGIUM 9221756 AND UP
CANADA 7128838 AND UP -
710-87374 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
831-8M0045032 BEARING, NEEDLE - CRANKPINBEARING, NEEDLE - CRANKPIN
-
911-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
1012-65967 WASHER, NEEDLE BEARING RETAININGWASHER, NEEDLE BEARING RETAINING
-
1129-31505 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
12719-7391T3 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
1340-21666 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
1439-21665A12 RING, PISTONRING, PISTON
-
-27-78139A80 GASKET SETGASKET SET
-
-27-78139A80 GASKET SETGASKET SET
Все узлы модели:
- BOTTOM COWL ASSEMBLY
- CARBURETOR ASSEMBLY
- CARBURETOR CHOKE LINKAGE
- CLAMP BRACKET ASSEMBLY
- • CRANKSHAFT, PISTON AND CONNECTING ROD ASSEMBLY
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL AND IGNITION COIL
- FUEL PUMP AND FUEL LINE ASSEMBLY (SERIAL GROUP #14)
- FUEL PUMP AND FUEL LINE ASSEMBLY (SERIAL GROUP #15)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- MISCELLANEOUS PARTS/ACCESSORIES
- SHIFT CONTROL LINKAGE
- STATOR AND IGNITION COMPONENTS
- STEERING HANDLE ASSEMBLY
- SWIVEL BRACKET ASSEMBLY
- THROTTLE CONTROL LINKAGE
- TOP COWL AND STARTER ASSEMBLY
