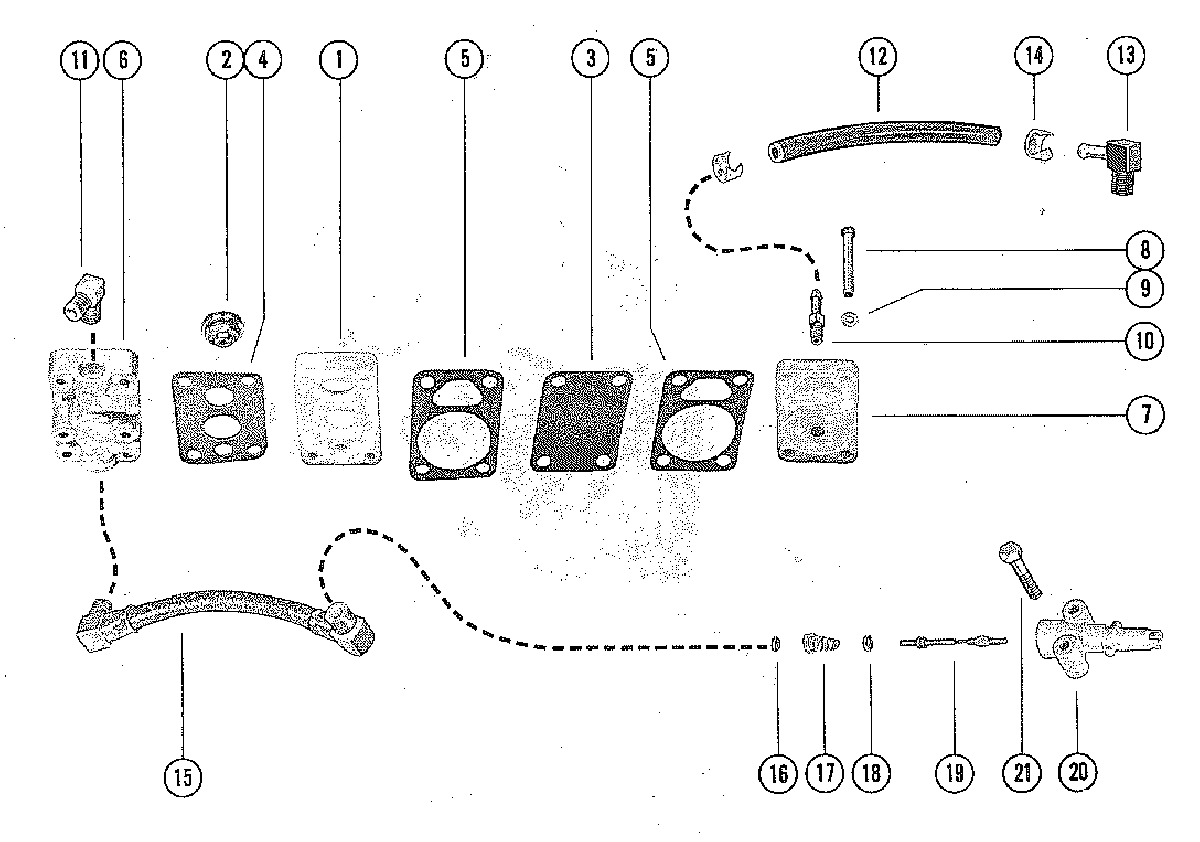

FUEL PUMP AND FUEL LINE ASSEMBLY (SERIAL GROUP #14) для Mercury - 45, 4.5 (1 CYL.) 9072179 THRU 9258280
-
№АртикулНазвание
-
189977A1 FUEL PUMP ASSEMBLY (SEE NOTE)FUEL PUMP ASSEMBLY (SEE NOTE)
-
221-30430A2 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
353245A1 DIAPHRAGM KIT, FUEL PUMPDIAPHRAGM KIT, FUEL PUMP
-
490-8M0143356 GASKET, FUEL PUMP TO BASEGASKET, FUEL PUMP TO BASE
-
590-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
653241 BASE, FUEL PUMP
UNITED STATES 5270783 AND BELOW
AUSTRALIA 8059344 AND BELOW
BELGIUM 9221755 AND BELOW
CANADA 7128837 AND BELOWBASE, FUEL PUMP
UNITED STATES 5270783 AND BELOW
AUSTRALIA 8059344 AND BELOW
BELGIUM 9221755 AND BELOW
CANADA 7128837 AND BELOW -
761541 COVER, FUEL PUMPCOVER, FUEL PUMP
-
810-32627 SCREW, FUEL PUMP TO BASE (1 1/2")SCREW, FUEL PUMP TO BASE (1 1/2")
-
912-847883 WASHER, FUEL PUMP SCREWSWASHER, FUEL PUMP SCREWS
-
1022-61544 ELBOW, HOSE TO FUEL PUMP (45 DEG.)ELBOW, HOSE TO FUEL PUMP (45 DEG.)
-
1122-39079 ELBOW, FUEL PUMP TO CARBURETORELBOW, FUEL PUMP TO CARBURETOR
-
1232-9912688 HOSE ASSEMBLY
FUEL PUMP TO CYLINDER BLOCK (4 1/2")HOSE ASSEMBLY
FUEL PUMP TO CYLINDER BLOCK (4 1/2") -
1322-33373001 ELBOW, HOSE TO CYLINDER BLOCK (90 DEG.)ELBOW, HOSE TO CYLINDER BLOCK (90 DEG.)
-
1454-20387 CLAMP, FUEL PUMP HOSE TO ELBOWSCLAMP, FUEL PUMP HOSE TO ELBOWS
-
1532-61642 FUEL LINE, INLET - ADAPTOR TO FUEL PUMPFUEL LINE, INLET - ADAPTOR TO FUEL PUMP
-
1630188 CUP WASSHER, ADAPTORCUP WASSHER, ADAPTOR
-
1724-23067T SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
1825-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
1923069 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2022833 ADAPTOR, CHECK UNITADAPTOR, CHECK UNIT
-
2110-37923 SCREW
CHECK UNIT ADAPTOR TO BOTTOM COWL (1 1/4")SCREW
CHECK UNIT ADAPTOR TO BOTTOM COWL (1 1/4") -
-27-78139A80 GASKET SETGASKET SET
