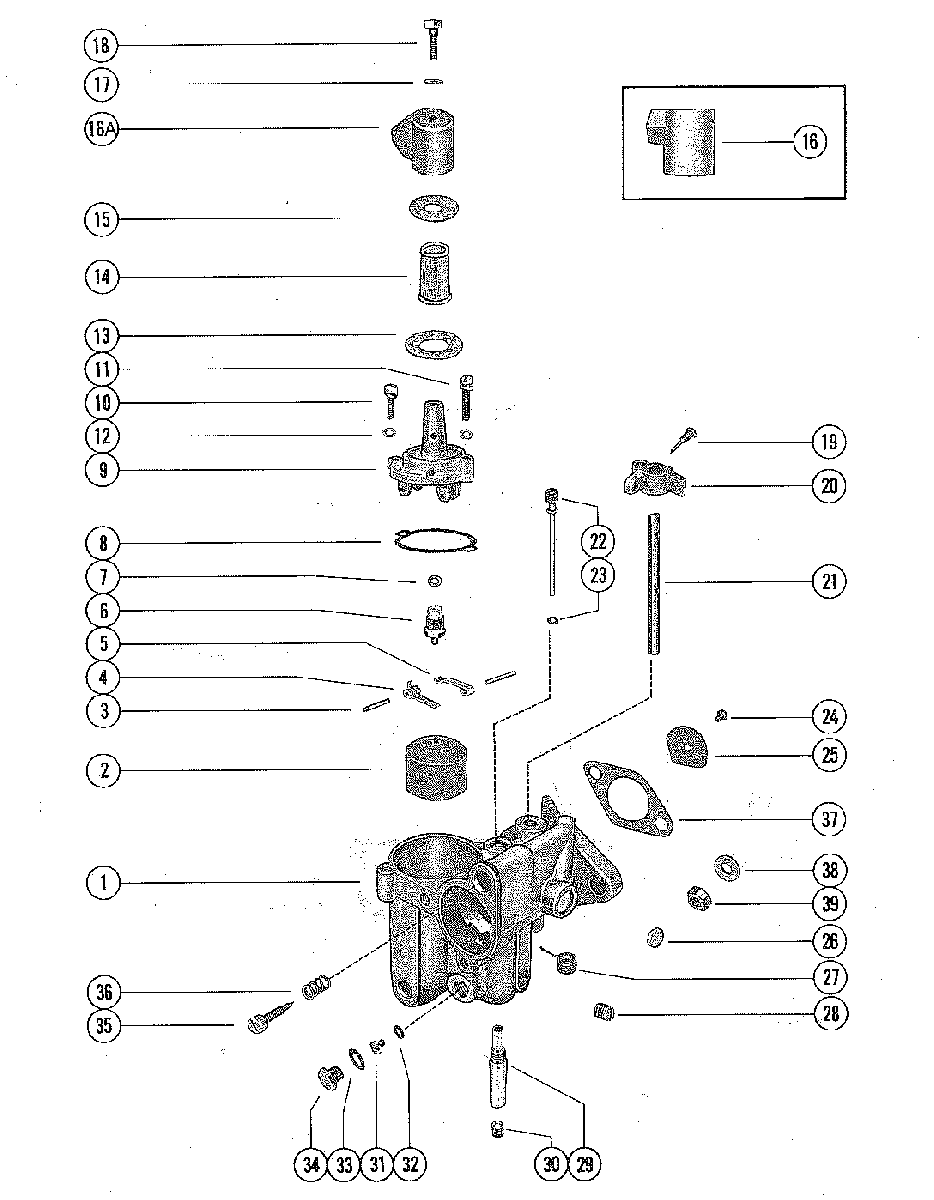

CARBURETOR ASSEMBLY для Mercury - 45, 4.5 (1 CYL.) 9072179 THRU 9258280

  • №
    Артикул
    Название
  • 1
    1341-8740A1 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 5270783 AND BELOW
    AUSTRALIA 8059344 AND BELOW
    BELGIUM 9221755 AND BELOW
    CANADA 7128837 AND BELOW
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 5270783 AND BELOW
    AUSTRALIA 8059344 AND BELOW
    BELGIUM 9221755 AND BELOW
    CANADA 7128837 AND BELOW
  • 1
    1341-8740A1 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 5270784 AND UP
    AUSTRALIA 8059345 AND UP
    BELGIUM 9221756 AND UP
    CANADA 7128838 AND UP
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 5270784 AND UP
    AUSTRALIA 8059345 AND UP
    BELGIUM 9221756 AND UP
    CANADA 7128838 AND UP
  • 2
    1395-8673 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 3
    90-8M0143356 PIN, FLOAT LEVER PINION
    PIN, FLOAT LEVER PINION
  • 4
    90-8M0143356 LEVER, FLOAT (LOWER)
    LEVER, FLOAT (LOWER)
  • 5
    90-8M0143356 LEVER, FLOAT (UPPER)
    LEVER, FLOAT (UPPER)
  • 6
    1395-92581 INLET NEEDLE, SEAT AND GASKET
    INLET NEEDLE, SEAT AND GASKET
  • 7
    90-8M0143356 GASKET, INLET SEAT
    GASKET, INLET SEAT
  • 8
    90-8M0143356 GASKET, FLOAT BOWL COVER
    GASKET, FLOAT BOWL COVER
  • 9
    1399-1133 COVER, FLOAT BOWL
    COVER, FLOAT BOWL
  • 10
    10-52195 SCREW, FLOAT BOWL COVER (SHORT)
    SCREW, FLOAT BOWL COVER (SHORT)
  • 11
    10-52196 SCREW, FLOAT BOWL COVER (LONG)
    SCREW, FLOAT BOWL COVER (LONG)
  • 12
    13-26995 LOCKWASHER, FLOAT BOWL COVER SCREW
    LOCKWASHER, FLOAT BOWL COVER SCREW
  • 13
    90-8M0143356 GASKET, STRAINER COVER (LARGE)
    GASKET, STRAINER COVER (LARGE)
  • 14
    1399-3938 SCREEN, FILTER
    SCREEN, FILTER
  • 15
    90-8M0143356 GASKET, STRAINER COVER (SMALL)
    GASKET, STRAINER COVER (SMALL)
  • 16
    1399-1135 COVER, STRAINER (90 DEG.)
    UNITED STATES 5270783 AND BELOW
    AUSTRALIA 8059344 AND BELOW
    BELGIUM 9221755 AND BELOW
    CANADA 7128837 AND BELOW
    COVER, STRAINER (90 DEG.)
    UNITED STATES 5270783 AND BELOW
    AUSTRALIA 8059344 AND BELOW
    BELGIUM 9221755 AND BELOW
    CANADA 7128837 AND BELOW
  • 16A
    1399-4791A1 COVER, STRAINER (45 DEG.)
    UNITED STATES 5270784 AND UP
    AUSTRALIA 8059345 AND UP
    BELGIUM 9221756 AND UP
    CANADA 7128838 AND UP
    COVER, STRAINER (45 DEG.)
    UNITED STATES 5270784 AND UP
    AUSTRALIA 8059345 AND UP
    BELGIUM 9221756 AND UP
    CANADA 7128838 AND UP
  • 17
    90-8M0143356 GASKETE, STRAINER COVER SCREW
    GASKETE, STRAINER COVER SCREW
  • 18
    10-25822 SCREW, STRAINER COVER
    SCREW, STRAINER COVER
  • 19
    1395-6027 SCREW, THROTTLE STOP LEVER
    SCREW, THROTTLE STOP LEVER
  • 20
    8146791 LEVER, THROTTLE STOP
    LEVER, THROTTLE STOP
  • 21
    1399-1716 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 22
    90-8M0143356 TUBE, IDLE
    TUBE, IDLE
  • 23
    90-8M0143356 GASKET, IDLE TUBE
    GASKET, IDLE TUBE
  • 24
    90-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTER
    SCREW AND LOCKWASHER, THROTTLE SHUTTER
  • 25
    1399-3739 SHUTTER, THROTTLE
    SHUTTER, THROTTLE
  • 26
    90-8M0143356 WELCH PLUG, BODY CHANNEL
    WELCH PLUG, BODY CHANNEL
  • 27
    90-8M0143356 SPRING, THROTTLE SHAFT RETURN
    SPRING, THROTTLE SHAFT RETURN
  • 28
    10-28845 SCREW, PLUG - BODY CHANNEL
    SCREW, PLUG - BODY CHANNEL
  • 29
    90-8M0143356 MAIN NOZZLE
    MAIN NOZZLE
  • 30
    10-23178 SCREW, PLUG - MAIN NOZZLE
    SCREW, PLUG - MAIN NOZZLE
  • 31
    1399-1896 JET, MAIN FUEL (.041)
    JET, MAIN FUEL (.041)
  • 31
    1399-2407 JET, MAIN FUEL (.39)
    JET, MAIN FUEL (.39)
  • 31
    1399-3026 JET, MAIN FUEL (.036) - STANDARD
    JET, MAIN FUEL (.036) - STANDARD
  • 31
    1399-3251 JET, MAIN FUEL (.034)
    JET, MAIN FUEL (.034)
  • 31
    1399-3252 JET, MAIN FUEL (.032)
    JET, MAIN FUEL (.032)
  • 32
    90-8M0143356 GASKET, MAIN FUEL JET
    GASKET, MAIN FUEL JET
  • 33
    90-8M0143356 GASKET, JET CHANNEL PLUG SCREW
    GASKET, JET CHANNEL PLUG SCREW
  • 34
    10-28405 SCREW, PLUG - MAIN FUEL JET CHANNEL
    SCREW, PLUG - MAIN FUEL JET CHANNEL
  • 35
    1399-3740 SCREW, IDLE ADJUSTMENT
    SCREW, IDLE ADJUSTMENT
  • 36
    90-8M0143356 SPRING, IDLE ADJUSTMENT SCREW
    SPRING, IDLE ADJUSTMENT SCREW
  • --
    1399-1717 GASKET AND PACKING SET
    GASKET AND PACKING SET
  • --
    1395-92621 REPAIR PARTS KIT
    REPAIR PARTS KIT
  • 37
    27-63309 GASKET, CARBURETOR TO REED BLOCK
    GASKET, CARBURETOR TO REED BLOCK
  • 38
    12-20583 WASHER, CARBURETOR MOUNTING STUD
    WASHER, CARBURETOR MOUNTING STUD
  • 39
    11-24652 NUT, CARBURETOR MOUNTING STUD
    NUT, CARBURETOR MOUNTING STUD
  • -
    27-78139A80 GASKET SET
    GASKET SET
