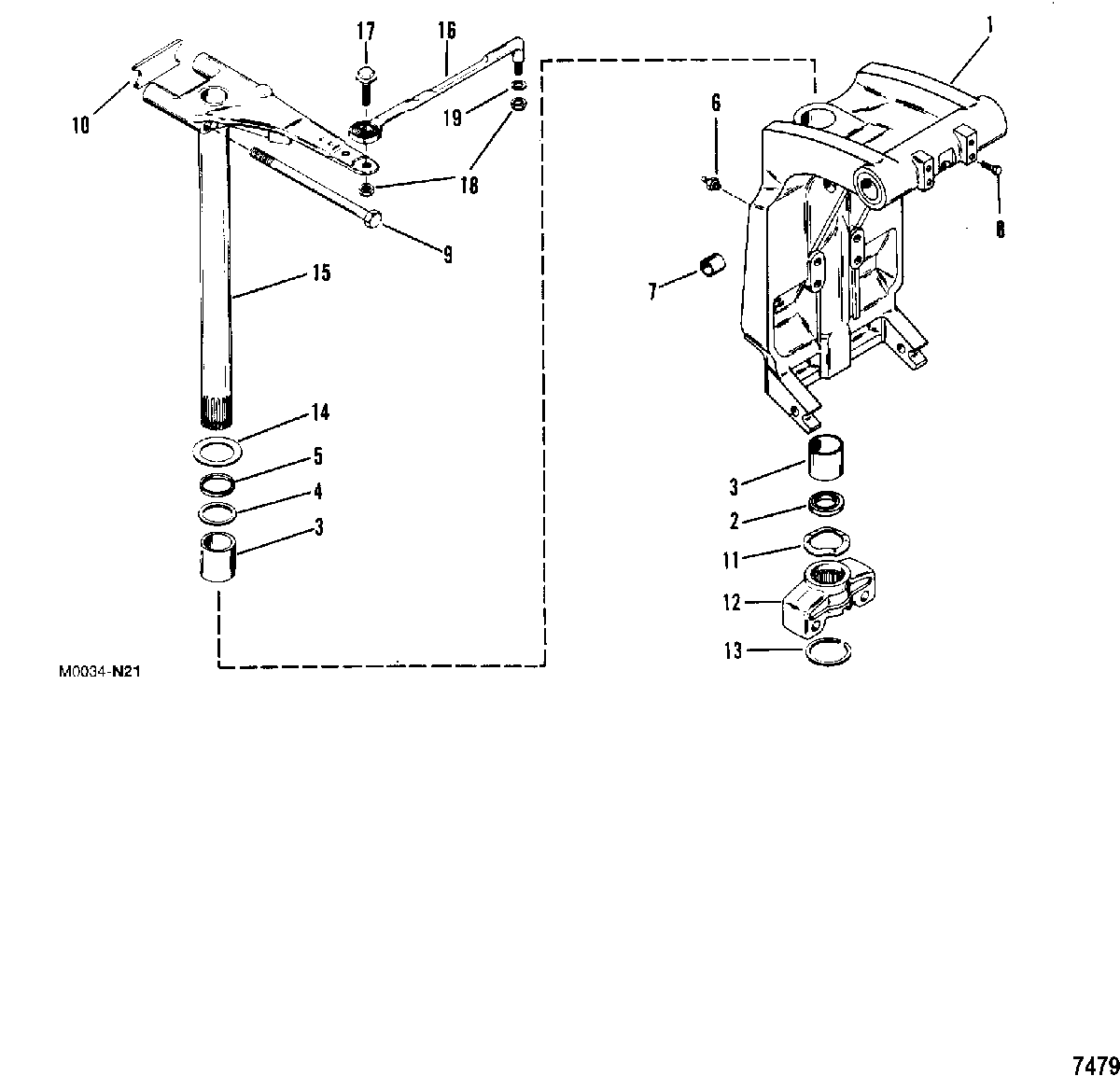

Swivel Bracket and Steering Arm для Mercury - 45 (4 CYL.) 9466692 & Up
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY
(Black)SWIVEL BRACKET ASSEMBLY
(Black) -
11499-8M0102865 SWIVEL BRACKET ASSEMBLY
(Gray)SWIVEL BRACKET ASSEMBLY
(Gray) -
226-87735 SEAL, Oil, Swivel Bracket (Lower)SEAL, Oil, Swivel Bracket (Lower)
-
323-818764 BUSHING, Swivel Bracket (Lower and Upper)BUSHING, Swivel Bracket (Lower and Upper)
-
425-33466 O-RING, Swivel Bracket (Upper)O-RING, Swivel Bracket (Upper)
-
523-67668 SPACER, Swivel Bracket (Upper)SPACER, Swivel Bracket (Upper)
-
622-74036 FITTING, Grease, GreaseFITTING, Grease, Grease
-
723-821207 BUSHING, Swivel BracketBUSHING, Swivel Bracket
-
810-64014 SCREW, (.250-28 x .500), Swivel BracketSCREW, (.250-28 x .500), Swivel Bracket
-
910-99621 SCREW, (.437-20 x 6.620), Steering Arm to Upper MountSCREW, (.437-20 x 6.620), Steering Arm to Upper Mount
-
1028203 BUMPER, Top YokeBUMPER, Top Yoke
-
1113-78854 WAVE WASHER, Bottom YokeWAVE WASHER, Bottom Yoke
-
1242961T YOKE, Bottom
(Black)YOKE, Bottom
(Black) -
1242961T6 YOKE, Bottom
(Gray)YOKE, Bottom
(Gray) -
1353-67684 RING, Retaining, Bottom YokeRING, Retaining, Bottom Yoke
-
1412-67670 WASHER, Thrust - Swivel BracketWASHER, Thrust - Swivel Bracket
-
1599661A2 SWIVEL PIN ASSEMBLYSWIVEL PIN ASSEMBLY
-
1692876A12 LINK ASSEMBLY, SteeringLINK ASSEMBLY, Steering
-
1710-849838 SCREW, (.375-24 x 1.25), Steering Link to Steering ArmSCREW, (.375-24 x 1.25), Steering Link to Steering Arm
-
1811-8M0042636 NUT, (.375-24), Steering Link ScrewNUT, (.375-24), Steering Link Screw
-
1912-34931 WASHER, (.406 x .734 x .063) Stainless Steel, Steering Link to Steering ArmWASHER, (.406 x .734 x .063) Stainless Steel, Steering Link to Steering Arm
-
-27-85491A90 GASKET SETGASKET SET
