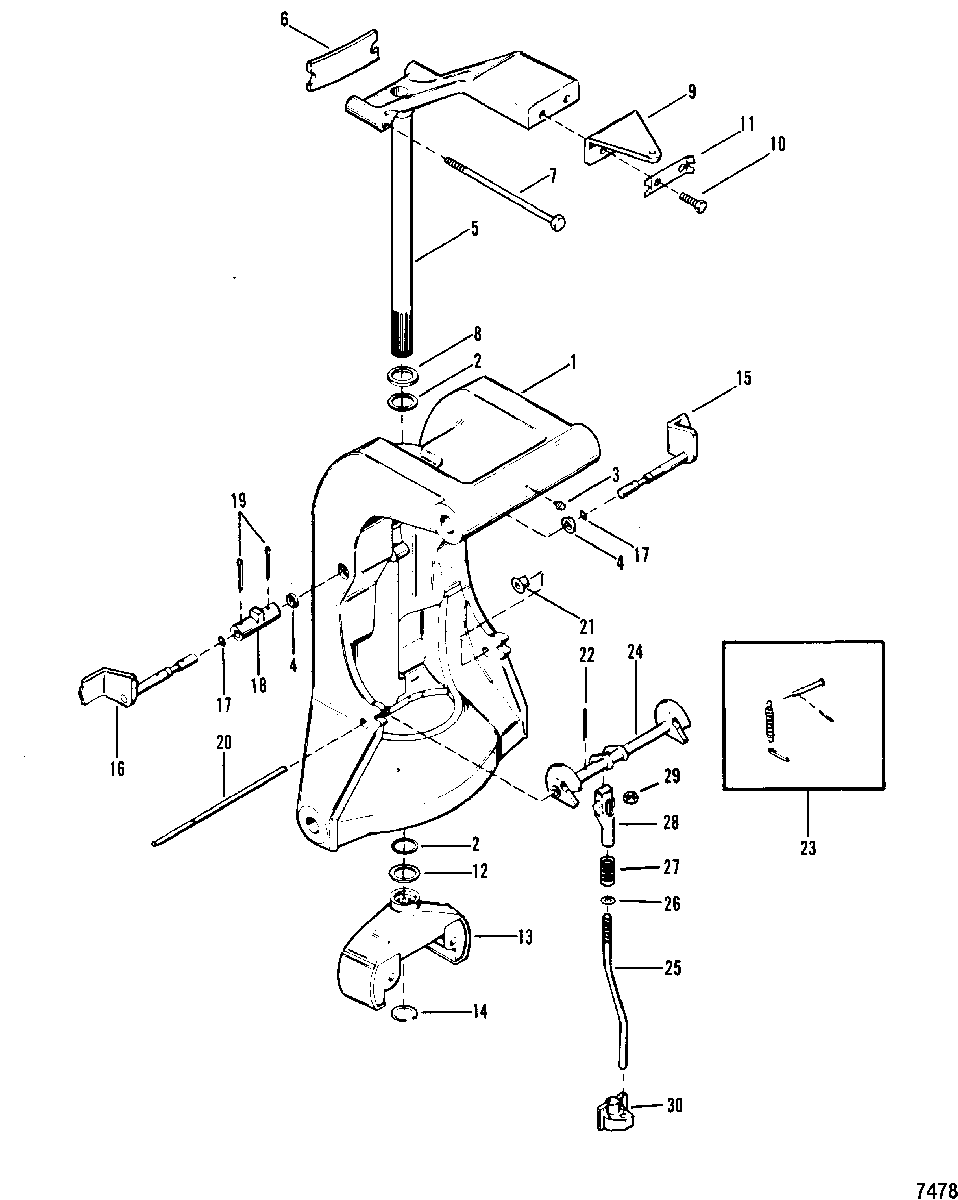

Swivel Bracket and Reverse Lock(Non Power Trim) для Mercury - 45 (4 CYL.) 9466692 & Up

  • №
    Артикул
    Название
  • 1
    1489-8597A4 SWIVEL BRACKET
    (Short Shaft)
    SWIVEL BRACKET
    (Short Shaft)
  • 1
    1490-8599A6 SWIVEL BRACKET
    (Long Shaft)
    SWIVEL BRACKET
    (Long Shaft)
  • 2
    26-32911 SEAL, Oil, Swivel Bracket
    SEAL, Oil, Swivel Bracket
  • 3
    22-74036 FITTING, Grease
    FITTING, Grease
  • 4
    26-22734 SEAL, Oil, Swivel Bracket
    SEAL, Oil, Swivel Bracket
  • 5
    88798A23 SWIVEL PIN ASSEMBLY, Two Piece Steering Arm
    (Short Shaft)
    SWIVEL PIN ASSEMBLY, Two Piece Steering Arm
    (Short Shaft)
  • 5
    88798A24 SWIVEL PIN ASSEMBLY, Two Piece Steering Arm
    (Long Shaft)
    SWIVEL PIN ASSEMBLY, Two Piece Steering Arm
    (Long Shaft)
  • 5
    69540A3 SWIVEL PIN ASSEMBLY, One Piece Steering Arm
    (Short Shaft)
    SWIVEL PIN ASSEMBLY, One Piece Steering Arm
    (Short Shaft)
  • 5
    69540A4 SWIVEL PIN ASSEMBLY, One Piece Steering Arm
    (Long Shaft)
    SWIVEL PIN ASSEMBLY, One Piece Steering Arm
    (Long Shaft)
  • 6
    30711 BUMPER, Steering Arm
    BUMPER, Steering Arm
  • 7
    10-66897 BOLT, (.437-20 x 5.250), Upper MOunt to Swivel Pin (5.25 Inch)
    BOLT, (.437-20 x 5.250), Upper MOunt to Swivel Pin (5.25 Inch)
  • 8
    12-47606 WASHER, Swivel Pin - Lower
    WASHER, Swivel Pin - Lower
  • 9
    76535T BRACKET, Ride - Guide
    (Manual/Electric without Tiller Handle)
    BRACKET, Ride - Guide
    (Manual/Electric without Tiller Handle)
  • 10
    10-34352 SCREW, (.375-24 x .875), Bracket
    (Manual/Electric without Tiller Handle)
    SCREW, (.375-24 x .875), Bracket
    (Manual/Electric without Tiller Handle)
  • 11
    76533 STRAP, Bracket Screw
    (Manual/Electric without Tiller Handle)
    STRAP, Bracket Screw
    (Manual/Electric without Tiller Handle)
  • 12
    12-25176 WASHER, Swivel Pin to Bottom Yoke (.060)
    WASHER, Swivel Pin to Bottom Yoke (.060)
  • 13
    77416T1 YOKE, Bottom
    (Black)
    YOKE, Bottom
    (Black)
  • 13
    77416T6 YOKE, Bottom
    (Gray)
    YOKE, Bottom
    (Gray)
  • 14
    53-77415 RETAINING RING, Bottom Yoke
    RETAINING RING, Bottom Yoke
  • 15/16
    89105 TILT LOCK
    (Starboard/Port)
    TILT LOCK
    (Starboard/Port)
  • 15/16
    99431A1 TILT LOCK
    (Handle Models)
    TILT LOCK
    (Handle Models)
  • 17
    25-627021 O-RING, (.301 x .070), Tilt Lock
    O-RING, (.301 x .070), Tilt Lock
  • 18
    79659 COUPLING, Tilt Lock
    COUPLING, Tilt Lock
  • 19
    18-47959 COTTER PIN, Tilt Lock Tube
    COTTER PIN, Tilt Lock Tube
  • 20
    56349 SHAFT, Reverse Lock Pivot
    SHAFT, Reverse Lock Pivot
  • 21
    23-69132 BUSHING, Reverse Pivot Shaft
    BUSHING, Reverse Pivot Shaft
  • 22
    18-45882 COTTER PIN, Reverse Lock to Shaft
    COTTER PIN, Reverse Lock to Shaft
  • 23
    24-78203A2 SPRING, Reverse Lock Tension
    SPRING, Reverse Lock Tension
  • 24
    14664A3 REVERESE LOCK
    REVERESE LOCK
  • 25
    43415 PUSH ROD, Reverse Lock
    (Short Shaft)
    PUSH ROD, Reverse Lock
    (Short Shaft)
  • 25
    43416 PUSH ROD, Reverse Lock
    (Long Shaft)
    PUSH ROD, Reverse Lock
    (Long Shaft)
  • 26
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, Push Rod
    WASHER, (.323 x .563 x .063) Stainless Steel, Push Rod
  • 27
    24-44297 SPRING, Push Rod
    SPRING, Push Rod
  • 28
    89813 ROD END, Push Rod
    ROD END, Push Rod
  • 29
    11-82670911 NUT, (.312-24) Stainless Steel, Push Rod
    NUT, (.312-24) Stainless Steel, Push Rod
  • 30
    933361 GUIDE, Push Rod
    GUIDE, Push Rod
  • -
    27-85491A90 GASKET SET
    GASKET SET
