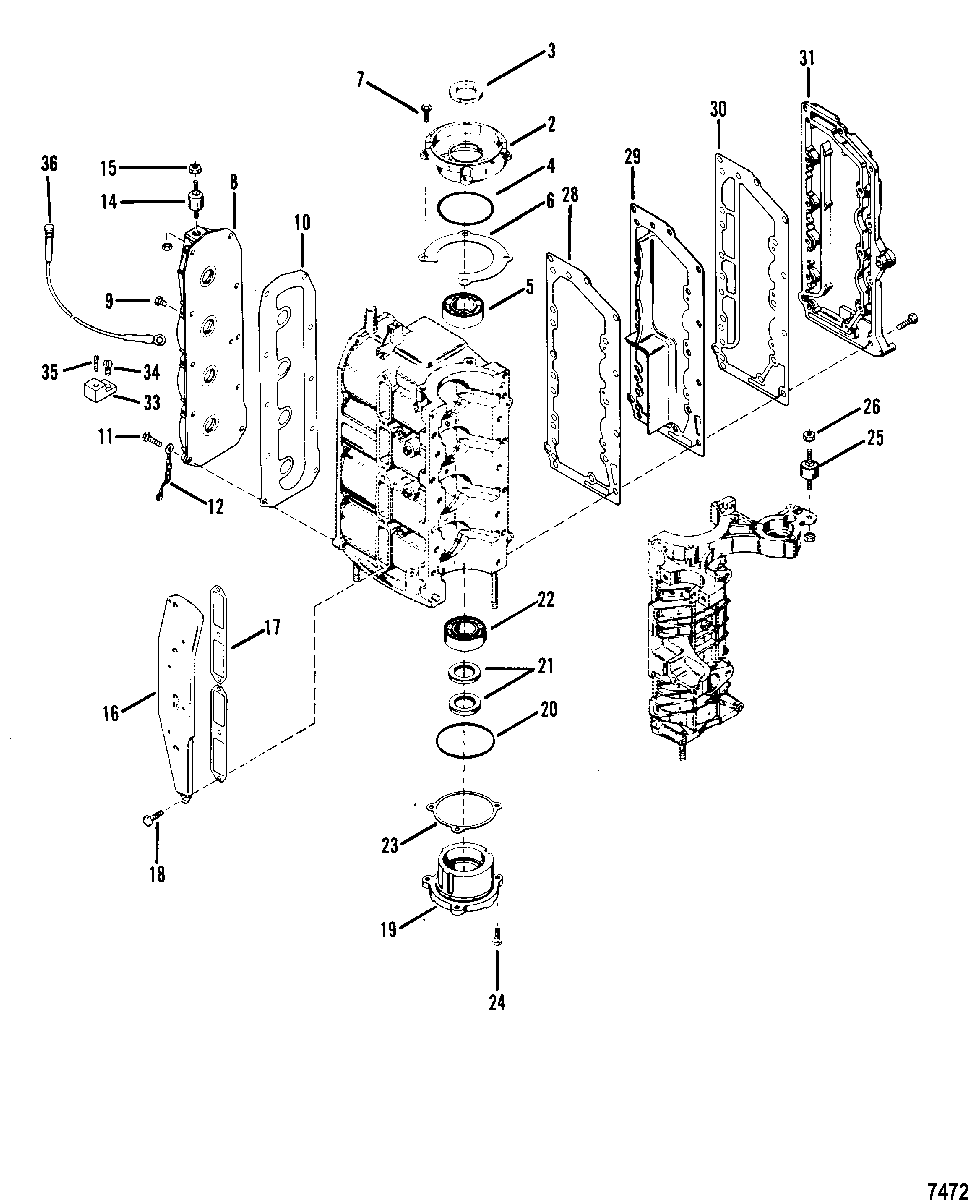

End Caps and Exhaust Cover для Mercury - 45 (4 CYL.) 9466692 & Up
-
№АртикулНазвание
-
21160-5826A2 END CAP ASSEMBLY, UpperEND CAP ASSEMBLY, Upper
-
326-41953 SEAL, Upper End CapSEAL, Upper End Cap
-
425-20081 O-RING, Upper End CapO-RING, Upper End Cap
-
530-63742T BEARING, Ball, Upper End CapBEARING, Ball, Upper End Cap
-
615-72538A1 SHIM, Upper End Cap (.005-10)SHIM, Upper End Cap (.005-10)
-
710-824941 SCREW, Upper End Cap (0.75 Inch)SCREW, Upper End Cap (0.75 Inch)
-
81017-8360A1 COVER ASSEMBLY, Cylinder BlockCOVER ASSEMBLY, Cylinder Block
-
922-328022 PLUG, Pipe (.125-27), Cylinder Block Cover
(Manual Only)PLUG, Pipe (.125-27), Cylinder Block Cover
(Manual Only) -
1027-437772 GASHET, Cylinder Block CoverGASHET, Cylinder Block Cover
-
1110-76630 SCREW, Cylinder Block Cover (1 Inch)SCREW, Cylinder Block Cover (1 Inch)
-
1246933A7 CABLE ASSEMBLYCABLE ASSEMBLY
-
1490435 MOUNT, Rubber - Cylinder Block CoverMOUNT, Rubber - Cylinder Block Cover
-
1511-20184 NUT, (1/4-28X7/32), Rubber MountNUT, (1/4-28X7/32), Rubber Mount
-
1618827A1 COVER ASSEMBLY, Transfer PortCOVER ASSEMBLY, Transfer Port
-
1727-279361 GASKET, Transfer Port CoverGASKET, Transfer Port Cover
-
1810-20540 SCREW, Transfer Port Cover (0.625 Inch)SCREW, Transfer Port Cover (0.625 Inch)
-
191158-6635T1 END CAP ASSEMBLY, LowerEND CAP ASSEMBLY, Lower
-
2025-20081 O-RING, Lower End CapO-RING, Lower End Cap
-
2126-41953 SEAL, Lower End CapSEAL, Lower End Cap
-
2230-63742T BEARING, Ball, Lower End CapBEARING, Ball, Lower End Cap
-
2315-20085A1 SHIM SET, Lower End Cap (.005-10)SHIM SET, Lower End Cap (.005-10)
-
2410-29256 SCREW, (.312-18 x .875), Lower End CapSCREW, (.312-18 x .875), Lower End Cap
-
2590435 MOUNT, Rubber - CrankcaseMOUNT, Rubber - Crankcase
-
2611-20184 NUT, (1/4-28X7/32), Rubber MountNUT, (1/4-28X7/32), Rubber Mount
-
2827-854913 GASKET, Cylinder Block to Baffle PlateGASKET, Cylinder Block to Baffle Plate
-
2990421T01 PLATE, Baffle - Exhaust ManifoldPLATE, Baffle - Exhaust Manifold
-
3027-854924 GASKET, Baffle Plate to Exhaust CoverGASKET, Baffle Plate to Exhaust Cover
-
3177381 COVER, Exhaust ManifoldCOVER, Exhaust Manifold
-
3210-37562 SCREW, (.312-18 x 1.00) Stainless Steel, Manifold Cover to Cylinder BlockSCREW, (.312-18 x 1.00) Stainless Steel, Manifold Cover to Cylinder Block
-
3210-38837 SCREW, (.312-18 x 1.12), Manifold Cover to Cylinder BlockSCREW, (.312-18 x 1.12), Manifold Cover to Cylinder Block
-
3386-45915 TERMINAL BLOCK
(Electric Only)TERMINAL BLOCK
(Electric Only) -
3410-62568 SCREW, (#10-16 x .375), Terminal Block
(Electric Only)SCREW, (#10-16 x .375), Terminal Block
(Electric Only) -
3510-72169 SCREW, (#10-24 x .50), Terminal Block
(Electric Only)SCREW, (#10-24 x .50), Terminal Block
(Electric Only) -
3687-96829A1 SWITCH ASSEMBLY, Temperature, 260 Tan
(Electric Only)SWITCH ASSEMBLY, Temperature, 260 Tan
(Electric Only) -
3687-16775A1 TEMPERATURE SWITCH, 300 Tan and Green
(Electric Only)TEMPERATURE SWITCH, 300 Tan and Green
(Electric Only) -
-27-85491A90 GASKET SETGASKET SET
