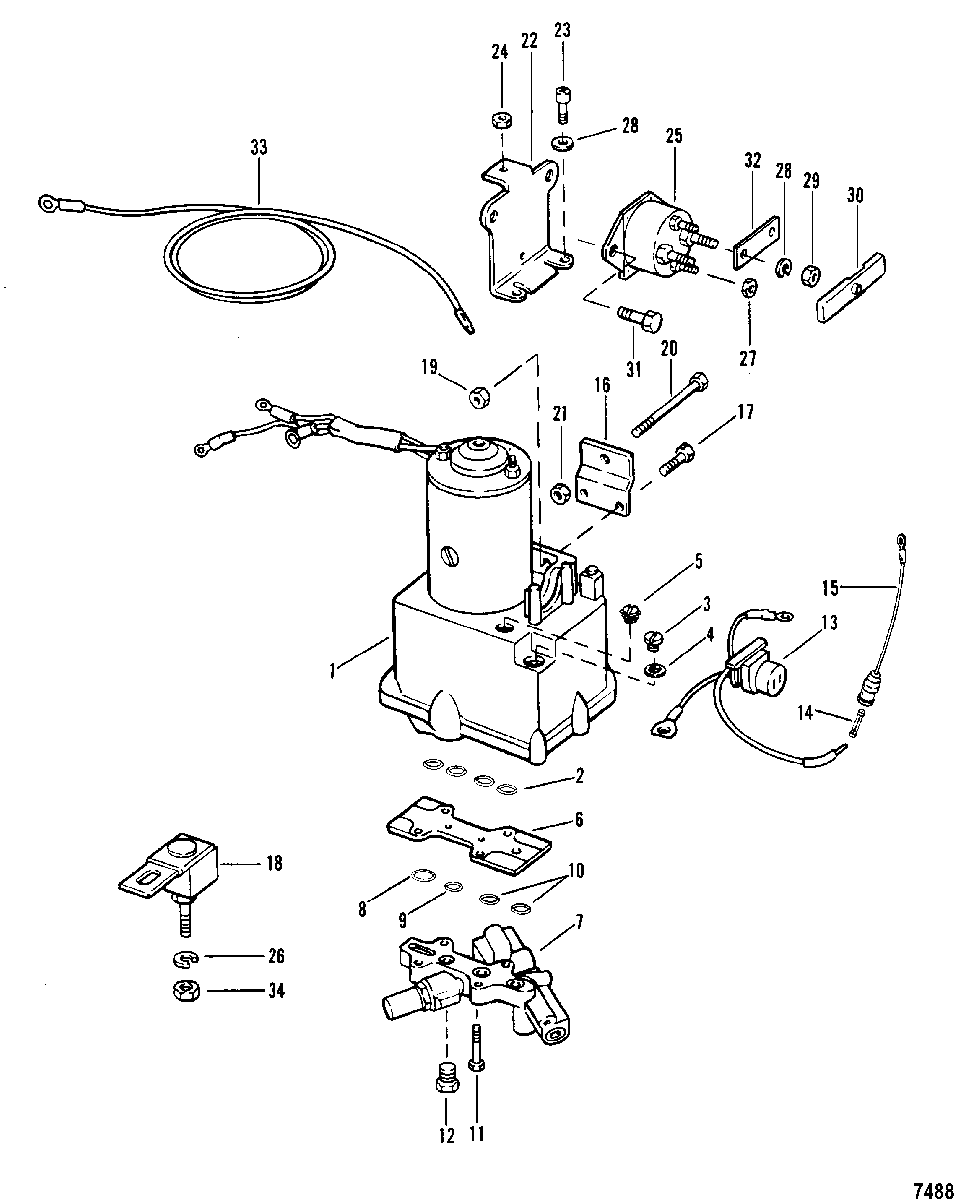

Power Trim Components(Electric Handle) для Mercury - 45 (4 CYL.) 9466692 & Up

  • №
    Артикул
    Название
  • 1
    92975A32 PUMP ASSEMBLY, Hydraulic
    PUMP ASSEMBLY, Hydraulic
  • 2
    25-48171 O-RING, (.364. x .070), Manifold Plate
    O-RING, (.364. x .070), Manifold Plate
  • 3
    10-79953Q04 SCREW, (.375-16 x .250), Filler - Hydraulic Pump
    SCREW, (.375-16 x .250), Filler - Hydraulic Pump
  • 4
    12-191833 WASHER, Fiber, Sealing Filler Screw
    WASHER, Fiber, Sealing Filler Screw
  • 5
    10-62269 SCREW, (#10-32 x .437), Vent - Hydraulic Pump Hydraulic Pump
    SCREW, (#10-32 x .437), Vent - Hydraulic Pump Hydraulic Pump
  • 6
    45336 PLATE, Manifold
    PLATE, Manifold
  • 7
    45197A2 VALVE ASSEMBLY, Control
    VALVE ASSEMBLY, Control
  • --
    25-48171 O-RING, (.364. x .070), Manifold Plate (See Reference. #2)
    O-RING, (.364. x .070), Manifold Plate (See Reference. #2)
  • 8
    25-45254 O-RING, Control Valve
    (0.75 Inch O.D.)
    O-RING, Control Valve
    (0.75 Inch O.D.)
  • 9
    25-48171 O-RING, (.364. x .070), Control Valve
    (0.50 Inch O.D.)
    O-RING, (.364. x .070), Control Valve
    (0.50 Inch O.D.)
  • 10
    25-45253 O-RING, Control Valve
    (0.625 Inch O.D.)
    O-RING, Control Valve
    (0.625 Inch O.D.)
  • 11
    10-56500 SCREW, (.250-28 x 1.250), Valve and Manifold Plate to Pump
    (1.25 Inch)
    SCREW, (.250-28 x 1.250), Valve and Manifold Plate to Pump
    (1.25 Inch)
  • 12
    22-46008 PLUG, Control Valve
    (0.50-20 Inch)
    PLUG, Control Valve
    (0.50-20 Inch)
  • 13
    84-79147A3 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 14
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 15
    84-95084A3 CABLE ASSEMBLY, Fuse
    CABLE ASSEMBLY, Fuse
  • 16
    45377T BRACKET, Mounting
    BRACKET, Mounting
  • 17
    10-35386 SCREW, (.312-18 x 1.00), Mounting Bracket to Hydraulic Pump
    SCREW, (.312-18 x 1.00), Mounting Bracket to Hydraulic Pump
  • 18
    88-79023T90 FUSE ASSEMBLY, 90 Ampere
    FUSE ASSEMBLY, 90 Ampere
  • 19
    11-21908 NUT, (.312-18) Cad Plated, Mounting Bracket Screw
    NUT, (.312-18) Cad Plated, Mounting Bracket Screw
  • 20
    10-31830 BOLT, (.375-24 x 1.75), Hydaulic Pump to Boat
    BOLT, (.375-24 x 1.75), Hydaulic Pump to Boat
  • 21
    11-46335 NUT, Hydaulic Pump Book
    NUT, Hydaulic Pump Book
  • 22
    94279 BRACKET, Mounting - Starter Solendied
    BRACKET, Mounting - Starter Solendied
  • 23
    10-48060 SCREW, (.250-14 x .625), Mounting Bracket to Hydraulic Pump
    SCREW, (.250-14 x .625), Mounting Bracket to Hydraulic Pump
  • 24
    11-826709106 NUT, (#10-32), Mounting Bracket to Hydraulic Pump through Bolt
    NUT, (#10-32), Mounting Bracket to Hydraulic Pump through Bolt
  • 25
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 26
    12-96457 WASHER, Phenolic (.27 x .81 x .062), Fuse Terminal
    WASHER, Phenolic (.27 x .81 x .062), Fuse Terminal
  • 27
    11-26419 NUT, (#8-32) Brass, Solenoid Terminal
    NUT, (#8-32) Brass, Solenoid Terminal
  • 28
    13-26992 LOCKWASHER, (.250) Stainless Steel, Solenoid Terminal
    LOCKWASHER, (.250) Stainless Steel, Solenoid Terminal
  • 29
    11-94330 NUT, (.250-20) Brass, Solenoid Terminal
    NUT, (.250-20) Brass, Solenoid Terminal
  • 30
    85-861680 BOOT, Rubber Starter Solenoid Terminal
    BOOT, Rubber Starter Solenoid Terminal
  • 31
    10-41508 SCREW, (.250-20 x .500) Stainless Steel, Starter Solenoid to Mounting Bracket
    SCREW, (.250-20 x .500) Stainless Steel, Starter Solenoid to Mounting Bracket
  • 32
    94275 LINK, Soleniod to Solenoid
    LINK, Soleniod to Solenoid
  • 33
    84-79139A13 CABLE ASSEMBLY, Battery
    (Positive)
    CABLE ASSEMBLY, Battery
    (Positive)
  • 34
    11-21825 NUT, (.250-28), Fuse Terminal
    NUT, (.250-28), Fuse Terminal
