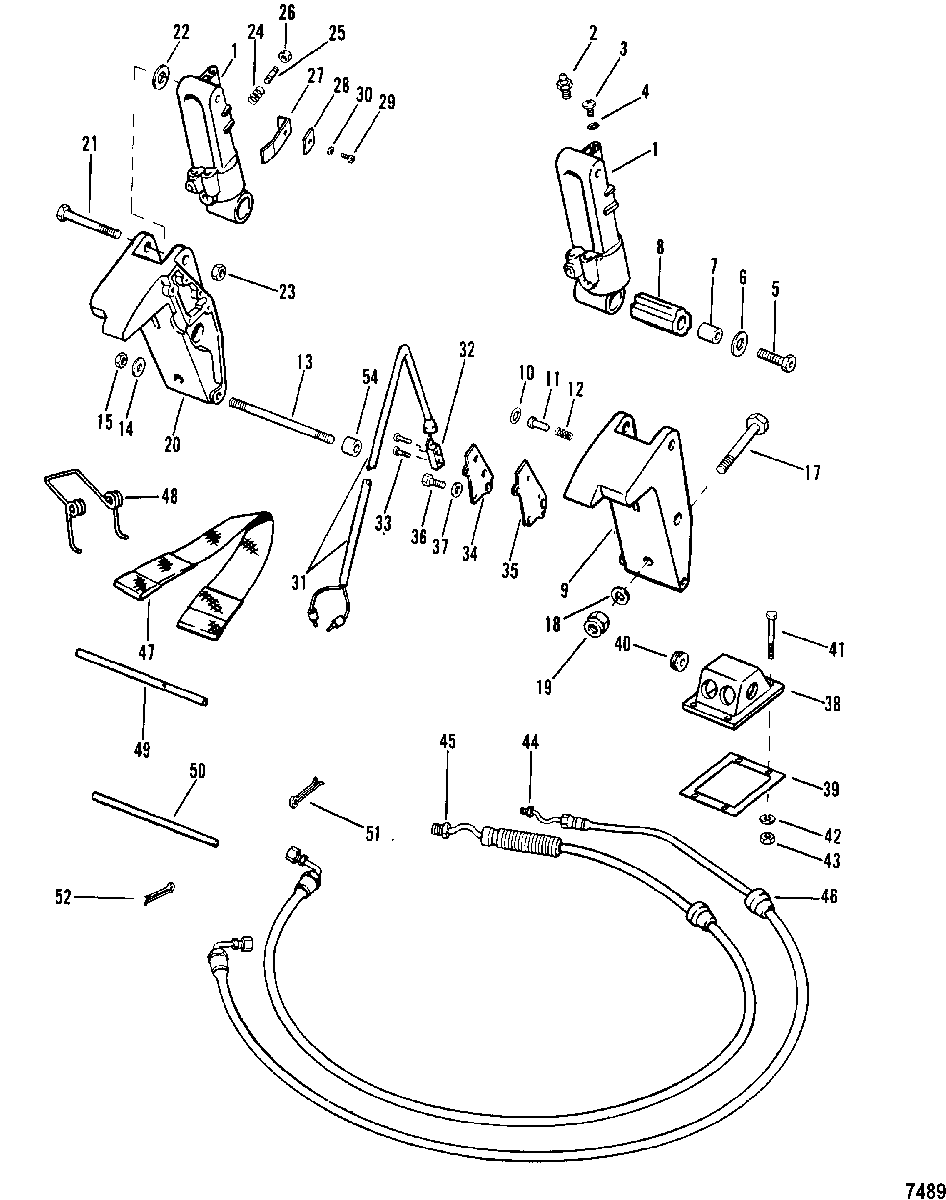

Trim Cylinders and Hoses(Electric Handle) для Mercury - 45 (4 CYL.) 0A719281 & Up

  • №
    Артикул
    Название
  • 1
    92194A14 TRIM CYLINDER
    (Black)
    TRIM CYLINDER
    (Black)
  • 1
    92194A20 TRIM CYLINDER
    (Gray)
    TRIM CYLINDER
    (Gray)
  • 2
    22-74036 FITTING, Grease, Trim Cylinder
    FITTING, Grease, Trim Cylinder
  • 3
    10-45265 SCREW, (#10-32 x .3125), Bleed
    SCREW, (#10-32 x .3125), Bleed
  • 4
    25-45016 O-RING, Bleed Screw
    O-RING, Bleed Screw
  • 5
    10-92050 SCREW, (.500-20 x 1.500), Trim Cylinder
    (1.50 Inch)
    SCREW, (.500-20 x 1.500), Trim Cylinder
    (1.50 Inch)
  • 6
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, Trim Cylinder Bolt
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, Trim Cylinder Bolt
  • 7
    23-45280 SPACER, Trim Cylinder - Lower
    SPACER, Trim Cylinder - Lower
  • 8
    23-94907A1 BUSHING, Rubber - Trim Cylinder
    BUSHING, Rubber - Trim Cylinder
  • 9
    89108A3 BRACKET, Trim Cylinder
    (Port)
    BRACKET, Trim Cylinder
    (Port)
  • 10
    26-70608 SEAL, Oil, Port Bracket
    SEAL, Oil, Port Bracket
  • 11
    89290 PLUNGER, Limit Switch Actuating
    PLUNGER, Limit Switch Actuating
  • 12
    24-95881 SPRING, Tension - Limit Switch Plunger
    SPRING, Tension - Limit Switch Plunger
  • 13
    16-45282 STUD, (.312-24 x 16.620), Mounting Bracket
    STUD, (.312-24 x 16.620), Mounting Bracket
  • 14
    13-26993 LOCKWASHER, (.312), Mounting Bracket Stud
    LOCKWASHER, (.312), Mounting Bracket Stud
  • 15
    11-28770 NUT, (.312-24) Stainless Steel, Mounting Bracket Stud
    NUT, (.312-24) Stainless Steel, Mounting Bracket Stud
  • 17
    10-68298 BOLT, (.375-16 x 3.250), Mounting Bracket to Transom
    (3.25 Inch)
    BOLT, (.375-16 x 3.250), Mounting Bracket to Transom
    (3.25 Inch)
  • 17
    10-89673 SCREW, (.375-16 x 5.00), Mounting Bracket to Transom
    (5.00 Inch)
    SCREW, (.375-16 x 5.00), Mounting Bracket to Transom
    (5.00 Inch)
  • 18
    12-46765 WASHER, Mounting Bracket Bolt
    WASHER, Mounting Bracket Bolt
  • 19
    11-82671112 NUT, Mounting Bracket Bolt
    NUT, Mounting Bracket Bolt
  • 20
    89111T BRACKET, Trim Cylinder
    (Starboard)
    BRACKET, Trim Cylinder
    (Starboard)
  • 21
    10-45328 SCREW, (.437-20 x 3.560), Trim Cylinder to Mounting Bracket
    (3.563 Inch)
    SCREW, (.437-20 x 3.560), Trim Cylinder to Mounting Bracket
    (3.563 Inch)
  • 22
    12-37807 WASHER, Trim Cylinder Screw
    (Starboard Only)
    WASHER, Trim Cylinder Screw
    (Starboard Only)
  • 23
    11-35053 NUT, (.437-20), Trim Cylinder Screw
    NUT, (.437-20), Trim Cylinder Screw
  • 24
    24-24390 SPRING, Tension - Adjusting Stud
    SPRING, Tension - Adjusting Stud
  • 25
    16-8M0034461 STUD, (#10-32 x .930), Adjusting - Cut - Out Limit Switch
    STUD, (#10-32 x .930), Adjusting - Cut - Out Limit Switch
  • 26
    11-859124 NUT, (#10-32) Stainless Steel, Jam - Limit Switch Adjusting Stud
    NUT, (#10-32) Stainless Steel, Jam - Limit Switch Adjusting Stud
  • 27
    99897 CAM, Limit Switch Adjusting Stud
    CAM, Limit Switch Adjusting Stud
  • 28
    86967 PLATE, Retaining - Limit Switch Cam
    PLATE, Retaining - Limit Switch Cam
  • 29
    10-68513 SCREW, (#10-32 x .375) Stainless Steel, Retaining Plate and Cam
    SCREW, (#10-32 x .375) Stainless Steel, Retaining Plate and Cam
  • 30
    13-26996 LOCKWASHER, (#10) Stainless Steel, Retaining Plate and Cam Screw
    LOCKWASHER, (#10) Stainless Steel, Retaining Plate and Cam Screw
  • 31
    45326A2 SWITCH ASSEMBLY, Cut - Out Limit
    SWITCH ASSEMBLY, Cut - Out Limit
  • 32
    23-45354 BUSHING, Rubber - Cut- Out Limit Switch
    BUSHING, Rubber - Cut- Out Limit Switch
  • 33
    10-47255 SCREW, (#4-40 x .625), Cut - Out Limit Switch
    (0.563 Inch)
    SCREW, (#4-40 x .625), Cut - Out Limit Switch
    (0.563 Inch)
  • 34
    89272 COVER, Limit Switch
    COVER, Limit Switch
  • 35
    27-892731 GASKET, Limit Switch Cover
    GASKET, Limit Switch Cover
  • 36
    10-34994 SCREW, (#10-32 x 1.00) Stainless Steel, Limit Switch Cover
    (0.438 Inch)
    SCREW, (#10-32 x 1.00) Stainless Steel, Limit Switch Cover
    (0.438 Inch)
  • 37
    12-38833 WASHER, Limit Switch Cover Screw
    WASHER, Limit Switch Cover Screw
  • 38
    87774A1 COVER, Inlet - Transom
    COVER, Inlet - Transom
  • 39
    27-87775 GASKET, Inlet Cover
    GASKET, Inlet Cover
  • 40
    25-45507 GROMMET, Rubber - Inlet Cover
    GROMMET, Rubber - Inlet Cover
  • 41
    10-36070 SCREW, (#10-32 x 1.250), Inlet Cover to Boat
    SCREW, (#10-32 x 1.250), Inlet Cover to Boat
  • 42
    13-26996 LOCKWASHER, (#10) Stainless Steel, Inlet Cover Screw
    LOCKWASHER, (#10) Stainless Steel, Inlet Cover Screw
  • 43
    11-68219 NUT, (#10-32) Stainless Steel, Inlet Cover Screw
    NUT, (#10-32) Stainless Steel, Inlet Cover Screw
  • 44
    32-88005 HOSE, Trim - Cylinder to Control Valve
    (5.375 Feet O.D.)
    HOSE, Trim - Cylinder to Control Valve
    (5.375 Feet O.D.)
  • 45
    32-88006 HOSE, Lift - Cylinder to Control Valve
    (5.321 Feet O.D.)
    HOSE, Lift - Cylinder to Control Valve
    (5.321 Feet O.D.)
  • 46
    23-35977 GROMMET, Rubber
    (0.375 Inch I.D. - 1 Inch Long)
    GROMMET, Rubber
    (0.375 Inch I.D. - 1 Inch Long)
  • 46
    23-35977 GROMMET, Rubber
    (0.375 Inch I.D. - 0.875 Inch Long)
    GROMMET, Rubber
    (0.375 Inch I.D. - 0.875 Inch Long)
  • 46
    25-12602002 GROMMET, Rubber
    (0.375 Inch I.D. - 0.875 Inch Long)
    GROMMET, Rubber
    (0.375 Inch I.D. - 0.875 Inch Long)
  • 47
    98876 STRAP
    STRAP
  • 48
    24-98875 SPRING
    SPRING
  • 49
    98878 PIN, Mounting Tube
    PIN, Mounting Tube
  • 50
    63473 TUBE, Cushion
    TUBE, Cushion
  • 51
    18-328571 COTTER PIN, Mounting Tub Pin
    COTTER PIN, Mounting Tub Pin
  • 52
    18-45882 COTTER PIN, Tilt Pin Retaining
    COTTER PIN, Tilt Pin Retaining
  • 54
    23-59623 SPACER, Mounting Bracket
    SPACER, Mounting Bracket
