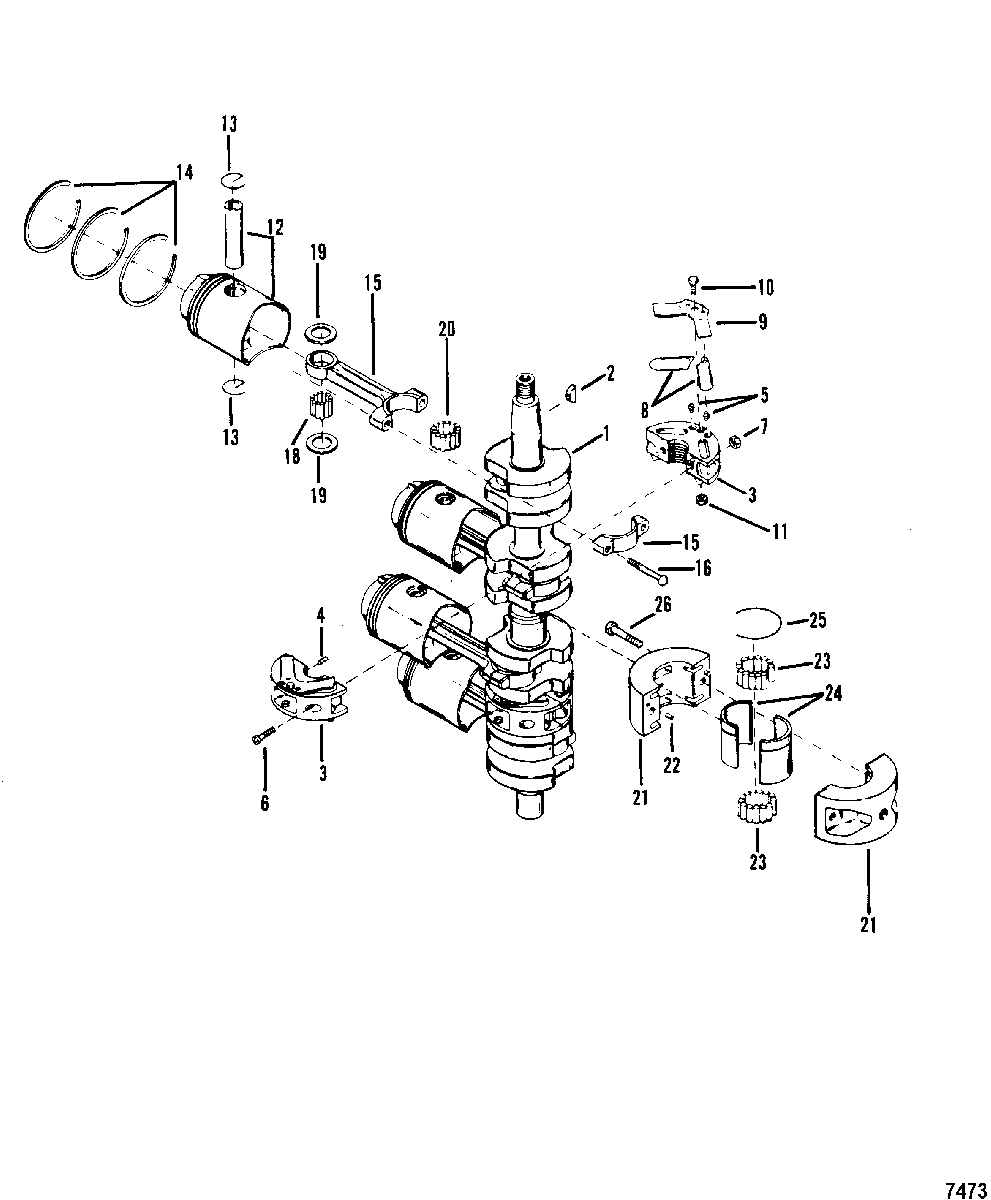

Crankshaft, Pistons, and Connecting Rods для Mercury - 45 (4 CYL.) 0A719281 & Up
-
№АртикулНазвание
-
1459-9075T CRANKSHAFTCRANKSHAFT
-
228-20094 KEY, Woodruff, CrankshaftKEY, Woodruff, Crankshaft
-
3534-3267T25 BEARING ASSEMBLY, Main, Valve TypeBEARING ASSEMBLY, Main, Valve Type
-
417-20032 PIN, Dowel, Main BearingPIN, Dowel, Main Bearing
-
517-65855 PIN, Dowel, Reed LocatingPIN, Dowel, Reed Locating
-
610-45775 SCREW, (#12-28 x .560) , Main Bearing (0.563 Inch)SCREW, (#12-28 x .560) , Main Bearing (0.563 Inch)
-
711-45774 NUT, Main Bearing ScrewNUT, Main Bearing Screw
-
834-88498A1 REED SET, MatchedREED SET, Matched
-
934-822839 STOP, ReedSTOP, Reed
-
1010-77280 SCREW, (.190-32 x .560), Reed Stop (0.563 Inch)SCREW, (.190-32 x .560), Reed Stop (0.563 Inch)
-
1111-20110 NUT, (#10-32), Reed Stop ScrewNUT, (#10-32), Reed Stop Screw
-
12780-9229A7 PISTON ASSEMBLY
(Standard)PISTON ASSEMBLY
(Standard) -
12780-9229A10 PISTON ASSEMBLY
(.015 Oversize)PISTON ASSEMBLY
(.015 Oversize) -
12780-9229A11 PISTON ASSEMBLY
(.030 Oversize)PISTON ASSEMBLY
(.030 Oversize) -
1340-828119 LOCK RING, Piston PinLOCK RING, Piston Pin
-
1439-27841A12 RING SET, Piston - Standard
(Standard)RING SET, Piston - Standard
(Standard) -
1439-28616A12 RING SET, Piston
(.015 Oversize)RING SET, Piston
(.015 Oversize) -
1439-89822A12 RING SET, Piston - .030 Oversize
(.030 Oversize)RING SET, Piston - .030 Oversize
(.030 Oversize) -
15632-7621A3 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1610-91012 SCREW, (.250-28 Special), Cap to RodSCREW, (.250-28 Special), Cap to Rod
-
1829-20063 BEARING, Needle, Piston PinBEARING, Needle, Piston Pin
-
1912-47275 WASHER, Needle LocatingWASHER, Needle Locating
-
2029-20046T BEARING, Needle, CrankpintBEARING, Needle, Crankpint
-
21547-7060A2 BEARING ASSEMBLY, Center MainBEARING ASSEMBLY, Center Main
-
2217-20032 PIN, Dowel, Center Main BearingPIN, Dowel, Center Main Bearing
-
2329-714221 BEARING, NeedleBEARING, Needle
-
2426113T RACE, OuterRACE, Outer
-
2553-26933 RING, Snap, Outer RaceRING, Snap, Outer Race
-
2610-76630 SCREW, (.250-20 x 1.00), Center Main Bearing (1 Inch)SCREW, (.250-20 x 1.00), Center Main Bearing (1 Inch)
