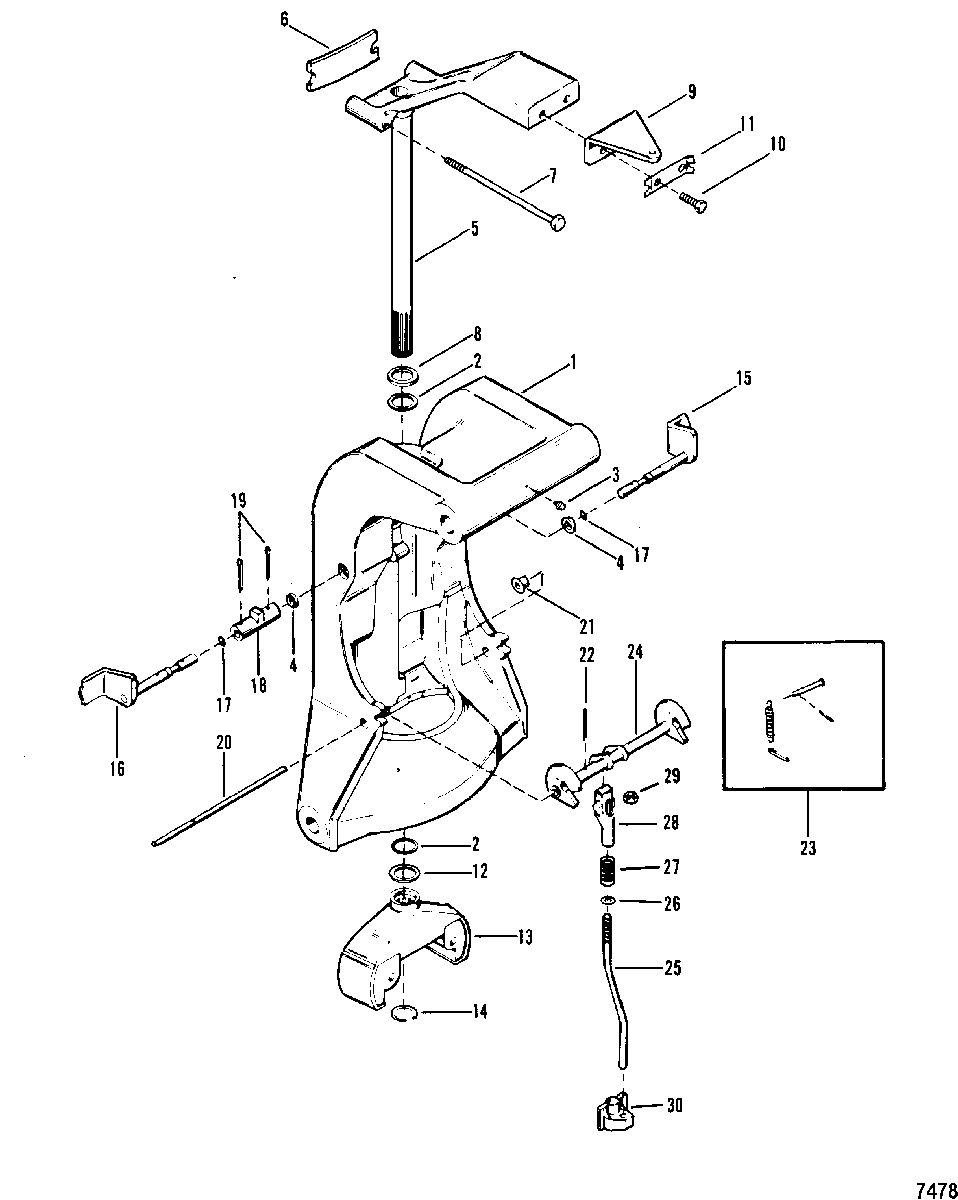

Swivel Bracket and Reverse Lock(Non Power Trim) для Mercury - 45 (4 CYL.) 0A719281 & Up
-
№АртикулНазвание
-
11489-8597A4 SWIVEL BRACKET
(Short Shaft)SWIVEL BRACKET
(Short Shaft) -
11490-8599A6 SWIVEL BRACKET
(Long Shaft)SWIVEL BRACKET
(Long Shaft) -
226-32911 SEAL, Oil, Swivel BracketSEAL, Oil, Swivel Bracket
-
322-74036 FITTING, GreaseFITTING, Grease
-
426-22734 SEAL, Oil, Swivel BracketSEAL, Oil, Swivel Bracket
-
588798A23 SWIVEL PIN ASSEMBLY, Two Piece Steering Arm
(Short Shaft)SWIVEL PIN ASSEMBLY, Two Piece Steering Arm
(Short Shaft) -
588798A24 SWIVEL PIN ASSEMBLY, Two Piece Steering Arm
(Long Shaft)SWIVEL PIN ASSEMBLY, Two Piece Steering Arm
(Long Shaft) -
569540A3 SWIVEL PIN ASSEMBLY, One Piece Steering Arm
(Short Shaft)SWIVEL PIN ASSEMBLY, One Piece Steering Arm
(Short Shaft) -
569540A4 SWIVEL PIN ASSEMBLY, One Piece Steering Arm
(Long Shaft)SWIVEL PIN ASSEMBLY, One Piece Steering Arm
(Long Shaft) -
630711 BUMPER, Steering ArmBUMPER, Steering Arm
-
710-66897 BOLT, (.437-20 x 5.250), Upper MOunt to Swivel Pin (5.25 Inch)BOLT, (.437-20 x 5.250), Upper MOunt to Swivel Pin (5.25 Inch)
-
812-47606 WASHER, Swivel Pin - LowerWASHER, Swivel Pin - Lower
-
976535T BRACKET, Ride - Guide
(Manual/Electric without Tiller Handle)BRACKET, Ride - Guide
(Manual/Electric without Tiller Handle) -
1010-34352 SCREW, (.375-24 x .875), Bracket
(Manual/Electric without Tiller Handle)SCREW, (.375-24 x .875), Bracket
(Manual/Electric without Tiller Handle) -
1176533 STRAP, Bracket Screw
(Manual/Electric without Tiller Handle)STRAP, Bracket Screw
(Manual/Electric without Tiller Handle) -
1212-25176 WASHER, Swivel Pin to Bottom Yoke (.060)WASHER, Swivel Pin to Bottom Yoke (.060)
-
1377416T1 YOKE, Bottom
(Black)YOKE, Bottom
(Black) -
1377416T6 YOKE, Bottom
(Gray)YOKE, Bottom
(Gray) -
1453-77415 RETAINING RING, Bottom YokeRETAINING RING, Bottom Yoke
-
15/1689105 TILT LOCK
(Starboard/Port)TILT LOCK
(Starboard/Port) -
15/1699431A1 TILT LOCK
(Handle Models)TILT LOCK
(Handle Models) -
1725-627021 O-RING, (.301 x .070), Tilt LockO-RING, (.301 x .070), Tilt Lock
-
1879659 COUPLING, Tilt LockCOUPLING, Tilt Lock
-
1918-47959 COTTER PIN, Tilt Lock TubeCOTTER PIN, Tilt Lock Tube
-
2056349 SHAFT, Reverse Lock PivotSHAFT, Reverse Lock Pivot
-
2123-69132 BUSHING, Reverse Pivot ShaftBUSHING, Reverse Pivot Shaft
-
2218-45882 COTTER PIN, Reverse Lock to ShaftCOTTER PIN, Reverse Lock to Shaft
-
2324-78203A2 SPRING, Reverse Lock TensionSPRING, Reverse Lock Tension
-
2414664A3 REVERESE LOCKREVERESE LOCK
-
2543415 PUSH ROD, Reverse Lock
(Short Shaft)PUSH ROD, Reverse Lock
(Short Shaft) -
2543416 PUSH ROD, Reverse Lock
(Long Shaft)PUSH ROD, Reverse Lock
(Long Shaft) -
2612-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, Push RodWASHER, (.323 x .563 x .063) Stainless Steel, Push Rod
-
2724-44297 SPRING, Push RodSPRING, Push Rod
-
2889813 ROD END, Push RodROD END, Push Rod
-
2911-82670911 NUT, (.312-24) Stainless Steel, Push RodNUT, (.312-24) Stainless Steel, Push Rod
-
30933361 GUIDE, Push RodGUIDE, Push Rod
-
-27-85491A90 GASKET SETGASKET SET
