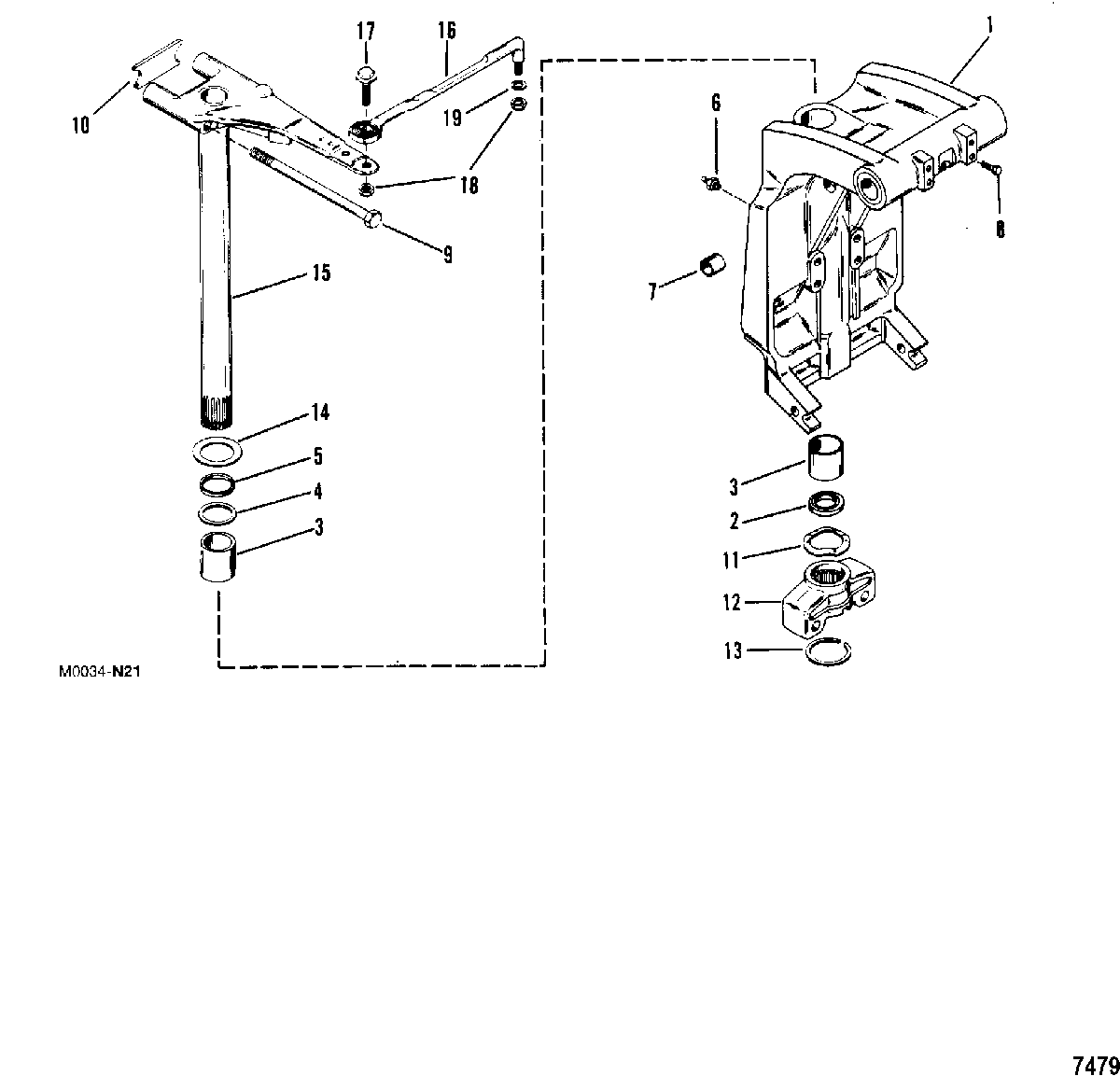

Swivel Bracket and Steering Arm для Mercury - 45 (4 CYL.) 0A719281 & Up

  • №
    Артикул
    Название
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY
    (Black)
    SWIVEL BRACKET ASSEMBLY
    (Black)
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY
    (Gray)
    SWIVEL BRACKET ASSEMBLY
    (Gray)
  • 2
    26-87735 SEAL, Oil, Swivel Bracket (Lower)
    SEAL, Oil, Swivel Bracket (Lower)
  • 3
    23-818764 BUSHING, Swivel Bracket (Lower and Upper)
    BUSHING, Swivel Bracket (Lower and Upper)
  • 4
    25-33466 O-RING, Swivel Bracket (Upper)
    O-RING, Swivel Bracket (Upper)
  • 5
    23-67668 SPACER, Swivel Bracket (Upper)
    SPACER, Swivel Bracket (Upper)
  • 6
    22-74036 FITTING, Grease, Grease
    FITTING, Grease, Grease
  • 7
    23-821207 BUSHING, Swivel Bracket
    BUSHING, Swivel Bracket
  • 8
    10-64014 SCREW, (.250-28 x .500), Swivel Bracket
    SCREW, (.250-28 x .500), Swivel Bracket
  • 9
    10-99621 SCREW, (.437-20 x 6.620), Steering Arm to Upper Mount
    SCREW, (.437-20 x 6.620), Steering Arm to Upper Mount
  • 10
    28203 BUMPER, Top Yoke
    BUMPER, Top Yoke
  • 11
    13-78854 WAVE WASHER, Bottom Yoke
    WAVE WASHER, Bottom Yoke
  • 12
    42961T YOKE, Bottom
    (Black)
    YOKE, Bottom
    (Black)
  • 12
    42961T6 YOKE, Bottom
    (Gray)
    YOKE, Bottom
    (Gray)
  • 13
    53-67684 RING, Retaining, Bottom Yoke
    RING, Retaining, Bottom Yoke
  • 14
    12-67670 WASHER, Thrust - Swivel Bracket
    WASHER, Thrust - Swivel Bracket
  • 15
    99661A2 SWIVEL PIN ASSEMBLY
    SWIVEL PIN ASSEMBLY
  • 16
    92876A12 LINK ASSEMBLY, Steering
    LINK ASSEMBLY, Steering
  • 17
    10-849838 SCREW, (.375-24 x 1.25), Steering Link to Steering Arm
    SCREW, (.375-24 x 1.25), Steering Link to Steering Arm
  • 18
    11-8M0042636 NUT, (.375-24), Steering Link Screw
    NUT, (.375-24), Steering Link Screw
  • 19
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel, Steering Link to Steering Arm
    WASHER, (.406 x .734 x .063) Stainless Steel, Steering Link to Steering Arm
  • -
    27-85491A90 GASKET SET
    GASKET SET
