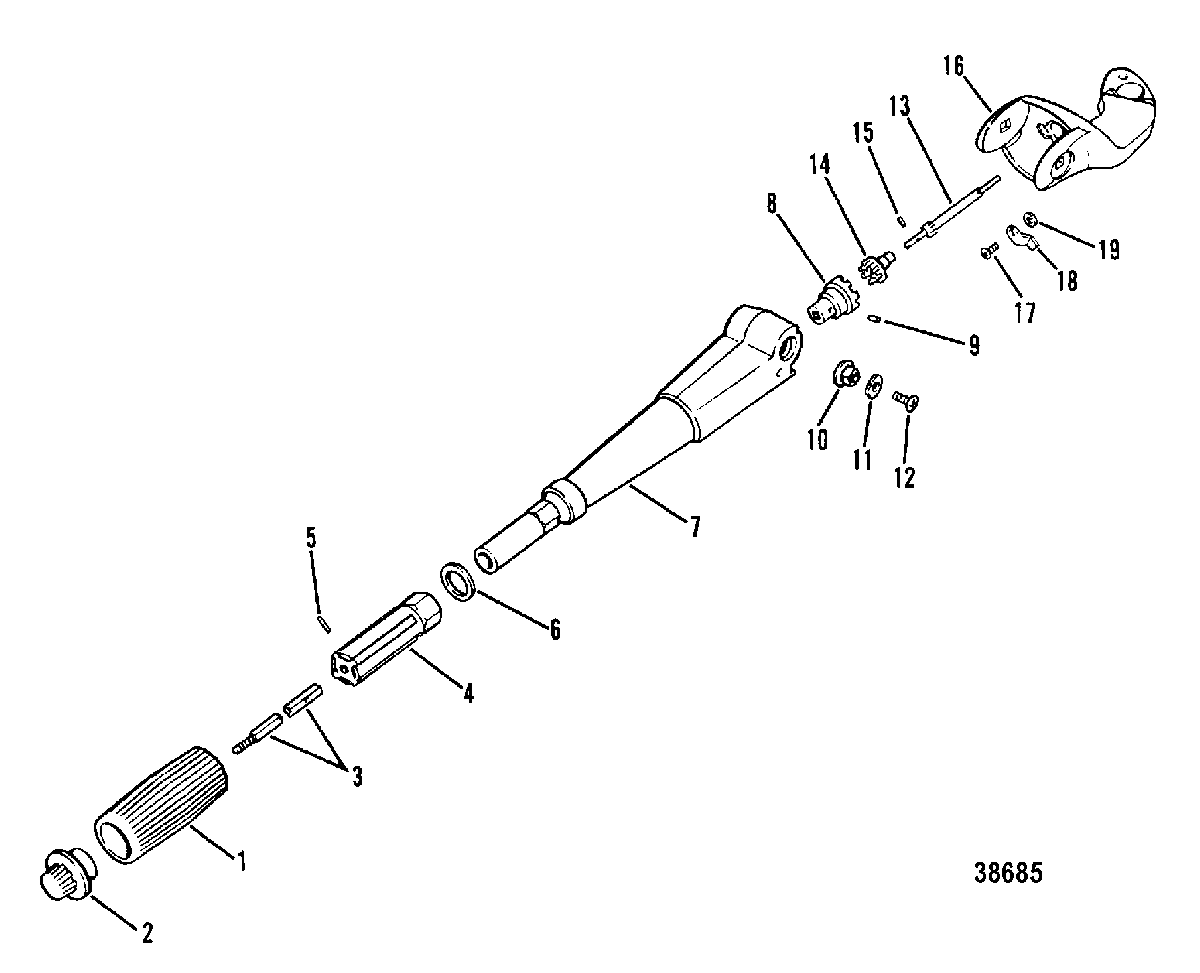

STEERING HANDLE ASSEMBLY для Mercury - 4.5 (1 CYL.) 7147238 & Up

  • №
    Артикул
    Название
  • -
    60850A6 HANDLE ASSEMBLY, Steering, COMPLETE
    HANDLE ASSEMBLY, Steering, COMPLETE
  • 1
    60854 GRIP, HANDLE - THROTTLE
    GRIP, HANDLE - THROTTLE
  • 2
    62251 CAP, HANDLE THROTTLE
    CAP, HANDLE THROTTLE
  • 3
    66393 SHAFT
    SHAFT
  • 4
    66394A1 HANDLE ASSEMBLY, THROTTLE SHAFT
    HANDLE ASSEMBLY, THROTTLE SHAFT
  • 5
    17-46152 PIN, THROTTLE HANDLE
    PIN, THROTTLE HANDLE
  • 6
    12-62252 WASHER, THROTTLE HANDLE TO STEERING ARM
    WASHER, THROTTLE HANDLE TO STEERING ARM
  • 7
    60850 ARM, STEERING HANDLE
    ARM, STEERING HANDLE
  • 8
    43-60852 GEAR, THROTTLE SHAFT
    GEAR, THROTTLE SHAFT
  • 9
    17-27088 PIN, BALL GEAR TO THROTTLE SHAFT
    PIN, BALL GEAR TO THROTTLE SHAFT
  • 10
    48003 PIVOT, STEEIRNG HANDLE TO BRACKET
    PIVOT, STEEIRNG HANDLE TO BRACKET
  • 11
    15-48002015 SHIM, HANDLE PIVOT TO BRACKET (.015)
    SHIM, HANDLE PIVOT TO BRACKET (.015)
  • 12
    10-96138 SCREW, (.250-28 x .620), HANDLE TO ARM BRACKET
    SCREW, (.250-28 x .620), HANDLE TO ARM BRACKET
  • 13
    60857A2 UNIVERSAL JOINT ASSEMBLY
    UNIVERSAL JOINT ASSEMBLY
  • 14
    43-60852 GEAR, UNIVERSAL JOINT
    GEAR, UNIVERSAL JOINT
  • 15
    17-27088 PIN, BALL GEAR TO UNIVERSAL JOINT
    PIN, BALL GEAR TO UNIVERSAL JOINT
  • 16
    96130A1 BRACKET, STEERING ARM
    BRACKET, STEERING ARM
  • 17
    10-62233 SCREW, (#10-16 x .625), DETENT SPRING TO BRACKET
    SCREW, (#10-16 x .625), DETENT SPRING TO BRACKET
  • 18
    24-72847 SPRING, DETENT - STEERING HANDLE
    SPRING, DETENT - STEERING HANDLE
  • 19
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, DETENT SPRING SCREW
    WASHER, (.192 x .375 x .0312) Stainless Steel, DETENT SPRING SCREW
