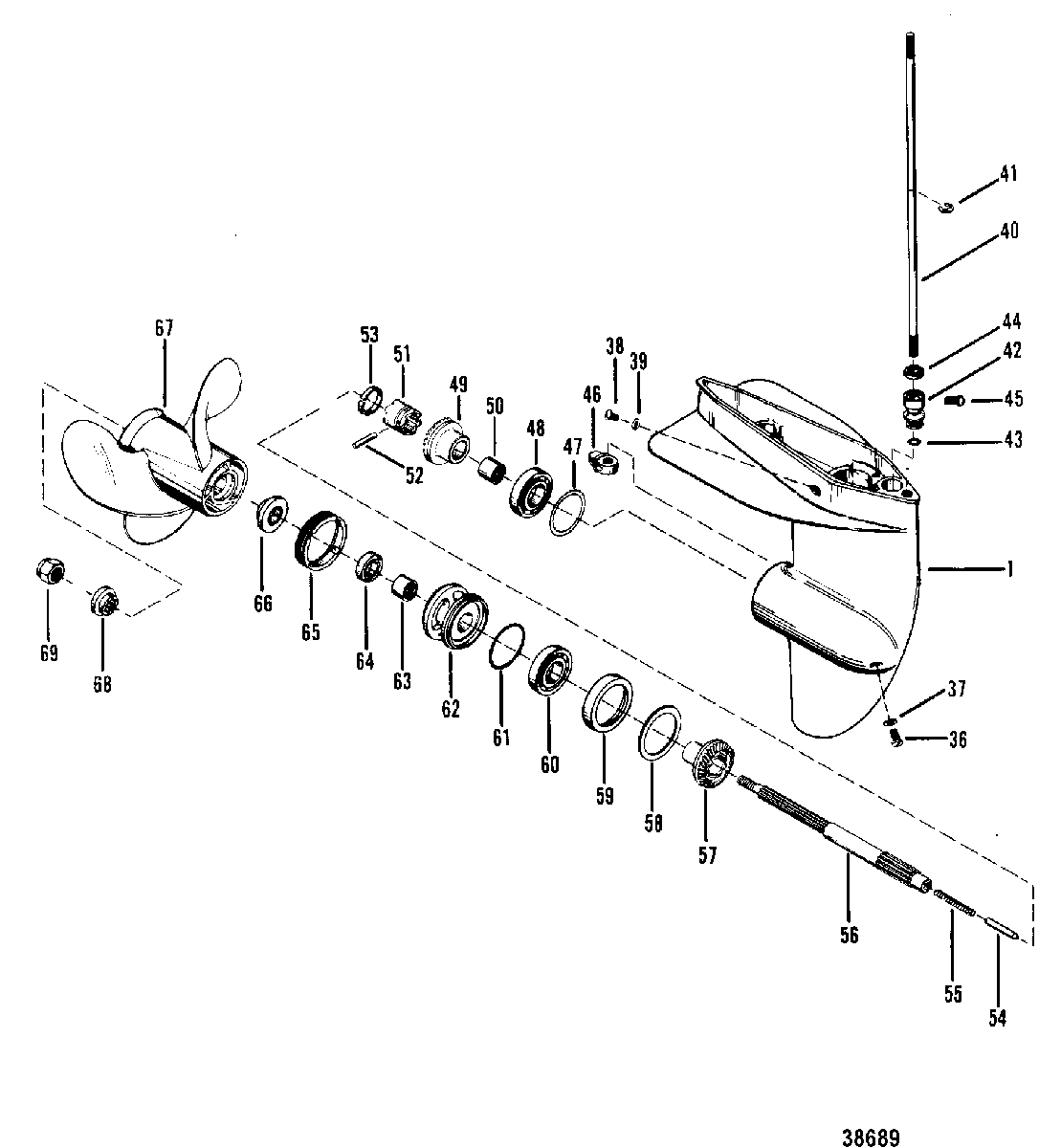

GEAR HOUSING(PROPELLER SHAFT) для Mercury - 4.5 (1 CYL.) 7147238 & Up

  • №
    Артикул
    Название
  • -
    1630-7360A29 GEAR HOUSING ASSEMBLY, COMPLETE
    (SHORT SHAFT)
    GEAR HOUSING ASSEMBLY, COMPLETE
    (SHORT SHAFT)
  • -
    1630-7360A30 GEAR HOUSING ASSEMBLY, COMPLETE
    (LONG SHAFT)
    GEAR HOUSING ASSEMBLY, COMPLETE
    (LONG SHAFT)
  • 1
    1630-7360A11 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 36
    10-79953Q04 SCREW, (.375-16 x .250), GREASE FILLER HOLE
    SCREW, (.375-16 x .250), GREASE FILLER HOLE
  • 37
    12-191833 WASHER, GREASE FILLER HOLE SCREW
    WASHER, GREASE FILLER HOLE SCREW
  • 38
    10-28653 SCREW, (#10-32 x 0.25), GREASE VENT HOLE
    SCREW, (#10-32 x 0.25), GREASE VENT HOLE
  • 39
    19643 WASHER, GREASE VENT HOLE SCREW
    WASHER, GREASE VENT HOLE SCREW
  • 40
    71659A1 SHIFT SHAFT ASSEMLBY, SHIFT
    (SHORT SHAFT)
    SHIFT SHAFT ASSEMLBY, SHIFT
    (SHORT SHAFT)
  • 40
    71658A1 SHIFT SHAFT ASSEMBLY, SHIFT
    (LONG SHAFT)
    SHIFT SHAFT ASSEMBLY, SHIFT
    (LONG SHAFT)
  • 41
    53-22899 RING, Retaining, SHIFT SHAFT
    RING, Retaining, SHIFT SHAFT
  • 42
    23-30676A1 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 43
    25-26802 O-RING, (.424 x .103), SHIFT SHAFT BUSHING
    O-RING, (.424 x .103), SHIFT SHAFT BUSHING
  • 44
    26-30696 SEAL, Oil, SHIFT SHAFT BUSHING
    SEAL, Oil, SHIFT SHAFT BUSHING
  • 45
    10-39149 SCREW, (#10-24 x .500)
    SCREW, (#10-24 x .500)
  • 46
    44434 CAM
    CAM
  • 47
    15-30522A1 SHIM ASSEMBLY (.002-3-5-10)
    SHIM ASSEMBLY (.002-3-5-10)
  • 48
    30-21889 BEARING, Ball, FORWARD GEAR
    BEARING, Ball, FORWARD GEAR
  • 49
    43-48577A3 GEAR ASSEMBLY, Forward
    GEAR ASSEMBLY, Forward
  • 50
    31-22458 BEARING, Roller, FORWARD GEAR
    BEARING, Roller, FORWARD GEAR
  • 51
    52-63314 RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 52
    17-30535 PIN, Cross, RATCHET TO PROPELLER SHAFT
    PIN, Cross, RATCHET TO PROPELLER SHAFT
  • 53
    53-32449 RING, Retaining, CROSS PIN
    RING, Retaining, CROSS PIN
  • 54
    31334 FOLLOWER
    FOLLOWER
  • 55
    24-76298 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 56
    44-75667A2 PROELLER SHAFT ASSEMBLY
    PROELLER SHAFT ASSEMBLY
  • 57
    43-63316 GEAR, Reverse
    GEAR, Reverse
  • 58
    71479 SLEEVE, THRUST - REVERSE GEAR
    SLEEVE, THRUST - REVERSE GEAR
  • 59
    15-30532A1 SHIM ASSEMBLY (.002-3-5-10)
    SHIM ASSEMBLY (.002-3-5-10)
  • 60
    30-21889 BEARING, Ball, REVERSE GEAR
    BEARING, Ball, REVERSE GEAR
  • 61
    25-30529 O-RING, (1.925 x .103), BEARING CARRIER
    O-RING, (1.925 x .103), BEARING CARRIER
  • 62
    72673T1 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 63
    31-22458 BEARING, Roller, BEARING CARRIER
    BEARING, Roller, BEARING CARRIER
  • 64
    26-66022 SEAL, Oil, BEARING CARRIER
    SEAL, Oil, BEARING CARRIER
  • 65
    86236 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 66
    86665A1 COLLAR, PROPELLER
    COLLAR, PROPELLER
  • 67
    48-63494A10 PROPELLER ASSEMBLY
    (2 BLADE - ALUMINUM - 7" PITCH)
    PROPELLER ASSEMBLY
    (2 BLADE - ALUMINUM - 7" PITCH)
  • 67
    48-63494A10 PROPELLER ASSEMBLY
    (2 BLADE ALUMINUM - 6" PITCH)
    PROPELLER ASSEMBLY
    (2 BLADE ALUMINUM - 6" PITCH)
  • 68
    11-64075A1 SPACER, SPLINED - PROPELLER NUT
    SPACER, SPLINED - PROPELLER NUT
  • 69
    11-64075A1 NUT
    NUT
  • -
    27-78139A80 GASKET SET
    GASKET SET
