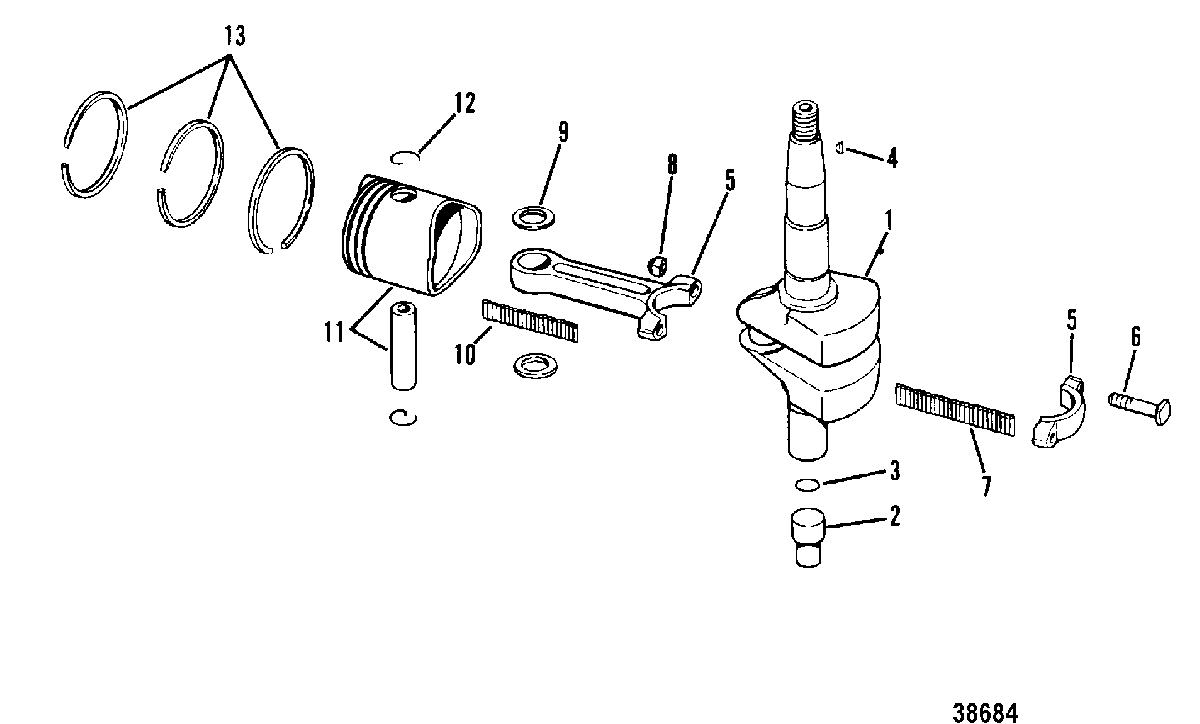

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 4.5 (1 CYL.) 7147238 & Up

  • №
    Артикул
    Название
  • 1
    427-7334A2 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    79952A1 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 3
    25-62704 O-RING, (.362 x .103)
    O-RING, (.362 x .103)
  • 4
    28-20094 KEY, Woodruff, CRANKSHAFT
    KEY, Woodruff, CRANKSHAFT
  • 5
    608-7395A2 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 6
    10-87374 SCREW, (.250-28 x 1.030), CONNECTING ROD
    SCREW, (.250-28 x 1.030), CONNECTING ROD
  • 7
    31-8M0045032 BEARING, Needle, CRANKPIN
    BEARING, Needle, CRANKPIN
  • 8
    11-20061 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 9
    12-65967 WASHER, NEEDLE BEARING RETAINING
    WASHER, NEEDLE BEARING RETAINING
  • 10
    29-31505 BEARING, Needle, PISTON PIN
    BEARING, Needle, PISTON PIN
  • 11
    719-7391T3 PISTON ASSEMBLY
    PISTON ASSEMBLY
  • 12
    40-21666 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 13
    39-21665A12 RING SET, Piston
    RING SET, Piston
  • -
    27-78139A80 GASKET SET
    GASKET SET
