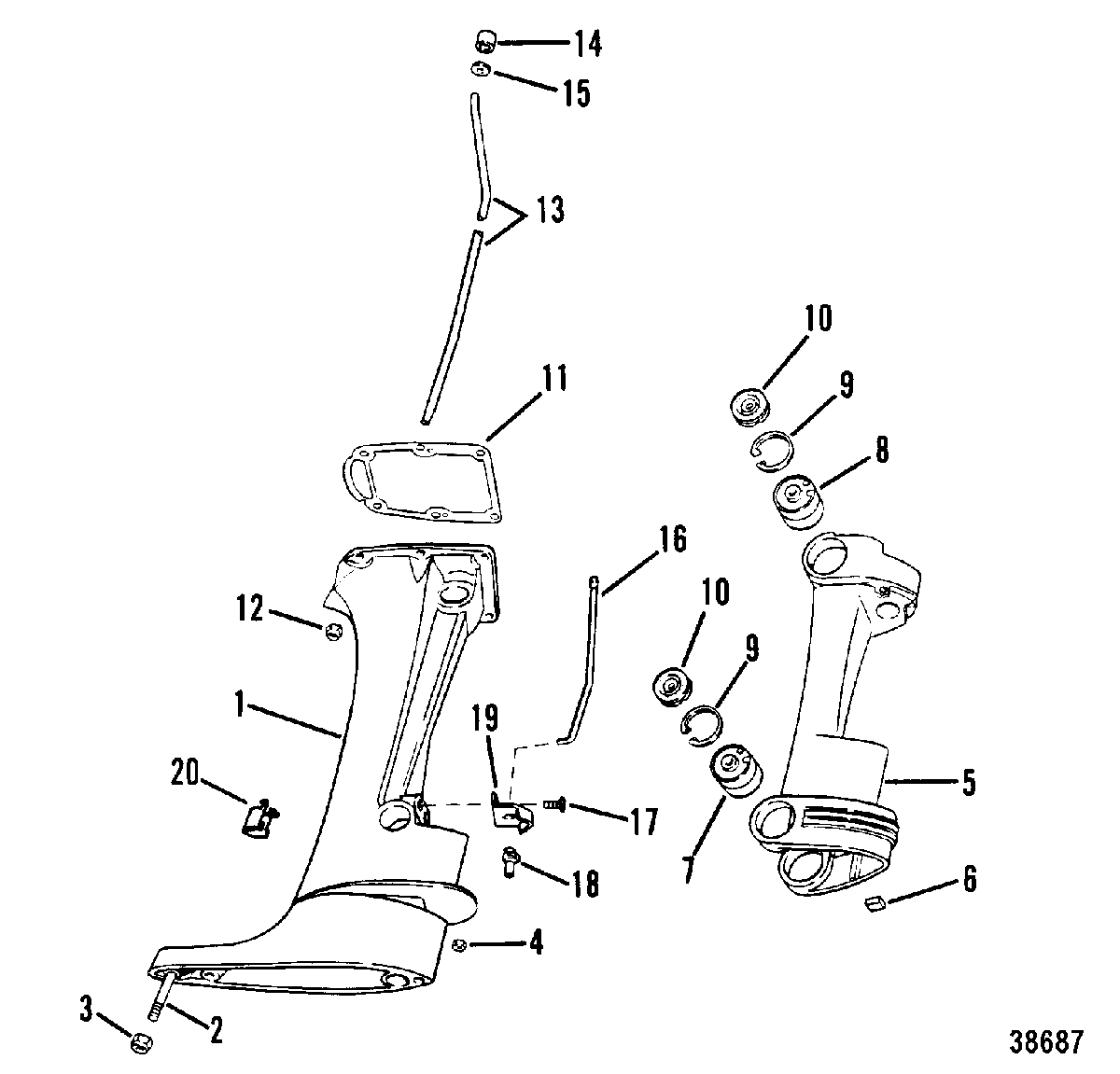

DRIVESHAFT HOUSING ASSEMBLY для Mercury - 4.5 (1 CYL.) 7147238 & Up

  • №
    Артикул
    Название
  • 1
    1538-8456A1 HOUSING ASSEMBLY, Driveshaft
    (SHORT SHAFT)
    HOUSING ASSEMBLY, Driveshaft
    (SHORT SHAFT)
  • 1
    1542-8452A1 HOUSING ASSEMBLY, Driveshaft
    (LONG SHAFT)
    HOUSING ASSEMBLY, Driveshaft
    (LONG SHAFT)
  • 2
    16-66373 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
  • 3
    11-82670911 NUT, (.312-24) Stainless Steel, DRIVE SHAFT HOUSING STUD
    NUT, (.312-24) Stainless Steel, DRIVE SHAFT HOUSING STUD
  • 4
    11-8M0042636 NUT, (.375-24), GEAR HOUSING STUD
    NUT, (.375-24), GEAR HOUSING STUD
  • 5
    1539-8450A1 SADDLE
    SADDLE
  • 6
    64076 BUMPER, THRUST - SADDLE
    BUMPER, THRUST - SADDLE
  • 7
    79896A1 MOUNT, LOWER
    (SHORT SHAFT)
    MOUNT, LOWER
    (SHORT SHAFT)
  • 7
    79896A1 MOUNT, LOWER
    (LONG SHAFT)
    MOUNT, LOWER
    (LONG SHAFT)
  • 8
    79985A1 MOUNT ASSEMBLY, UPPER
    (SHORT SHAFT)
    MOUNT ASSEMBLY, UPPER
    (SHORT SHAFT)
  • 8
    79896A1 MOUNT, UPPER
    (LONG SHAFT)
    MOUNT, UPPER
    (LONG SHAFT)
  • 9
    53-26406 RING, UPPER AND LOWER MOUNT
    RING, UPPER AND LOWER MOUNT
  • 10
    79907 COVER, UPPER AND LOWER MOUNT
    COVER, UPPER AND LOWER MOUNT
  • 11
    27-59079 GASKET
    GASKET
  • 12
    11-24652 NUT, (.250-28)
    NUT, (.250-28)
  • 13
    32-31940 TUBE, WATER OUTLET
    (SHORT SHAFT)
    TUBE, WATER OUTLET
    (SHORT SHAFT)
  • 13
    32-32077 TUBE, WATER OUTLET
    (LONG SHAFT)
    TUBE, WATER OUTLET
    (LONG SHAFT)
  • 14
    26-36556 SEAL, (.500 Inch Outside Diameter), RUBBER - WATER OUTLET TUBE
    SEAL, (.500 Inch Outside Diameter), RUBBER - WATER OUTLET TUBE
  • 15
    23-13127 SPACER, NYLON - OUTLET TUBE SEAL
    SPACER, NYLON - OUTLET TUBE SEAL
  • 16
    71057 LINK ROD, REVERSE LOCK
    LINK ROD, REVERSE LOCK
  • 17
    10-65414 SCREW
    SCREW
  • 18
    65216 CAM, REVERSE LOCK
    CAM, REVERSE LOCK
  • 19
    72007 RETAINER, REVERSE LOCK CAM
    RETAINER, REVERSE LOCK CAM
  • 20
    93145 BLOCK, DRIVESHAFT
    (LONG SHAFT)
    BLOCK, DRIVESHAFT
    (LONG SHAFT)
  • -
    27-78139A80 GASKET SET
    GASKET SET
