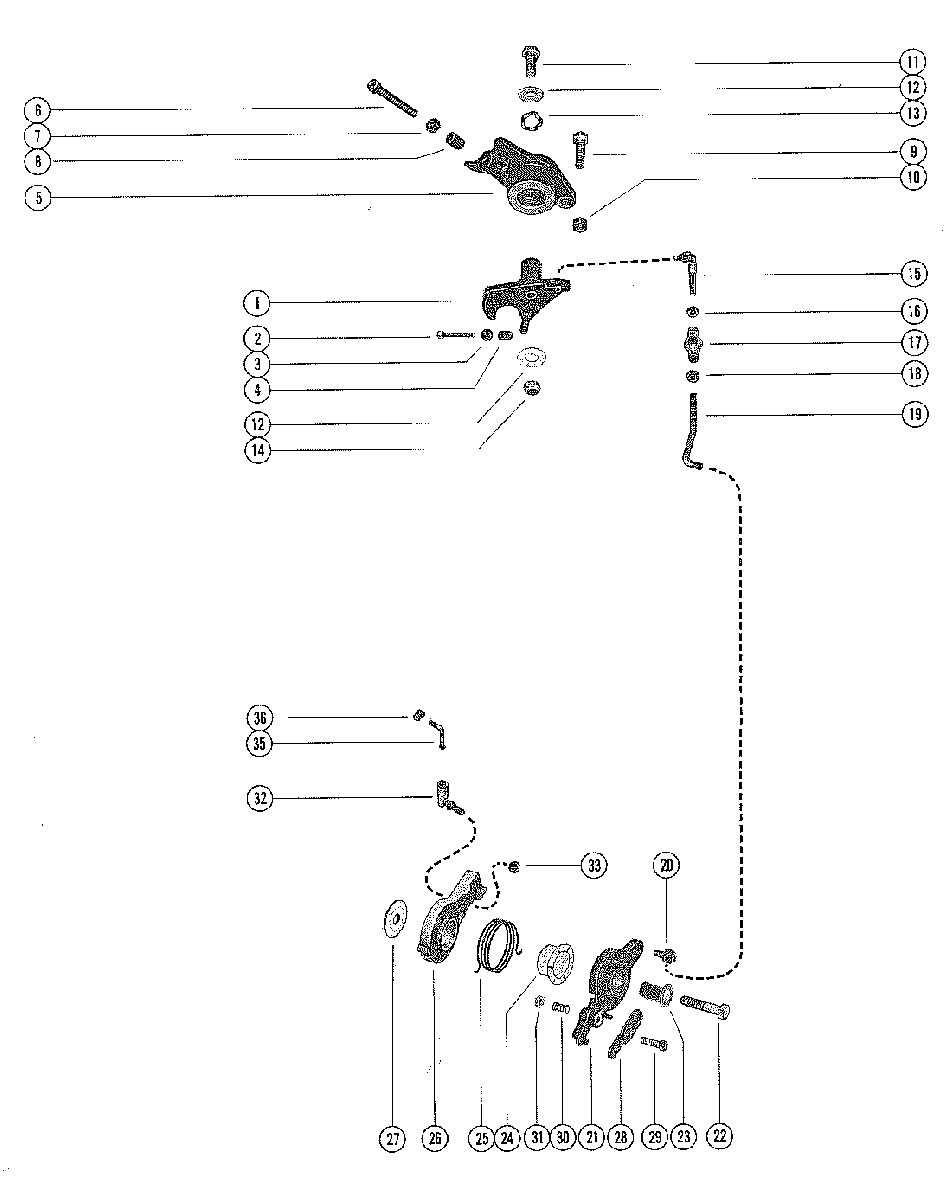

THROTTLE CONTROL LINKAGE AND SPARK ADVANCE для Mercury - 402, 40 (2 CYL.) 9184451 THRU 9251455

  • №
    Артикул
    Название
  • 1
    95044A1 THROTTLE CAM ACTUATOR
    THROTTLE CAM ACTUATOR
  • 2
    10-63102 SCREW, ADJUSTING - THROTTLE CAM
    SCREW, ADJUSTING - THROTTLE CAM
  • 3
    11-64015 NUT, JAM - ADJUSTING SCREW
    NUT, JAM - ADJUSTING SCREW
  • 4
    26852 CAP, NYLON - ADJUSTING SCREW
    CAP, NYLON - ADJUSTING SCREW
  • 5
    39522T BRACKET, THROTTLE CONTROL SHAFT
    (NOT AS SHOWN)
    BRACKET, THROTTLE CONTROL SHAFT
    (NOT AS SHOWN)
  • 6
    10-64021 SCREW, ADJUSTING - THROTTLE CONTROL BRACKET
    (1 7/8")
    SCREW, ADJUSTING - THROTTLE CONTROL BRACKET
    (1 7/8")
  • 7
    11-64015 NUT, JAM - ADJUSTING SCREW
    NUT, JAM - ADJUSTING SCREW
  • 8
    26852 CAP, NYLON - ADJUSTING SCREW
    CAP, NYLON - ADJUSTING SCREW
  • 9
    10-20639 SCREW, THROTTLE CONTROL BRACKET (1 1/8")
    SCREW, THROTTLE CONTROL BRACKET (1 1/8")
  • 10
    11-29250 NUT, THROTTLE CONTROL BRACKET SCREW
    NUT, THROTTLE CONTROL BRACKET SCREW
  • 11
    10-34438 SCREW
    THROTTLE CONTROL BRACKET TO THROTTLE CAM (2 3/8")
    SCREW
    THROTTLE CONTROL BRACKET TO THROTTLE CAM (2 3/8")
  • 12
    12-25893 WASHER
    THROTTLE CONTROL BRACKET TO THROTTLE CAM SCREW
    WASHER
    THROTTLE CONTROL BRACKET TO THROTTLE CAM SCREW
  • 13
    13-62172 WAVE WASHER
    THROTTLE BRACKET/THROTTLE CAM SCREW
    WAVE WASHER
    THROTTLE BRACKET/THROTTLE CAM SCREW
  • 14
    11-29250 NUT
    THROTTLE CONTROL BRACKET TO THROTTLE CAM SCREW
    NUT
    THROTTLE CONTROL BRACKET TO THROTTLE CAM SCREW
  • 15
    95044A1 BALL JOINT, THROTTLE CAM
    BALL JOINT, THROTTLE CAM
  • 16
    11-20013 NUT, JAM - BALL JOINT TO TURNBUCKLE
    NUT, JAM - BALL JOINT TO TURNBUCKLE
  • 17
    95044A1 TURNBUCKLE, SPARK ADVANCE LINKAGE
    TURNBUCKLE, SPARK ADVANCE LINKAGE
  • 18
    11-20754 NUT, JAM - UPPER LINK ROD TO TURNBUCKLE
    NUT, JAM - UPPER LINK ROD TO TURNBUCKLE
  • 19
    95044A1 ROD, LINK - UPPER
    ROD, LINK - UPPER
  • 20
    57440 SWIVEL, UPPER LINK ROD
    THROTTLE CONTROL LEVER
    SWIVEL, UPPER LINK ROD
    THROTTLE CONTROL LEVER
  • 21
    95044A1 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 22
    10-818165 SCREW
    THROTTLE CONTROL LEVER TO CYLINDER BLOCK (1 3/4")
    SCREW
    THROTTLE CONTROL LEVER TO CYLINDER BLOCK (1 3/4")
  • 23
    23-55164 BUSHING, THROTTLE CONTROL LEVER SCREW
    BUSHING, THROTTLE CONTROL LEVER SCREW
  • 24
    23-55171 BUSHING, THROTTLE CONTROL LEVER SCREW
    BUSHING, THROTTLE CONTROL LEVER SCREW
  • 25
    24-55162 SPRING, RETURN - SPARK ADVANCE LEVER
    SPRING, RETURN - SPARK ADVANCE LEVER
  • 26
    95044A1 LEVER, SPARK ADVANCE
    LEVER, SPARK ADVANCE
  • 27
    12-46765 WASHER, THROTTLE CONTROL LEVER SCREW
    WASHER, THROTTLE CONTROL LEVER SCREW
  • 28
    39483 LATCH, THROTTLE CONTROL LEVER
    (THROTTLE CABLE)
    LATCH, THROTTLE CONTROL LEVER
    (THROTTLE CABLE)
  • 29
    10-69026 SCREW, LATCH TO THROTTLE CONTROL LEVER
    (7/8")
    SCREW, LATCH TO THROTTLE CONTROL LEVER
    (7/8")
  • 30
    24-20099 SPRING, COMPRESSION - LATCH SCREW
    SPRING, COMPRESSION - LATCH SCREW
  • 31
    11-826709109 NUT, LATCH SCREW
    NUT, LATCH SCREW
  • 32
    62459T BALL JOINT, SPARK ADVANCE LEVER
    BALL JOINT, SPARK ADVANCE LEVER
  • 33
    11-46438 NUT, BALL JOINT TO SPARK ADVANCE LEVER
    NUT, BALL JOINT TO SPARK ADVANCE LEVER
  • 35
    61940 LINK ROD
    LINK ROD
  • 36
    61939 PIVOT, TREADED - TRIGGER PLATE TO LINK ROD
    PIVOT, TREADED - TRIGGER PLATE TO LINK ROD
