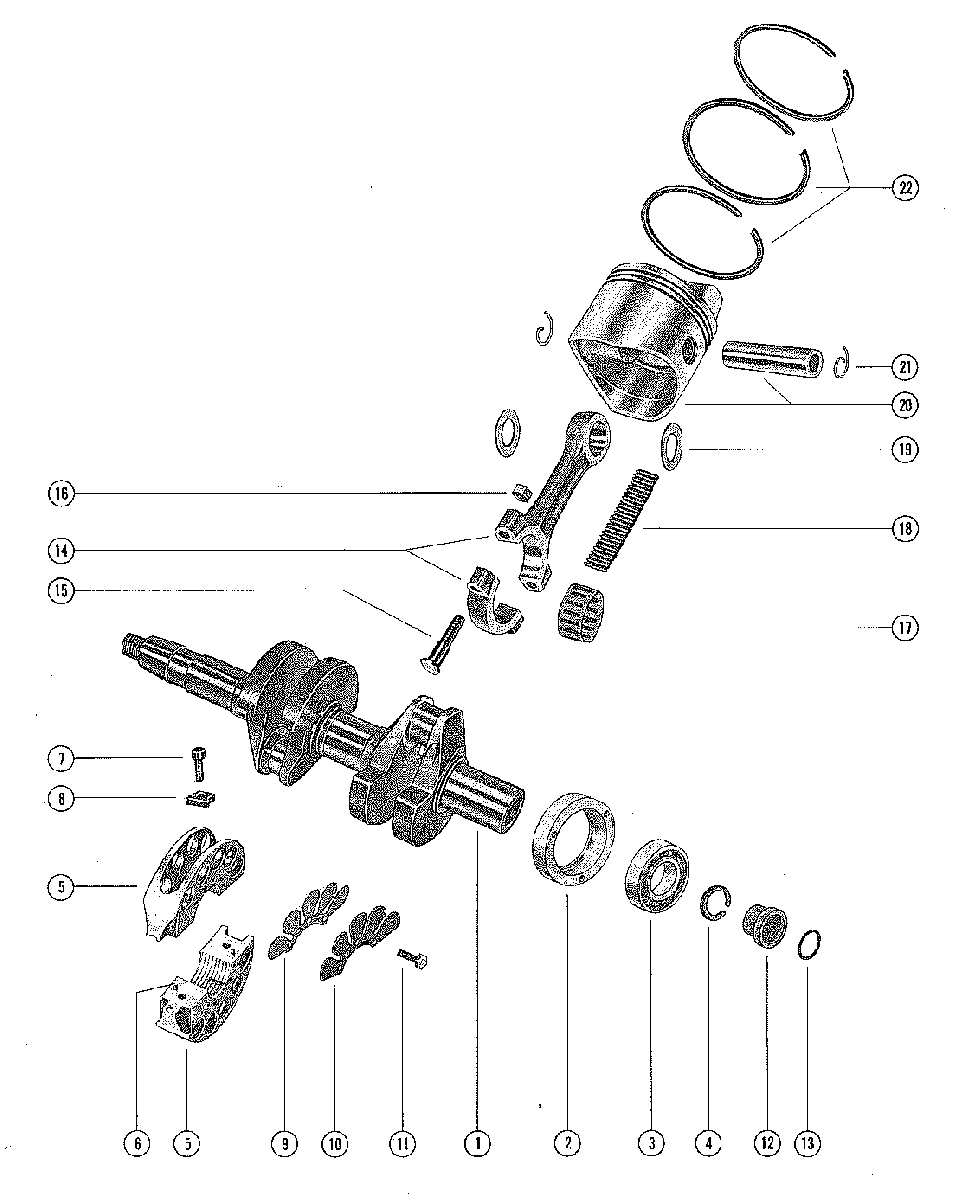

CRANKSHAFT, PISTON AND CONNECTING ROD ASSEMBLY для Mercury - 402, 40 (2 CYL.) 9184451 THRU 9251455

  • №
    Артикул
    Название
  • 1
    454-9073A1 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    78308A1 RETAINER ASSEMBLY, BALL BEARING
    RETAINER ASSEMBLY, BALL BEARING
  • 3
    30-63742T BALL BEARING, RETAINER (CRANKSHAFT)
    BALL BEARING, RETAINER (CRANKSHAFT)
  • 4
    53-63634 RETAINING RING, BALL BEARING
    RETAINING RING, BALL BEARING
  • 5
    540-7238A2 MAIN BEARING ASSEMBLY, VALVE TYPE
    MAIN BEARING ASSEMBLY, VALVE TYPE
  • 6
    10-22032 DOWEL PIN, MAIN BEARING
    DOWEL PIN, MAIN BEARING
  • 7
    10-45775 SCREW, MAIN BEARING CLAMPING (9/16")
    SCREW, MAIN BEARING CLAMPING (9/16")
  • 8
    11-45774 NUT, MAIN BEARING CLAMPING SCREW
    NUT, MAIN BEARING CLAMPING SCREW
  • 9
    34-56007A1 REED SET, MAIN BEARING (MATCHED)
    REED SET, MAIN BEARING (MATCHED)
  • 10
    34-56008 REED STOP, MAIN BEARING REED VALVES
    REED STOP, MAIN BEARING REED VALVES
  • 11
    10-20055 SCREW, REED STOP MOUNTING (3/8")
    SCREW, REED STOP MOUNTING (3/8")
  • 12
    60834A3 CARRIER ASSEMBLY, SEAL
    METAL SEAL CARRIER PRESSED IN CRANKSHAFT.
    CARRIER ASSEMBLY, SEAL
    METAL SEAL CARRIER PRESSED IN CRANKSHAFT.
  • 13
    64254001 SEAL, CARRIER
    METAL SEAL CARRIER PRESSED IN CRANKSHAFT.
    SEAL, CARRIER
    METAL SEAL CARRIER PRESSED IN CRANKSHAFT.
  • 14
    624-8101A3 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 15
    10-54803 SCREW, CONNECTING ROD
    SCREW, CONNECTING ROD
  • 16
    11-49091 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 17
    31-62596A1 BEARING, ASSEMBLY, CRANKPIN
    BEARING, ASSEMBLY, CRANKPIN
  • 18
    29-47270 BEARING, NEEDLE - PISTON PIN
    BEARING, NEEDLE - PISTON PIN
  • 19
    12-8M0032839 WASHER, NEEDLE BEARING RETAINING
    WASHER, NEEDLE BEARING RETAINING
  • 20
    774-9137A12 PISTON AND PISTON PIN ASSEMBLY
    PISTON AND PISTON PIN ASSEMBLY
  • 21
    53-857196 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 22
    39-78816A12 RING, PISTON
    RING, PISTON
  • 22
    774-9137A13 PISTON AND PISTON PIN ASSEMBLY (OVERSIZED)
    PISTON AND PISTON PIN ASSEMBLY (OVERSIZED)
  • 22
    39-78811A12 RING, PISTON (.015 OVERSIZE)
    RING, PISTON (.015 OVERSIZE)
