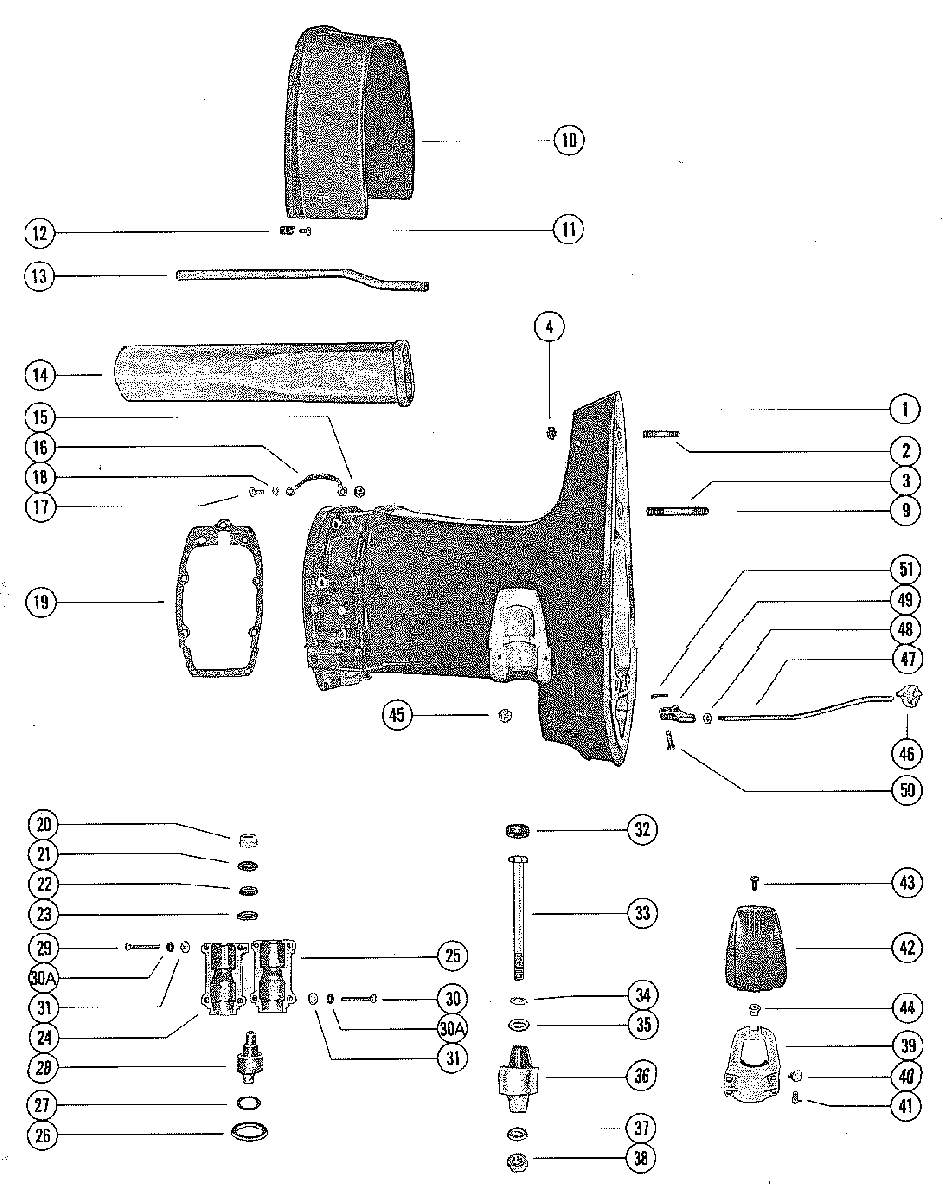

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 402, 40 (2 CYL.) 9184451 THRU 9251455

  • №
    Артикул
    Название
  • 1
    1592-8188A8 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
    DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
  • 1
    1593-7513A12 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
    DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
  • 2
    16-8M0022145 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    (1 3/4")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    (1 3/4")
  • 3
    16-57935 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    (3")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    (3")
  • 4
    19-64649 PLUG, PLASTIC - WATER PICK-UP HOLES
    PLUG, PLASTIC - WATER PICK-UP HOLES
  • 9
    12-65791 WASHER, DRIVE SHAFT HOUSING TO GEAR HOUSING STUDS
    WASHER, DRIVE SHAFT HOUSING TO GEAR HOUSING STUDS
  • 10
    60769 COVER, TRIM - DRIVE SHAFT HOUSING
    COVER, TRIM - DRIVE SHAFT HOUSING
  • 11
    10-57807 SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
    SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
  • 12
    25-8M0079730 GROMMET, TRIM COVER SCREW
    GROMMET, TRIM COVER SCREW
  • 13
    32-37727 TUBE, WATER OUTLET (SHORT SHAFT)
    TUBE, WATER OUTLET (SHORT SHAFT)
  • 13
    32-45679 TUBE, WATER OUTLET (LONG SHAFT)
    TUBE, WATER OUTLET (LONG SHAFT)
  • 14
    695431 TUBE, EXHAUST (SHORT SHAFT)
    TUBE, EXHAUST (SHORT SHAFT)
  • 14
    695441 TUBE, EXHAUST (LONG SHAFT)
    TUBE, EXHAUST (LONG SHAFT)
  • 15
    11-64809 NUT, POWERHEAD STUDS
    NUT, POWERHEAD STUDS
  • 16
    46933A2 GROUND STRAP
    BOTTOM COWL TO DRIVE SHAFT HOUSING
    GROUND STRAP
    BOTTOM COWL TO DRIVE SHAFT HOUSING
  • 17
    10-48408 SCREW, GROUND STRAP ATTACHING (1/2")
    SCREW, GROUND STRAP ATTACHING (1/2")
  • 18
    13-69432 LOCKWASHER, GROUND STRAP SCREW
    LOCKWASHER, GROUND STRAP SCREW
  • 19
    27-385011 GASKET, EXHAUST PLATE TO DRIVE SHAFT HOUSING
    GASKET, EXHAUST PLATE TO DRIVE SHAFT HOUSING
  • 20
    11-23161 NUT, UPPER MOUNT BOLT
    NUT, UPPER MOUNT BOLT
  • 21
    12-30519 WASHER, UPPER MOUNT BOLT (3/8 ID)
    WASHER, UPPER MOUNT BOLT (3/8 ID)
  • 22
    12-66966 WASHER, RUBBER - UPPER MOUNT BOLT
    WASHER, RUBBER - UPPER MOUNT BOLT
  • 23
    12-27727 WASHER, UPPER MOUNT BOLT (37/64 ID)
    WASHER, UPPER MOUNT BOLT (37/64 ID)
  • 24
    79680A1 COVER, UPPER MOUNT - OUTSIDE HALF
    SERIAL GROUP #1
    COVER, UPPER MOUNT - OUTSIDE HALF
    SERIAL GROUP #1
  • 25
    79680A1 COVER, UPPER MOUNT - INSIDE HALF
    SERIAL GROUP #1
    COVER, UPPER MOUNT - INSIDE HALF
    SERIAL GROUP #1
  • 26
    24929 PACKING, "U" CUP - UPPER MOUNT COVERS
    SERIAL GROUP #1
    PACKING, "U" CUP - UPPER MOUNT COVERS
    SERIAL GROUP #1
  • 27
    25-65936 "O" RING, UPPER MOUNT
    SERIAL GROUP #1
    "O" RING, UPPER MOUNT
    SERIAL GROUP #1
  • 24
    79680A1 COVER, UPPER MOUNT - OUTSIDE HALF
    SERIAL GROUP #2
    COVER, UPPER MOUNT - OUTSIDE HALF
    SERIAL GROUP #2
  • 25
    79681 COVER, UPPER MOUNT - INSIDE HALF
    SERIAL GROUP #2
    COVER, UPPER MOUNT - INSIDE HALF
    SERIAL GROUP #2
  • 26
    96401 SEAL, BELLOWS - UPPER MOUNT
    SERIAL GROUP #2
    SEAL, BELLOWS - UPPER MOUNT
    SERIAL GROUP #2
  • 28
    75301 MOUNT, RUBBER - UPPER
    MOUNT, RUBBER - UPPER
  • 29
    10-67916 SCREW, UPPER MOUNT COVER - REAR (2")
    SCREW, UPPER MOUNT COVER - REAR (2")
  • 30
    10-69029 SCREW, UPPER MOUNT COVER - FRONT (1 3/4")
    SCREW, UPPER MOUNT COVER - FRONT (1 3/4")
  • 30A
    12-29245 WASHER, UPPER MOUNT COVER SCREW
    WASHER, UPPER MOUNT COVER SCREW
  • 31
    11-36069 NUT, UPPER MOUNT COVER SCREW
    NUT, UPPER MOUNT COVER SCREW
  • 32
    25067 BUMPER, LOWER MOUNT (T 1/2")
    BUMPER, LOWER MOUNT (T 1/2")
  • 33
    10-75284 SCREW, LOWER MOUNT (5 1/2")
    SCREW, LOWER MOUNT (5 1/2")
  • 34
    12-28051 WASHER, LOWER MOUNT SCREW
    WASHER, LOWER MOUNT SCREW
  • 35
    12-28053 WASHER, RUBBER - LOWER MOUNT SCREW
    WASHER, RUBBER - LOWER MOUNT SCREW
  • 36
    75302T1 MOUNT, RUBBER - LOWER
    MOUNT, RUBBER - LOWER
  • 37
    12-30119 WASHER, LOWER MOUNT SCREW
    WASHER, LOWER MOUNT SCREW
  • 38
    11-25096 NUT, LOWER MOUNT SCREW
    NUT, LOWER MOUNT SCREW
  • 39
    69592F1 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
    CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
  • 40
    10-29256 SCREW, LOWER MOUNT CLAMP
    TO DRIVE SHAFT HOUSING (7/8")
    SCREW, LOWER MOUNT CLAMP
    TO DRIVE SHAFT HOUSING (7/8")
  • 41
    24-35522 SPRING, TENSION - LOWER MOUNT CLAMP
    SPRING, TENSION - LOWER MOUNT CLAMP
  • 42
    35474T COVER, LOWER MOUNT CLAMP
    COVER, LOWER MOUNT CLAMP
  • 43
    10-29722 SCREW, COVER TO LOWER CLAMP (5/8")
    SCREW, COVER TO LOWER CLAMP (5/8")
  • 44
    11-35521 NUT, LOWER MOUNT CLAMP COVER
    NUT, LOWER MOUNT CLAMP COVER
  • 45
    11-34933 NUT
    GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    NUT
    GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
  • 46
    933361 GUIDE, PUSH ROD
    GUIDE, PUSH ROD
  • 47
    59721 ROD, PUSH REVERSE LOCK (SHORT SHAFT)
    ROD, PUSH REVERSE LOCK (SHORT SHAFT)
  • 47
    59720 ROD, PUSH - REVERSE LOCK (LONG SHAFT)
    ROD, PUSH - REVERSE LOCK (LONG SHAFT)
  • 48
    11-28770 NUT, JAM - PUSH ROD
    NUT, JAM - PUSH ROD
  • 49
    59722 ROD END, PUSH ROD
    ROD END, PUSH ROD
  • 50
    17-72524 PIN, REVERSE LOCK LEVER
    PIN, REVERSE LOCK LEVER
  • 51
    18-25191 COTTER PIN, PUSH ROD TO REVERSE LOCK
    COTTER PIN, PUSH ROD TO REVERSE LOCK
