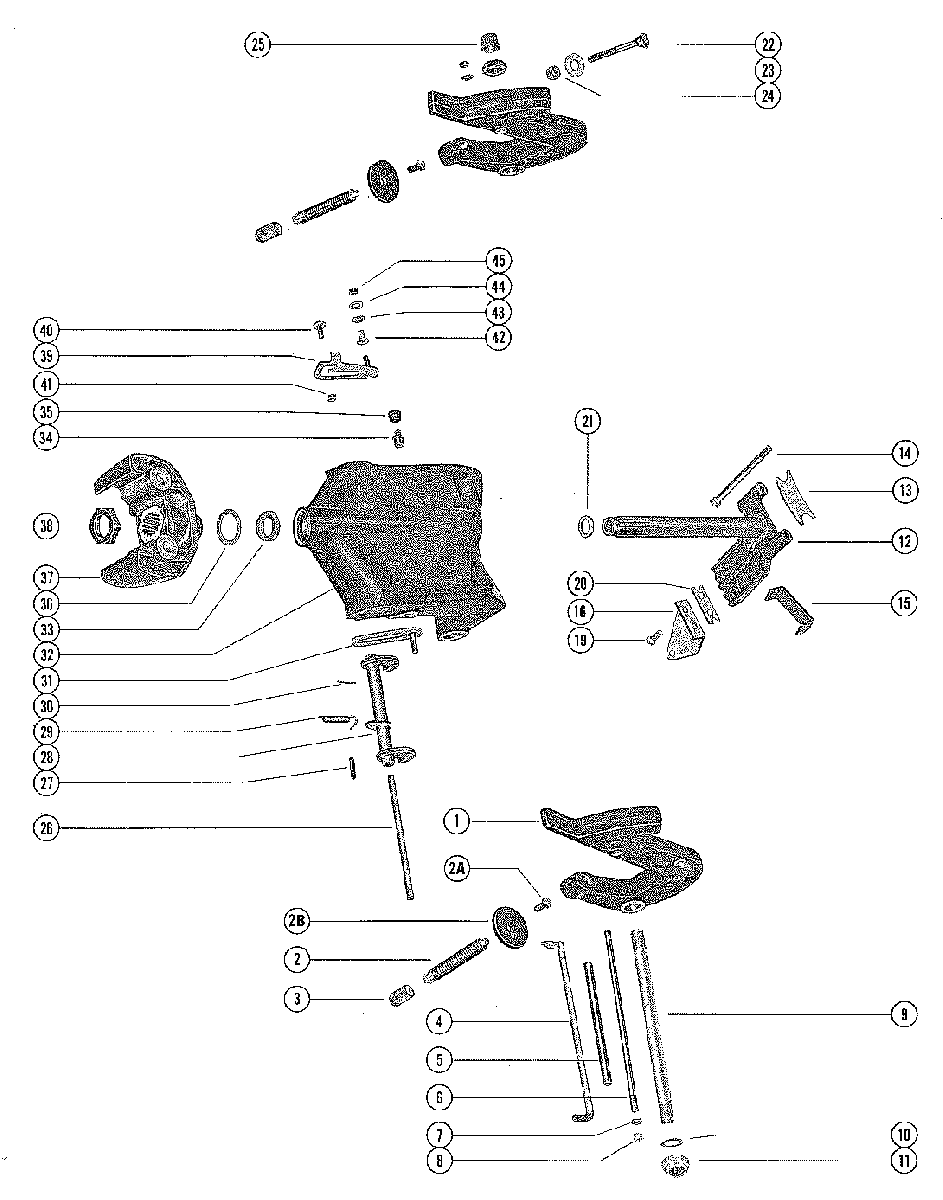

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 402, 40 (2 CYL.) 9184451 THRU 9251455

  • №
    Артикул
    Название
  • 1
    1427-5611A4 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    10-78492A1 THUMB SCREW ASSEMLBY
    THUMB SCREW ASSEMLBY
  • 2A
    10-78495 SCREW, WASHER TO THUMB SCREW
    SCREW, WASHER TO THUMB SCREW
  • 2B
    12-78493 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 3
    75043 CAP, THUMB SCREW
    CAP, THUMB SCREW
  • 4
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 5
    23-59623 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 6
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 7
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 8
    11-28770 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 9
    8M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
  • 10
    12-52864 WASHER, CLAMP BRACKET TO SWIVEL BRACKET
    WASHER, CLAMP BRACKET TO SWIVEL BRACKET
  • 11
    11-858869 NUT, TILT TUBE
    NUT, TILT TUBE
  • 12
    88798A23 SWIVEL PIN ASSEMBLY (SHORT SHAFT)
    MANUAL
    SWIVEL PIN ASSEMBLY (SHORT SHAFT)
    MANUAL
  • 12
    88798A24 SWIVEL PIN ASSEMBLY (LONG SHAFT)
    MANUAL
    SWIVEL PIN ASSEMBLY (LONG SHAFT)
    MANUAL
  • 12
    69540A3 SWIVEL PIN ASSEMBLY (SHORT SHAFT)
    ELECTRIC
    SWIVEL PIN ASSEMBLY (SHORT SHAFT)
    ELECTRIC
  • 12
    69540A4 SWIVEL PIN ASSEMBLY (LONG SHAFT)
    ELECTRIC
    SWIVEL PIN ASSEMBLY (LONG SHAFT)
    ELECTRIC
  • 13
    30711 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
  • 14
    10-33986 SCREW, UPPER MOUNT TO STEERING ARM
    SCREW, UPPER MOUNT TO STEERING ARM
  • 15
    62297 BUMPER, STEERING ARM
    MANUAL
    BUMPER, STEERING ARM
    MANUAL
  • 16
    76535T BRACKET, RIDE-GUIDE ATTACHING
    MANUAL
    BRACKET, RIDE-GUIDE ATTACHING
    MANUAL
  • 19
    10-34352 SCREW, BRACKET TO STEERING ARM (7/8")
    MANUAL
    SCREW, BRACKET TO STEERING ARM (7/8")
    MANUAL
  • 20
    76533 STRAP, BRACKET SCREW
    MANUAL
    STRAP, BRACKET SCREW
    MANUAL
  • 21
    12-52865 WASHER, SWIVEL PIN
    WASHER, SWIVEL PIN
  • 22
    10-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM
    (LOWER)
    BOLT, CLAMP BRACKET TO BOAT TRANSOM
    (LOWER)
  • 22
    10-68299 BOLT, CLAMP BRACKET TO BOAT TRANSOM
    (UPPER)
    BOLT, CLAMP BRACKET TO BOAT TRANSOM
    (UPPER)
  • 23
    12-46765 WASHER, CLAMP BRACKE BOLT
    (LOWER)
    WASHER, CLAMP BRACKE BOLT
    (LOWER)
  • 23
    12-68300 WASHER, CLAMP BRACKET BOLT
    (UPPER)
    WASHER, CLAMP BRACKET BOLT
    (UPPER)
  • 24
    11-82670912 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 25
    53078 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
  • 26
    56349 SHAFT, REVERSE LOCK TO SWIVEL BRACKET
    SHAFT, REVERSE LOCK TO SWIVEL BRACKET
  • 27
    17-25598 ROLL PIN, REVERSE LOCK SPRING ATTACHING
    ROLL PIN, REVERSE LOCK SPRING ATTACHING
  • 28
    87430 REVERSE LOCK ASSEMBLY
    REVERSE LOCK ASSEMBLY
  • 29
    24-29821 SPRING, REVERSE LOCK TENSION
    SPRING, REVERSE LOCK TENSION
  • 30
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
  • 31
    47912A2 LEVER ASSEMBLY, TILT STOP - STARBOARD SIDE
    LEVER ASSEMBLY, TILT STOP - STARBOARD SIDE
  • 32
    1481-7656A1 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
    SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
  • 32
    1480-7655A1 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
    SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
  • 33
    26-32911 OIL SEAL, SWIVEL BRACKET
    OIL SEAL, SWIVEL BRACKET
  • 34
    22-74036 FITTING, GREASE - SWIVEL BRACKET
    FITTING, GREASE - SWIVEL BRACKET
  • 35
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
  • 36
    12-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
    WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
  • 36
    12-26837 WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)
    WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)
  • 37
    77416T1 YOKE, BOTTOM
    YOKE, BOTTOM
  • 38
    53-77415 RETIANING RING, BOTTOM YOKE
    RETIANING RING, BOTTOM YOKE
  • 39
    47913A2 LEVER ASSEMBLY, TILT LOCK - PORT SIDE
    LEVER ASSEMBLY, TILT LOCK - PORT SIDE
  • 40
    10-69087 SCREW, TILT LOCK AND STOP LEVER TO SWIVEL BRACKET
    SCREW, TILT LOCK AND STOP LEVER TO SWIVEL BRACKET
  • 41
    11-29250 NUT, TILT LOCK AND STOP LEVER SCREW
    NUT, TILT LOCK AND STOP LEVER SCREW
  • 42
    23-47911 BUSHING, TILT LOCK AND STOP LEVER
    BUSHING, TILT LOCK AND STOP LEVER
  • 43
    13-34632 WASHER, WAVE - TILT LOCK AND STOP LEVER
    WASHER, WAVE - TILT LOCK AND STOP LEVER
  • 44
    12-56720 WASHER, TILT LOCK AND STOP LEVER
    WASHER, TILT LOCK AND STOP LEVER
  • 45
    11-29250 NUT, TILT LOCK AND STOP LEVER TO CLAMP BRACKET
    NUT, TILT LOCK AND STOP LEVER TO CLAMP BRACKET
