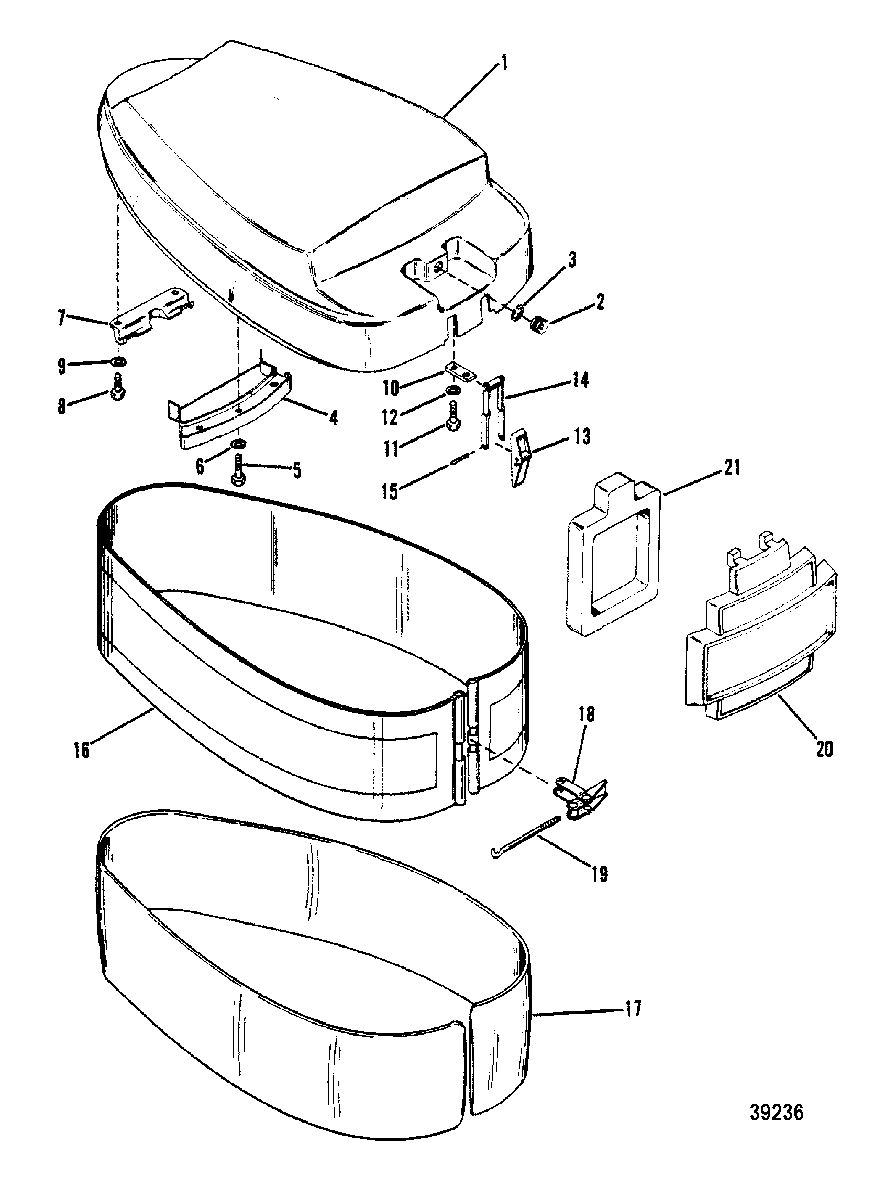

TOP COWL AND COWLING для Mercury - 402, 40 (2 CYL.) 8064750 & Up
-
№АртикулНазвание
-
12138-6341 TOP COWL ASSEMBLY
(ELECTRIC)TOP COWL ASSEMBLY
(ELECTRIC) -
12138-6340A2 TOP COWL ASSEMBLY
(MANUAL)TOP COWL ASSEMBLY
(MANUAL) -
277859A1 ROPE GUIDE, STARTER ROPE
(ALUMINUM)ROPE GUIDE, STARTER ROPE
(ALUMINUM) -
258657 ROPE GUIDE, STARTER ROPE
(PLASTIC)ROPE GUIDE, STARTER ROPE
(PLASTIC) -
377860 RING, RETAINING - ROPE GUIDE
(ALUMINUM)RING, RETAINING - ROPE GUIDE
(ALUMINUM) -
353-72168 RING, RETAINING - ROPE GUIDE
(PLASTIC)RING, RETAINING - ROPE GUIDE
(PLASTIC) -
462236 SHILD, REAR - TOP COWLSHILD, REAR - TOP COWL
-
510-48409 SCREW, (#10-16 x .625) Stainless Steel, REAR SHIELD TO TOP COWLSCREW, (#10-16 x .625) Stainless Steel, REAR SHIELD TO TOP COWL
-
612-26014 WASHER, REAR SHIELD SCREWWASHER, REAR SHIELD SCREW
-
755455 HOOK, TOP COWL LATCH - REARHOOK, TOP COWL LATCH - REAR
-
810-22956 SCREW, (.250-28 x .880), REAR HOOK TO TOP COWLSCREW, (.250-28 x .880), REAR HOOK TO TOP COWL
-
913-26992 LOCKWASHER, (.250) Stainless Steel, REAR HOOK SCREWLOCKWASHER, (.250) Stainless Steel, REAR HOOK SCREW
-
1075973 PLATE, HINGEPLATE, HINGE
-
1110-32228 SCREW, (#10-32 x .625), HINGE PLATESCREW, (#10-32 x .625), HINGE PLATE
-
1213-26996 LOCKWASHER, (#10) Stainless Steel, HINGE PLATE SCREWLOCKWASHER, (#10) Stainless Steel, HINGE PLATE SCREW
-
1394918F1 LEVER, COWL LATCHLEVER, COWL LATCH
-
1452739 HINGE, COWL LATCH LEVERHINGE, COWL LATCH LEVER
-
1517-58998 PIN, HINGE TO LEVERPIN, HINGE TO LEVER
-
162137-3878A6 WRAP AROUND COWL ASSEMBLYWRAP AROUND COWL ASSEMBLY
-
1776259 BLANKET, SOUND ABSORBING
(EARLY STYLE ENGINES)BLANKET, SOUND ABSORBING
(EARLY STYLE ENGINES) -
1846785A1 LATCH ASSEMBLY, CowlLATCH ASSEMBLY, Cowl
-
1930413 HOOK, COWL LATCH FASTENINGHOOK, COWL LATCH FASTENING
-
202161-6347A20 COVER ASSEMBLY, Cowl - FrontCOVER ASSEMBLY, Cowl - Front
-
2176450 BLANKET, COWL FRONT COVERBLANKET, COWL FRONT COVER
