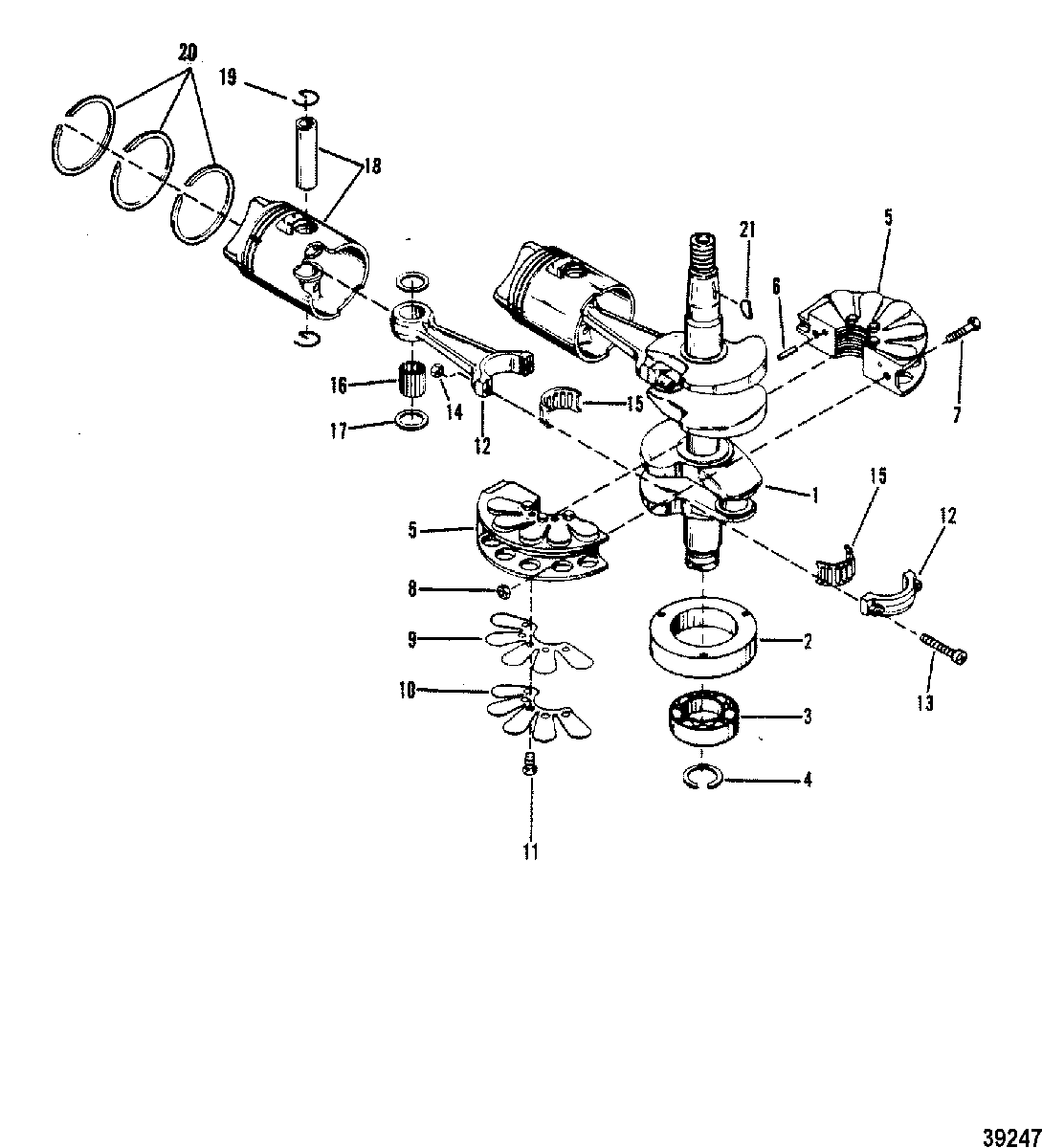

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 402, 40 (2 CYL.) 8064750 & Up

  • №
    Артикул
    Название
  • 1
    454-9073A1 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    78308A1 RETAINER ASSEMBLY, BALL BEARING
    RETAINER ASSEMBLY, BALL BEARING
  • 3
    30-63742T BEARING, Ball, RETAINER (CRANKSHAFT)
    BEARING, Ball, RETAINER (CRANKSHAFT)
  • 4
    53-63634 RING, Retaining, BALL BEARING
    RING, Retaining, BALL BEARING
  • 5
    540-7238A2 BEARING ASSEMBLY, Main, VALVE TYPE
    BEARING ASSEMBLY, Main, VALVE TYPE
  • 6
    17-20032 PIN, Dowel, MAIN BEARING
    PIN, Dowel, MAIN BEARING
  • 7
    10-45775 SCREW, (#12-28 x .560) , MAIN BEARING CLAMPING
    SCREW, (#12-28 x .560) , MAIN BEARING CLAMPING
  • 8
    11-45774 NUT, MAIN BEARING CLAMPING SCREW
    NUT, MAIN BEARING CLAMPING SCREW
  • 9
    34-56007A1 REED SET, MAIN BEARING (MATCHED)
    REED SET, MAIN BEARING (MATCHED)
  • 10
    34-56008 STOP, Reed, MAIN BEARING REED VALVES
    STOP, Reed, MAIN BEARING REED VALVES
  • 11
    10-20055 SCREW, (#10-32 x .375), REED STOP MOUNTING
    SCREW, (#10-32 x .375), REED STOP MOUNTING
  • 12
    624-8101A3 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 13
    10-54803 SCREW, (.250-28 x 1.500), CONNECTING ROD
    USE WITH NUT
    SCREW, (.250-28 x 1.500), CONNECTING ROD
    USE WITH NUT
  • 13
    10-91012 SCREW, (.250-28 Special), CONNECTING ROD
    USE WITHOUT NUT
    SCREW, (.250-28 Special), CONNECTING ROD
    USE WITHOUT NUT
  • 14
    11-49091 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 15
    31-62596A1 BEARING ASSEMBLY, CRANKPIN
    BEARING ASSEMBLY, CRANKPIN
  • 16
    29-47270 BEARING, PISTON PIN
    BEARING, PISTON PIN
  • 17
    12-8M0032839 WASHER, NEEDLE BEARING RETAINING
    WASHER, NEEDLE BEARING RETAINING
  • 18
    774-9137A12 PISTON ASSEMBLY
    STANDARD
    PISTON ASSEMBLY
    STANDARD
  • 18
    774-9137A13 PISTON ASSEMBLY
    (.015 OVERSIZE)
    PISTON ASSEMBLY
    (.015 OVERSIZE)
  • 18
    774-9137A14 PISTON ASSEMBLY
    (.030 OVERSIZE)
    PISTON ASSEMBLY
    (.030 OVERSIZE)
  • 19
    53-857196 RING, Lock, PISTON PIN
    RING, Lock, PISTON PIN
  • 20
    39-78816A12 RING
    STANDARD
    RING
    STANDARD
  • 20
    39-78811A12 RING SET, Piston - .015 Oversize
    RING SET, Piston - .015 Oversize
  • 20
    39-88392A12 RING SET, Piston - .030 Oversize
    RING SET, Piston - .030 Oversize
  • 21
    28-45554 KEY, CRANKSHAFT
    KEY, CRANKSHAFT
