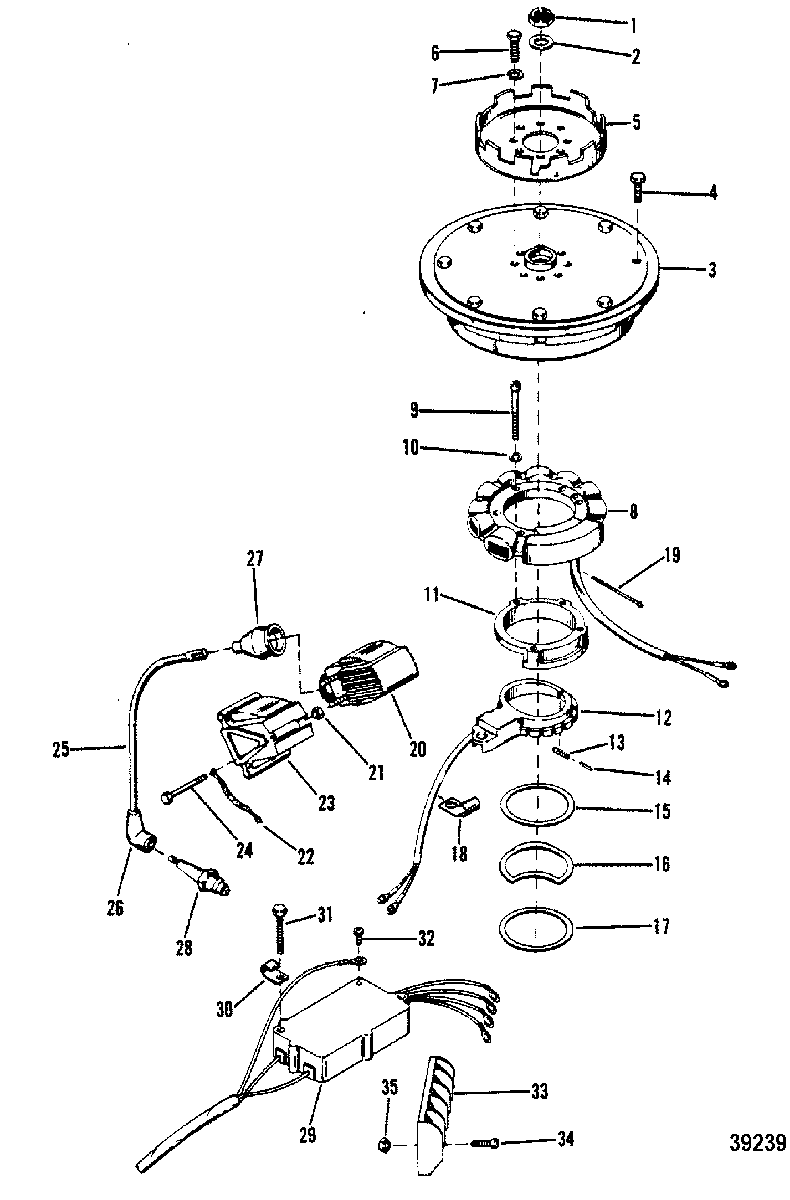

FLYWHEEL, IGNITION COIL AND SWITCH BOX для Mercury - 402, 40 (2 CYL.) 8064750 & Up

  • №
    Артикул
    Название
  • 1
    11-22339 NUT, (.625-18), FLYWHEEL
    NUT, (.625-18), FLYWHEEL
  • 2
    12-33001 WASHER, (.641 x 1.250 x .190), FLYWHEEL NUT
    WASHER, (.641 x 1.250 x .190), FLYWHEEL NUT
  • 3
    242-4764A28 FLYWHEEL ASSEMBLY
    (MANUAL)
    FLYWHEEL ASSEMBLY
    (MANUAL)
  • 3
    242-4764A25 FLYWHEEL ASSEMBLY
    (ELECTRIC)
    FLYWHEEL ASSEMBLY
    (ELECTRIC)
  • 4
    10-32417 SCREW, (.250-28 x .625)
    SCREW, (.250-28 x .625)
  • 5
    50-65213 RATCHET, FLYWHEEL
    MANUAL
    RATCHET, FLYWHEEL
    MANUAL
  • 6
    10-69088 SCREW
    MANUAL
    SCREW
    MANUAL
  • 7
    13-20202 LOCKWASHER, RATCHET SCREW
    MANUAL
    LOCKWASHER, RATCHET SCREW
    MANUAL
  • 8
    398-5256 STATOR, IGNITION
    MANUAL
    STATOR, IGNITION
    MANUAL
  • 8
    398-5255 STATOR, ALTERNATOR
    ELECTRIC
    STATOR, ALTERNATOR
    ELECTRIC
  • 9
    10-56787 SCREW, STATOR TO UPPER END CAP (2")
    SCREW, STATOR TO UPPER END CAP (2")
  • 10
    13-26996 LOCKWASHER, (#10) Stainless Steel, STATOR SCREW
    LOCKWASHER, (#10) Stainless Steel, STATOR SCREW
  • 11
    61830 SUPPORT, Stator
    SUPPORT, Stator
  • 12
    338-4731A8 TRIGGER PLATE ASSEMBLY
    TRIGGER PLATE ASSEMBLY
  • 13
    24-62095 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 14
    17-62768 PIN, SPRING RETENTION
    PIN, SPRING RETENTION
  • 15
    12-62133 WASHER (UPPER)
    WASHER (UPPER)
  • 16
    13-61983 WASHER, CENTER)
    WASHER, CENTER)
  • 17
    12-61982 WASHER (LOWER)
    WASHER (LOWER)
  • 18
    54-54457 J CLIP
    J CLIP
  • 19
    61990 TIE STRAP, (14.00 Inches), STATOR LEADS
    TIE STRAP, (14.00 Inches), STATOR LEADS
  • 20
    339-5288T2 COIL ASSEMBLY, Ignition, COMPLETE
    COIL ASSEMBLY, Ignition, COMPLETE
  • 21
    11-45076 NUT, (#10-32) Brass, COIL TERMINALS
    NUT, (#10-32) Brass, COIL TERMINALS
  • 22
    84-60466A1 CABLE ASSEMBLY, Black (2.50 Inches)
    CABLE ASSEMBLY, Black (2.50 Inches)
  • 23
    76254 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 24
    10-69002 SCREW, (#10-24 x 1.750)
    SCREW, (#10-24 x 1.750)
  • 24
    10-60194 SCREW (2-1/8")
    SCREW (2-1/8")
  • 25
    84-813715A1 LEAD ASSEMBLY, SPARK PLUG (HIGH TENSION)
    LEAD ASSEMBLY, SPARK PLUG (HIGH TENSION)
  • 26
    85-63709A1 BOOT/TERMINAL KIT, SPARK PLUG
    BOOT/TERMINAL KIT, SPARK PLUG
  • 27
    332-2854T01 BOOT, LEAD TO IGNITION COIL
    BOOT, LEAD TO IGNITION COIL
  • 28
    33-14103550 SPARK PLUG (CHAMPION #QL-76V)
    CANADA AND BELGIUM
    SPARK PLUG (CHAMPION #QL-76V)
    CANADA AND BELGIUM
  • 28
    33-97180Q SPARK PLUG (AV#V-40FFM)
    SPARK PLUG (AV#V-40FFM)
  • 29
    332-4911A8 SWITCHBOX ASSEMBLY, COMPLETE
    SWITCHBOX ASSEMBLY, COMPLETE
  • 30
    54-54457 J CLIP, SWITCH BOX LEADS
    J CLIP, SWITCH BOX LEADS
  • 31
    10-69067 SCREW, (.250-20 x 1.375)
    SCREW, (.250-20 x 1.375)
  • 32
    10-45218 SCREW, (#10-32 x .380)
    SCREW, (#10-32 x .380)
  • 33
    86-66754 TERMINAL BLOCK, SWITCH BOX LEAD
    TERMINAL BLOCK, SWITCH BOX LEAD
  • 34
    10-38055 SCREW, (.190-32 x .62), TERMINAL BLOCK ATTACHING
    SCREW, (.190-32 x .62), TERMINAL BLOCK ATTACHING
  • 35
    11-8267086 NUT, (#10-32)
    NUT, (#10-32)
