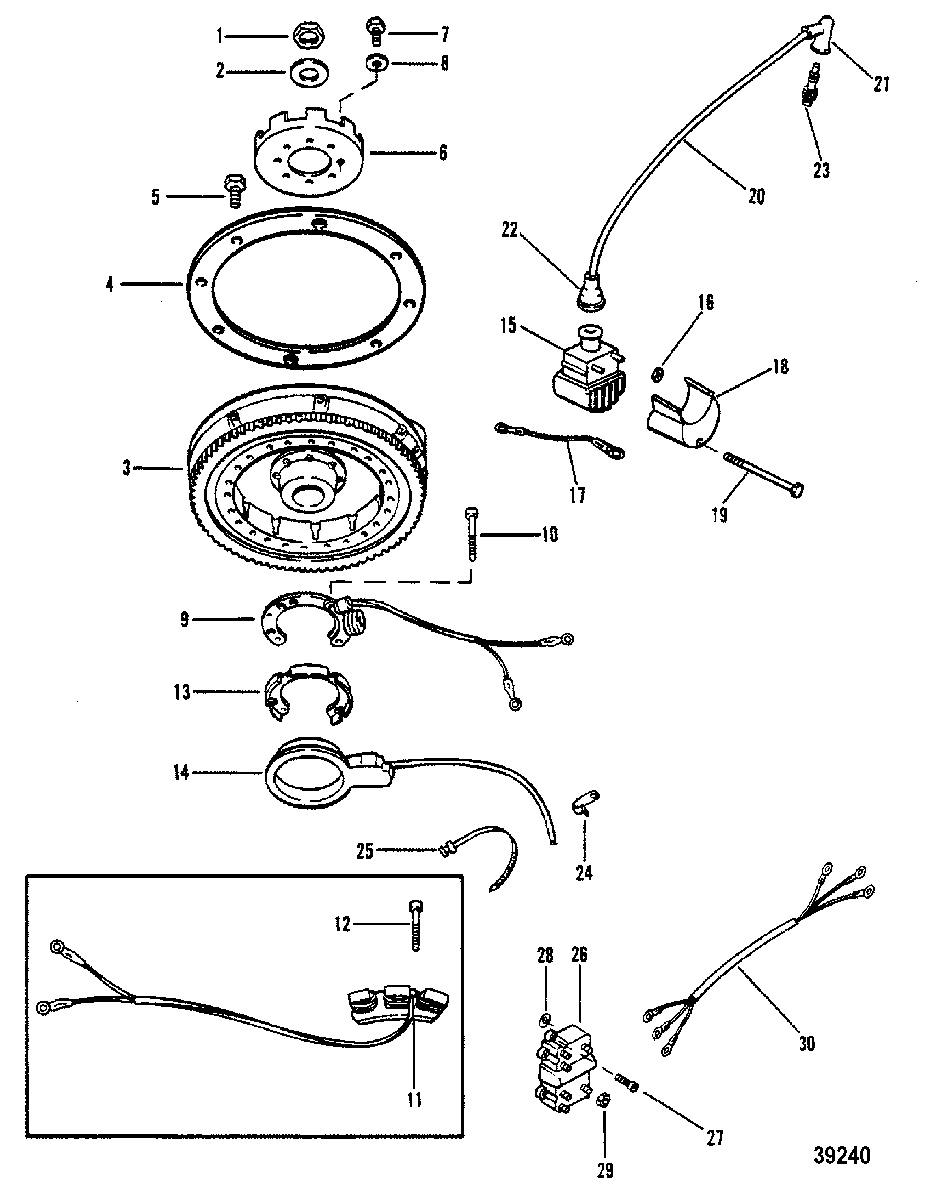

FLYWHEEL, IGNITION COIL AND SWITCH BOX для Mercury - 402, 40 (2 CYL.) 8064750 & Up

  • №
    Артикул
    Название
  • 1
    11-22339 NUT, (.625-18), FLYWHEEL
    NUT, (.625-18), FLYWHEEL
  • 2
    12-36258 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 3
    242-7912A14 FLYWHEEL ASSEMBLY
    (MANUAL)
    FLYWHEEL ASSEMBLY
    (MANUAL)
  • 3
    242-7912A8 FLYWHEEL ASSEMBLY
    (ELECTRIC - 78 TEETH)
    FLYWHEEL ASSEMBLY
    (ELECTRIC - 78 TEETH)
  • 3
    242-7912A12 FLYWHEEL ASSEMBLY
    (ELECTRIC - 77 TEETH)
    FLYWHEEL ASSEMBLY
    (ELECTRIC - 77 TEETH)
  • 4
    41409A1 INERTIA RING ASSEMBLY
    INERTIA RING ASSEMBLY
  • 5
    10-32417 SCREW, (.250-28 x .625), FLYWHEEL
    SCREW, (.250-28 x .625), FLYWHEEL
  • 6
    50-65213 RATCHET, FLYWHEEL
    (MANUAL)
    RATCHET, FLYWHEEL
    (MANUAL)
  • 7
    10-69088 SCREW, RATCHET TO FLYWHEEL (7/8")
    (MANUAL)
    SCREW, RATCHET TO FLYWHEEL (7/8")
    (MANUAL)
  • 8
    13-20202 LOCKWASHER, RATCHET SCREW
    (MANUAL)
    LOCKWASHER, RATCHET SCREW
    (MANUAL)
  • 9
    86617A20 STATOR ASSEMBLY, IGNITION
    STATOR ASSEMBLY, IGNITION
  • 10
    10-77363 SCREW, (#10-24 x 1.50), STATOR TO UPPER END CAP
    SCREW, (#10-24 x 1.50), STATOR TO UPPER END CAP
  • 10
    10-19926100 SCREW, (#10-24 x 1.00), STATOR TO UPPER END CAP
    SCREW, (#10-24 x 1.00), STATOR TO UPPER END CAP
  • 11
    86704A10 STATOR ASSEMBLY, CHARGING
    (ELECTRIC)
    STATOR ASSEMBLY, CHARGING
    (ELECTRIC)
  • 12
    10-93787 SCREW, (#10-24 x 1.750), STATOR TO UPPER END CAP
    (ELECTRIC)
    SCREW, (#10-24 x 1.750), STATOR TO UPPER END CAP
    (ELECTRIC)
  • 13
    95707 SUPPORT, Stator
    SUPPORT, Stator
  • 14
    92431A6 TRIGGER PLATE
    TRIGGER PLATE
  • 15
    339-832757A4 COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 16
    11-45076 NUT, (#10-32) Brass, COIL TERMINAL
    NUT, (#10-32) Brass, COIL TERMINAL
  • 17
    84-60466A1 CABLE ASSEMBLY, Black (2.50 Inches) , COIL COVER SCREW
    CABLE ASSEMBLY, Black (2.50 Inches) , COIL COVER SCREW
  • 18
    76254 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 19
    10-69002 SCREW, (#10-24 x 1.750), COVER TO COIL BRACKET
    SCREW, (#10-24 x 1.750), COVER TO COIL BRACKET
  • 19
    10-93460 SCREW, (.190-24 x 2.125), COVER TO COIL BRACKET
    SCREW, (.190-24 x 2.125), COVER TO COIL BRACKET
  • 20
    84-813715A1 LEAD ASSEMBLY, SPARK PLUG (HIGH TENSION)
    LEAD ASSEMBLY, SPARK PLUG (HIGH TENSION)
  • 21
    85-63709A1 BOOT/TERMINAL KIT, SPARK PLUG
    BOOT/TERMINAL KIT, SPARK PLUG
  • 22
    332-2854T01 BOOT, IGNITION COIL
    BOOT, IGNITION COIL
  • 23
    33-97180Q SPARK PLUG (AC#V-40FFM)
    SPARK PLUG (AC#V-40FFM)
  • 23
    33-14103550 SPARK PLUG (CHAMPION #QL76V)
    FOR CANADA AND BELGIUM
    SPARK PLUG (CHAMPION #QL76V)
    FOR CANADA AND BELGIUM
  • 24
    54-54457 J CLIP, LEAD WIRES
    J CLIP, LEAD WIRES
  • 25
    61990 TIE STRAP, (14.00 Inches)
    TIE STRAP, (14.00 Inches)
  • 26
    899883230 SWITCHBOX ASSEMBLY
    SWITCHBOX ASSEMBLY
  • 27
    10-23015 SCREW, SWITCH BOX TO BRACKET
    SCREW, SWITCH BOX TO BRACKET
  • 28
    13-69432 LOCKWASHER, External (#10), GROUND
    LOCKWASHER, External (#10), GROUND
  • 29
    11-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINAL
    NUT, (#10-32) Brass, SWITCH BOX TERMINAL
  • 30
    84-94295A1 HARNESS ASSEMBLY, PRIMARY
    HARNESS ASSEMBLY, PRIMARY
