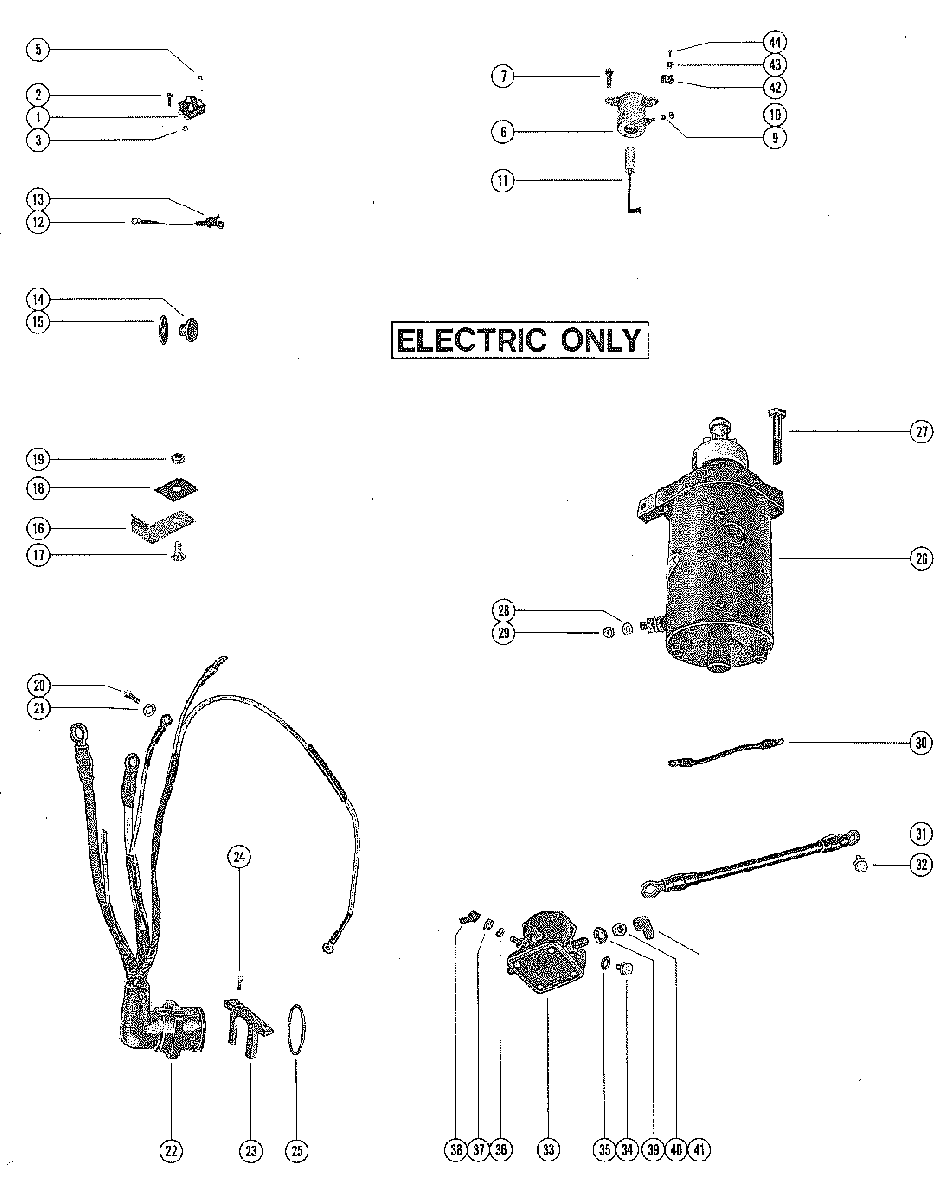

STARTER MOTOR, RECTIFIER AND WIRING HARNESS для Mercury - 402, 40 (2 CYL.) 8052125 THRU 8064749
-
№АртикулНазвание
-
18M0058226 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
210-25764 SCREW, RECTIFIER TO FRONT SUPPORT BRACKET
(1/2")SCREW, RECTIFIER TO FRONT SUPPORT BRACKET
(1/2") -
311-27164 NUT, RECTIFIER FASTENING SCREWNUT, RECTIFIER FASTENING SCREW
-
511-45076 NUT, RECTIFIER TERMINAL (10-32)NUT, RECTIFIER TERMINAL (10-32)
-
689-889274 CHOKE SOLENOID ASSEMBLYCHOKE SOLENOID ASSEMBLY
-
710-25299 SCREW
CHOKE SOLENOID FRONT SUPPORT BRACKET (3/4")SCREW
CHOKE SOLENOID FRONT SUPPORT BRACKET (3/4") -
913-26996 LOCKWASHER, CHOKE SOLENOID TERMINALLOCKWASHER, CHOKE SOLENOID TERMINAL
-
1011-45076 NUT, CHOKE SOLENOID TERMINALNUT, CHOKE SOLENOID TERMINAL
-
1189008A2 PLUNGER ASSEMBLY, CHOKE SOLENOIDPLUNGER ASSEMBLY, CHOKE SOLENOID
-
1284-61393A1 LEAD ASSEMBLY
RECTIFIER TO STARTER SOLENOID (4 7/8")LEAD ASSEMBLY
RECTIFIER TO STARTER SOLENOID (4 7/8") -
1385-62453 BOOT, LEAD WIREBOOT, LEAD WIRE
-
1419-35827 PLUG, BOTTOM COWL
PART OF BOTTOM COWL ASSEMBLYPLUG, BOTTOM COWL
PART OF BOTTOM COWL ASSEMBLY -
1511-30428 FASTENER, PLUG TO BOTTOM COWL
PART OF BOTTOM COWL ASSEMBLYFASTENER, PLUG TO BOTTOM COWL
PART OF BOTTOM COWL ASSEMBLY -
1634228 SUPPORT, EXTERNAL WIRING HARNESSSUPPORT, EXTERNAL WIRING HARNESS
-
1710-67917 SCREW, SUPPORT TO BOTTOM COWL (5/8")SCREW, SUPPORT TO BOTTOM COWL (5/8")
-
1852907 INSULATOR, SUPPORT TO BOTTOM COWLINSULATOR, SUPPORT TO BOTTOM COWL
-
1911-35888 NUT, SUPPORT FASTENING SCREWNUT, SUPPORT FASTENING SCREW
-
2010-98256 SCREW
WIRING HARNESS GROUND TO BOTTOM COWL (1/2")SCREW
WIRING HARNESS GROUND TO BOTTOM COWL (1/2") -
2113-24669 LOCKWASHER, WIRING HARNESS GROUND SCREWLOCKWASHER, WIRING HARNESS GROUND SCREW
-
2284-73826A1 WIRING HARNESS (INTERNAL)WIRING HARNESS (INTERNAL)
-
2354-76368 CLAMP, WIRING HARNESS ATTACHINGCLAMP, WIRING HARNESS ATTACHING
-
2410-69013 SCREW
WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")SCREW
WIRING HARNESS CLAMP TO BOTTOM COWL (7/8") -
2524-28975 SPRING, GARTER - INTERNAL WIRING HARNESSSPRING, GARTER - INTERNAL WIRING HARNESS
-
2650-55601A2 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
2710-35213 SCREW, STARTER MOTOR TO CRANKCASE (1 5/8")SCREW, STARTER MOTOR TO CRANKCASE (1 5/8")
-
2813-26993 LOCKWASHER, CABLE TO STARTER MOTOR NUTLOCKWASHER, CABLE TO STARTER MOTOR NUT
-
2911-20890 NUT, CABLE TO STARTER MOTORNUT, CABLE TO STARTER MOTOR
-
3084-93389A3 CABLE, STARTER MOTOR TO STARTER SOLENOID
(YELLOW)CABLE, STARTER MOTOR TO STARTER SOLENOID
(YELLOW) -
3184-93388A14 GROUND WIRE
STARTER MOTOR TO FRONT SUPPORT BRACKETGROUND WIRE
STARTER MOTOR TO FRONT SUPPORT BRACKET -
3210-69035 SCREW, GROUND WIRE TO STARTER MOTOR (5/8")SCREW, GROUND WIRE TO STARTER MOTOR (5/8")
-
3325661T1 SOLENOID, STARTERSOLENOID, STARTER
-
3410-69028 SCREW, STARTER SOLENOID TO FRONT
SUPPORT BRACKET (3/4")SCREW, STARTER SOLENOID TO FRONT
SUPPORT BRACKET (3/4") -
3513-26992 WASHER, STARTER SOLENOID SCREWWASHER, STARTER SOLENOID SCREW
-
3613-26996 LOCKWASHER, STARTER SOLENOID TERMINAL
(#10)LOCKWASHER, STARTER SOLENOID TERMINAL
(#10) -
3711-68219 NUT, STARTER SOLENOID TERMINAL
(#10)NUT, STARTER SOLENOID TERMINAL
(#10) -
3838938 BOOT, RUBBER - STARTER SOLENOID TERMINAL
(SMALL)BOOT, RUBBER - STARTER SOLENOID TERMINAL
(SMALL) -
3913-26993 LOCKWASHER, STARTER SOLENOID TERMINAL
(5/16")LOCKWASHER, STARTER SOLENOID TERMINAL
(5/16") -
4011-22053 NUT, STARTER SOLENOID TERMINAL (5/16")NUT, STARTER SOLENOID TERMINAL (5/16")
-
4146265 BOOT, RUBBER - STARTER SOLENOID TERMINAL
(LARGE)BOOT, RUBBER - STARTER SOLENOID TERMINAL
(LARGE) -
4254-24871 CLAMP, CHOKE SOLENOID LEAD WIRECLAMP, CHOKE SOLENOID LEAD WIRE
-
438M0084613 "C" WASHER, LEAD WIRE CLAMP"C" WASHER, LEAD WIRE CLAMP
-
4410-62568 SCREW, CLAMP ATTACHING (3/8")SCREW, CLAMP ATTACHING (3/8")
