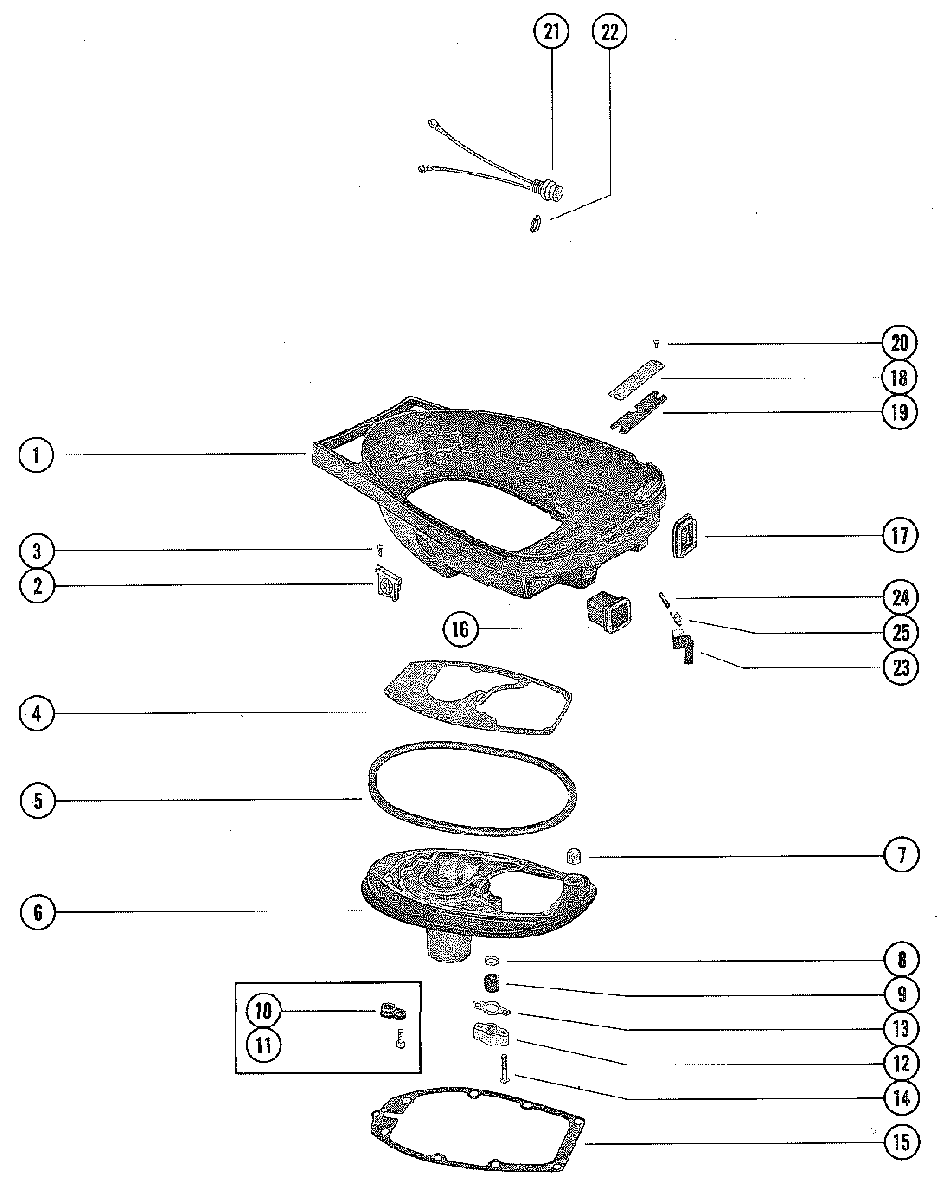

BOTTOM COWL AND EXHAUST PLATE ASSEMBLY для Mercury - 402, 40 (2 CYL.) 8052125 THRU 8064749

  • №
    Артикул
    Название
  • 1
    2139-7642A2 BOTTOM COWL
    BOTTOM COWL
  • 2
    48472 COVER, PLUG - BOTTOM COWL HARNESS HOLE
    MANUAL
    COVER, PLUG - BOTTOM COWL HARNESS HOLE
    MANUAL
  • 3
    10-61802 SCREW, PLUG COVER TO BOTTOM COWL (7/8")
    MANUAL
    SCREW, PLUG COVER TO BOTTOM COWL (7/8")
    MANUAL
  • 4
    27-628601 GASKET
    POWERHEAD TO EXHAUST EXTENSION PLATE
    GASKET
    POWERHEAD TO EXHAUST EXTENSION PLATE
  • 5
    39622 SEAL, RUBBER
    EXHAUST PLATE TO BOTTOM COWL
    SEAL, RUBBER
    EXHAUST PLATE TO BOTTOM COWL
  • 6
    42818A1 PLATE ASSEMBLY, EXHAUST EXTENSION
    SERIAL GROUP #1
    PLATE ASSEMBLY, EXHAUST EXTENSION
    SERIAL GROUP #1
  • 6
    42818A1 PLATE ASSEMBLY, EXHUAST EXTENSION
    SERIAL GROUP #1
    PLATE ASSEMBLY, EXHUAST EXTENSION
    SERIAL GROUP #1
  • 7
    23-71980 BUSHING, FLANGE EXHUAST PLATE
    BUSHING, FLANGE EXHUAST PLATE
  • 8
    12-38453 WASHER, NYLON - WATER OUTLET TUBE
    WASHER, NYLON - WATER OUTLET TUBE
  • 9
    26-38452 SEAL, RUBBER - WATER OUTLET TUBE
    SEAL, RUBBER - WATER OUTLET TUBE
  • 10
    38500 RETAINER, WATER OUTLET TUBE SEAL
    SERIAL GROUP #1
    RETAINER, WATER OUTLET TUBE SEAL
    SERIAL GROUP #1
  • 11
    10-65414 SCREW RETAINER TO EXHAUST PLATE (3/4")
    SERIAL GROUP#1
    SCREW RETAINER TO EXHAUST PLATE (3/4")
    SERIAL GROUP#1
  • 12
    79799 HOUSING, WATER INLET TUBE SEAL
    SERIAL GROUP #2
    HOUSING, WATER INLET TUBE SEAL
    SERIAL GROUP #2
  • 13
    27-797971 GASKET, HOUSING
    SERIAL GROUP #2
    GASKET, HOUSING
    SERIAL GROUP #2
  • 14
    10-79798 SCREW, HOUSING TO EXHAUST PLATE (1 3/8")
    SERIAL GROUP #2
    SCREW, HOUSING TO EXHAUST PLATE (1 3/8")
    SERIAL GROUP #2
  • 15
    27-385011 GASKET
    EXHAUST PLATE TO DRIVE SHAFT HOUSING
    GASKET
    EXHAUST PLATE TO DRIVE SHAFT HOUSING
  • 16
    37637 BOOT, FUEL CONNECTOR - BOTTOM COWL
    BOOT, FUEL CONNECTOR - BOTTOM COWL
  • 17
    39616 BOOT, CONTROL CABLE - BOTTOM COWL
    BOOT, CONTROL CABLE - BOTTOM COWL
  • 18
    39555 COVER PLATE ASSEMBLY
    COVER PLATE ASSEMBLY
  • 19
    39556 PAD, SOUND - COVER PLATE
    PAD, SOUND - COVER PLATE
  • 20
    10-8M0113176 SCREW, COVER PLATE TO BOTTOM COWL
    SCREW, COVER PLATE TO BOTTOM COWL
  • 21
    87-69508A31 STOP SWITCH ASSEMBLY
    MANUAL
    STOP SWITCH ASSEMBLY
    MANUAL
  • 22
    11-69844 NUT, STOP SWITCH
    MANUAL
    NUT, STOP SWITCH
    MANUAL
  • 23
    76176 LEVER, FRONT COVER
    LEVER, FRONT COVER
  • 24
    17-26541 ROLL PIN, LEVER TO BOTTOM COWL
    ROLL PIN, LEVER TO BOTTOM COWL
  • 25
    24-76177 SPRING, FRONT COVER LEVER
    SPRING, FRONT COVER LEVER
