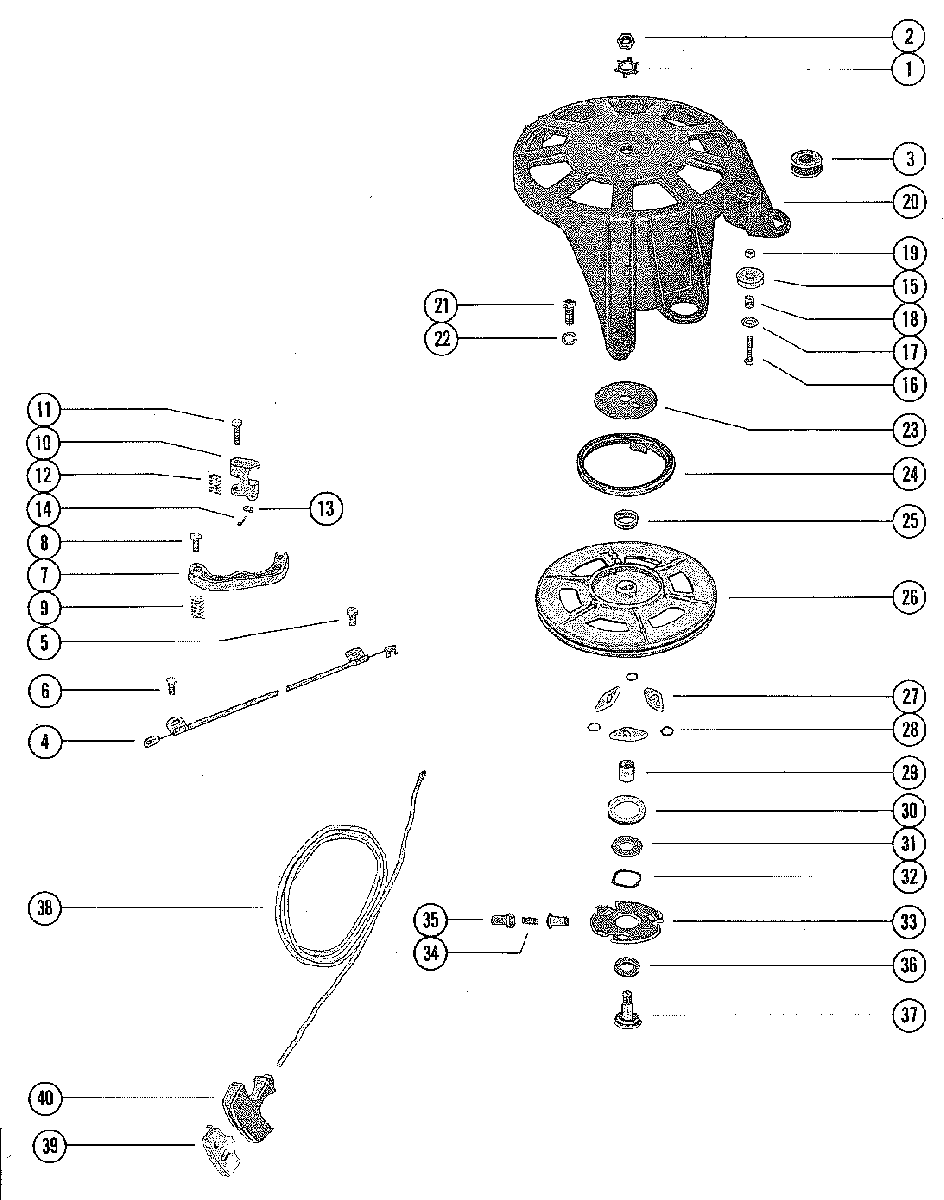

STARTER HOUSING для Mercury - 402, 40 (2 CYL.) 8052125 THRU 8064749

  • №
    Артикул
    Название
  • 1
    14-61004 TAB, WASHER, SHEAVE SHAFT NUT
    TAB, WASHER, SHEAVE SHAFT NUT
  • 2
    11-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    NUT, SHEAVE SHAFT (LEFT HAND THREAD)
  • 3
    25-39597 GROMMET, STARTER HOUSING
    GROMMET, STARTER HOUSING
  • 4
    76141 CALBE ASSEMBLY, INTERLOCK
    MANUAL
    CALBE ASSEMBLY, INTERLOCK
    MANUAL
  • 5
    10-32228 SCREW, CABLE TO EXHAUST PLATE (5/8")
    MANUAL
    SCREW, CABLE TO EXHAUST PLATE (5/8")
    MANUAL
  • 6
    10-69022 SCREW, CABLE TO STARTER HOUSING (1/2")
    MANUAL
    SCREW, CABLE TO STARTER HOUSING (1/2")
    MANUAL
  • 7
    428201 CAM, INTERLOCK
    MANUAL
    CAM, INTERLOCK
    MANUAL
  • 8
    10-76138 SCREW, INTERLOCK CAM ATTACHING (1 1/8")
    MANUAL
    SCREW, INTERLOCK CAM ATTACHING (1 1/8")
    MANUAL
  • 9
    24-761401 SPRING, INTERLOCK CAM SCREW
    MANUAL
    SPRING, INTERLOCK CAM SCREW
    MANUAL
  • 10
    79371 ACTUATOR, INTERLOCK
    MANUAL
    ACTUATOR, INTERLOCK
    MANUAL
  • 11
    10-76137 SCREW, INTERLOCK ACTUATOR ATTACHING (1 5/8")
    MANUAL
    SCREW, INTERLOCK ACTUATOR ATTACHING (1 5/8")
    MANUAL
  • 12
    24-76139 SPRING, INTERLOCK ACTUATOR SCREW
    MANUAL
    SPRING, INTERLOCK ACTUATOR SCREW
    MANUAL
  • 13
    12-30191 WSHER, INTERLOCK CABLE
    MANUAL
    WSHER, INTERLOCK CABLE
    MANUAL
  • 14
    18-26811 COTTER PIN, INTERLOCK CABLE TO ACTUATOR
    MANUAL
    COTTER PIN, INTERLOCK CABLE TO ACTUATOR
    MANUAL
  • 15
    55860 PULLEY, STARTER SCREW
    PULLEY, STARTER SCREW
  • 16
    10-45210 SCREW, PULLEY TO STARTER HOUSING (1 1/4")
    SCREW, PULLEY TO STARTER HOUSING (1 1/4")
  • 17
    12-22887 WASHER, PULLEY SCREW
    WASHER, PULLEY SCREW
  • 18
    23-309772 SPACER, PULLEY SCREW
    SPACER, PULLEY SCREW
  • 19
    11-24656 NUT, PULLEY SCREW
    NUT, PULLEY SCREW
  • 20
    76079A8 HOUSING, STARTER
    HOUSING, STARTER
  • 21
    10-37562 SCREW, STARTER HOUSING TO CRANKCASE (1")
    SCREW, STARTER HOUSING TO CRANKCASE (1")
  • 22
    10-37562 LOCKWASHER, STARTER HOUSING SCREW
    LOCKWASHER, STARTER HOUSING SCREW
  • 23
    61002 RETAINER, STARTER REWIND
    RETAINER, STARTER REWIND
  • 24
    24-39502T02 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
  • 25
    23-63100 BUSHING, SPRING GUIDE
    BUSHING, SPRING GUIDE
  • 26
    76053A1 STARTER SHEAVE ASSEMBLY
    STARTER SHEAVE ASSEMBLY
  • 27
    30596 PAWL, STARTER
    PAWL, STARTER
  • 28
    13-36206 WASHER, WAVE - STARTER PAWL
    WASHER, WAVE - STARTER PAWL
  • 29
    23-63061 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
  • 30
    39840 RETAINER, WAVE WASHER
    RETAINER, WAVE WASHER
  • 31
    12-57837 WASHER, WAVE WASHER RETAINER
    WASHER, WAVE WASHER RETAINER
  • 32
    12-57837 WASHER, WAVE - RETAINER TENSION
    WASHER, WAVE - RETAINER TENSION
  • 33
    66845 PLATE, RETAINER - STARTER PAWL
    PLATE, RETAINER - STARTER PAWL
  • 34
    24-66853 SPRING, RETAINER TO STARTER SHEAVE
    SPRING, RETAINER TO STARTER SHEAVE
  • 35
    66848 RETAINER, SPRING
    RETAINER, SPRING
  • 36
    12-57860 WASHER, SHEAVE SHAFT
    WASHER, SHEAVE SHAFT
  • 37
    61003 SHAFT, SHEAVE
    SHAFT, SHEAVE
  • 38
    50-12066Q10 STARTER ROPE ASSEMBLY
    STARTER ROPE ASSEMBLY
  • 38
    47341A11 STARTER ROPE ASSEMBLY
    FOR MANUAL STARTING
    STARTER ROPE ASSEMBLY
    FOR MANUAL STARTING
  • 39
    79470A1 RETAINER, STARTER ROPE
    SERIAL GROUP #1
    RETAINER, STARTER ROPE
    SERIAL GROUP #1
  • 40
    79470A1 HANDLE, STARTER ROPE
    SERIAL GROUP #1
    HANDLE, STARTER ROPE
    SERIAL GROUP #1
  • 39&40
    79470A1 RETAINER ASSEMBLY, STARTER ROPE
    SERIAL GROUP #2
    RETAINER ASSEMBLY, STARTER ROPE
    SERIAL GROUP #2
