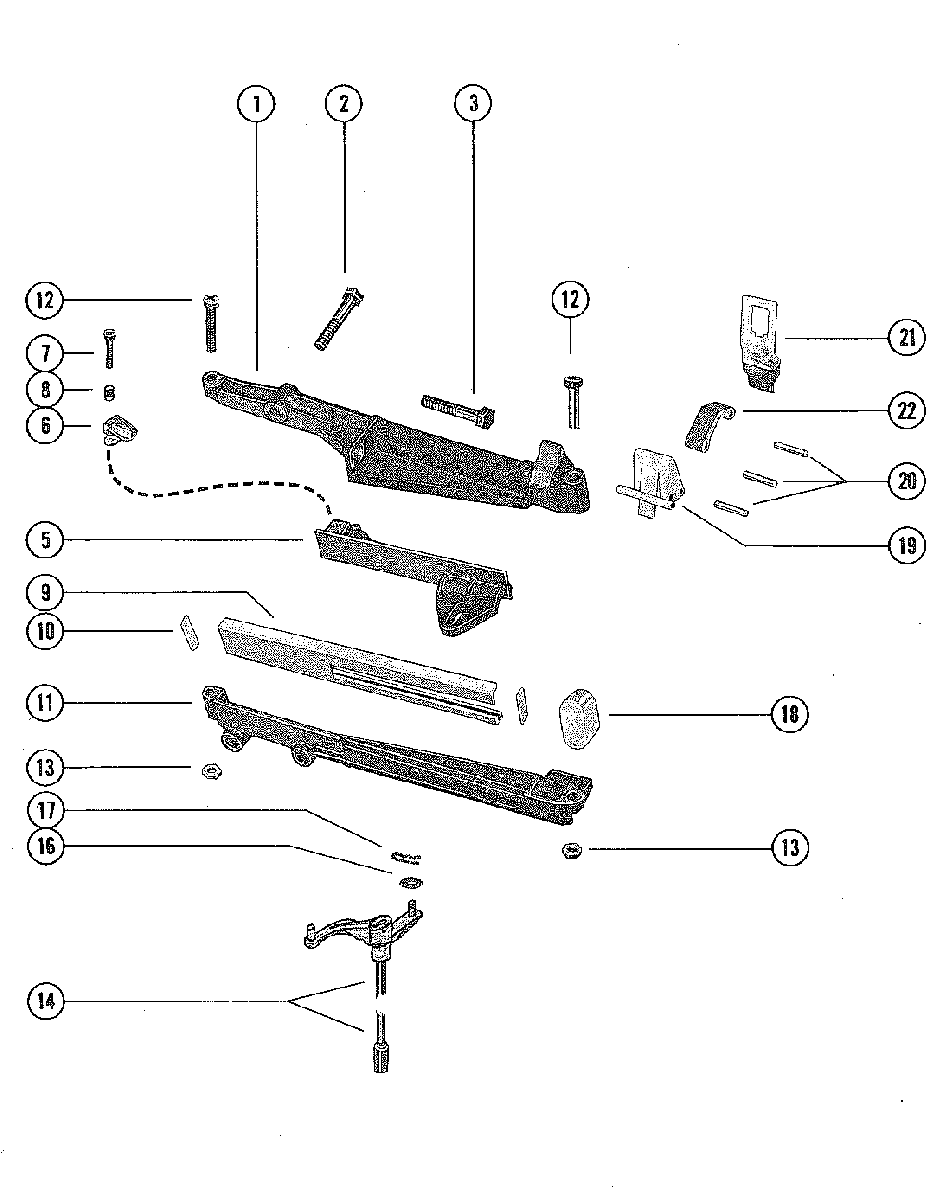

SHIFT CONTROL LINKAGE для Mercury - 402, 40 (2 CYL.) 8052125 THRU 8064749

  • №
    Артикул
    Название
  • 1
    87876A2 BRACKET, SHIFT ANCHOR - UPPER
    BRACKET, SHIFT ANCHOR - UPPER
  • 2
    10-73657 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK
    (1 1/2")
    SCREW, ANCHOR BRACKET TO CYLINDER BLOCK
    (1 1/2")
  • 2
    10-67450 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK
    (2 1/8")
    SCREW, ANCHOR BRACKET TO CYLINDER BLOCK
    (2 1/8")
  • 3
    10-35385 SCREW, BRACKET TO CRANKCASE
    (1 3/4")
    SCREW, BRACKET TO CRANKCASE
    (1 3/4")
  • 5
    87874 SLIDE, SHIFT ACTUATING
    SLIDE, SHIFT ACTUATING
  • 6
    56193 LATCH, SHIFT ACTUATING SLIDE (SHIFT CABLE)
    LATCH, SHIFT ACTUATING SLIDE (SHIFT CABLE)
  • 8
    10-39620 SPRING, COMPRESSION - LATCH SCREW
    SPRING, COMPRESSION - LATCH SCREW
  • 9
    75717 SLIDE, NYLON - ANCHOR BRACKET
    SLIDE, NYLON - ANCHOR BRACKET
  • 10
    39515 END CAP, NYLON - ANCHOR BRACKET SLIDE
    END CAP, NYLON - ANCHOR BRACKET SLIDE
  • 11
    87876A2 BRACKET, SHIFT ANCHOR - LOWER
    BRACKET, SHIFT ANCHOR - LOWER
  • 12
    10-20012 SCREW, UPPER BRACKET TO LOWER BRACKET
    (1 5/8")
    SCREW, UPPER BRACKET TO LOWER BRACKET
    (1 5/8")
  • 13
    24-20856 NUT, UPPER ANCHOR BRACKET SCREW
    NUT, UPPER ANCHOR BRACKET SCREW
  • 14
    75104A7 SHIFT SHAFT ASSEMBLY (SHORT SHAFT)
    SHIFT SHAFT ASSEMBLY (SHORT SHAFT)
  • 14
    75104A8 SHIFT SHAFT ASSEMBLY (LONG SHAFT)
    SHIFT SHAFT ASSEMBLY (LONG SHAFT)
  • 16
    12-37998 WASHER, UPPER SHIFT SHAFT
    MANUAL
    WASHER, UPPER SHIFT SHAFT
    MANUAL
  • 17
    18-26811 COTTOER PIN, UPPER SHIFT SHAFT
    MANUAL
    COTTOER PIN, UPPER SHIFT SHAFT
    MANUAL
  • 18
    39519 CUP, RETAINER - ANCHOR BRACKET
    (SHIFT CABLE BARREL)
    CUP, RETAINER - ANCHOR BRACKET
    (SHIFT CABLE BARREL)
  • 19
    87609A1 LEVER, NYLON - SHIFT CABLE LOCKING
    (UPPER BRACKET)
    LEVER, NYLON - SHIFT CABLE LOCKING
    (UPPER BRACKET)
  • 20
    17-47175 PIN, LOCKING LEVER AND COVER FASTENING
    PIN, LOCKING LEVER AND COVER FASTENING
  • 21
    39667 COVER, NYLON - SHIFT CABLE
    COVER, NYLON - SHIFT CABLE
  • 22
    87609A1 LINK, LOCKING LEVER TO COVER
    LINK, LOCKING LEVER TO COVER
