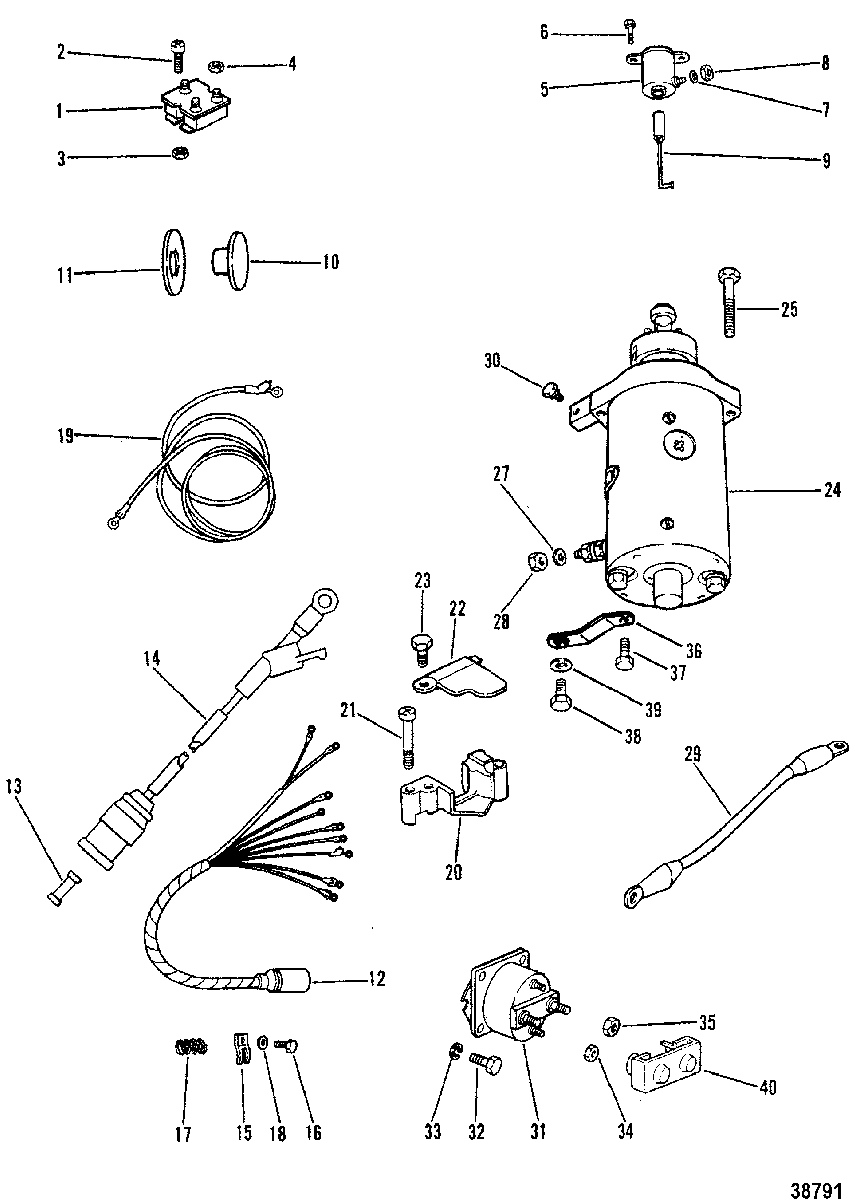

STARTER MOTOR, RECTIFIER AND WIRING HARNESS (ELECTRIC ONLY) для Mercury - 35 (2 CYL.) 6445653 THRU 0B110788
-
№АртикулНазвание
-
18M0058226 RECTIFIERRECTIFIER
-
210-38055 SCREW, (.190-32 x .62)SCREW, (.190-32 x .62)
-
311-27164 NUT AND LOCKWASHER, (#10-32), RECTIFIER FASTENING SCREWNUT AND LOCKWASHER, (#10-32), RECTIFIER FASTENING SCREW
-
411-45076 NUT, (#10-32) Brass, RECTIFIER TERMINALNUT, (#10-32) Brass, RECTIFIER TERMINAL
-
589-889274 SOLENOID ASSEMBLY, ChokeSOLENOID ASSEMBLY, Choke
-
610-25299 SCREW, (.312-18 x .75)SCREW, (.312-18 x .75)
-
713-26996 LOCKWASHER, (#10) Stainless Steel, CHOKE SOLENOID TERMINALLOCKWASHER, (#10) Stainless Steel, CHOKE SOLENOID TERMINAL
-
811-45076 NUT, (#10-32) Brass, CHOKE SOLONOID TERMINALNUT, (#10-32) Brass, CHOKE SOLONOID TERMINAL
-
989008A2 PLUNGER ASSEMBLY, CHOKE SOLENOIDPLUNGER ASSEMBLY, CHOKE SOLENOID
-
1019-35827 PLUG, BOTTOM COWL
PART OF BOTTOM COWL ASSEMBLYPLUG, BOTTOM COWL
PART OF BOTTOM COWL ASSEMBLY -
1111-30428 FASTENER, PLUG TO BOTTOM COWL
PART OF BOTTOM COWL ASSEMBLYFASTENER, PLUG TO BOTTOM COWL
PART OF BOTTOM COWL ASSEMBLY -
1284-96219A8 HARNESS ASSEMBLY
(BOLT/NUT CONNECTORS)HARNESS ASSEMBLY
(BOLT/NUT CONNECTORS) -
1284-96219A8 HARNESS ASSEMBLY
(BULLET CONNECTORS)HARNESS ASSEMBLY
(BULLET CONNECTORS) -
1388-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
1484-95084A2 CABLE ASSEMBLY, FUSECABLE ASSEMBLY, FUSE
-
1588751 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
1610-23702 SCREW, (.190-32 x 1.12), WIRING HARNESS CLAMPSCREW, (.190-32 x 1.12), WIRING HARNESS CLAMP
-
1724-28357 SPRING, WIRING HARNESS CLAMP SCREWSPRING, WIRING HARNESS CLAMP SCREW
-
1812-72761 WASHER, (.203 x .562 x .060) Stainless Steel, WIRING HARNESS CLAMP SCREWWASHER, (.203 x .562 x .060) Stainless Steel, WIRING HARNESS CLAMP SCREW
-
1984-88439A3 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
1984-88439A4 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
20886201 BRACKET, HARNESS SUPORTBRACKET, HARNESS SUPORT
-
2110-73280 SCREW, HARNESS SUPPORT BRACKETSCREW, HARNESS SUPPORT BRACKET
-
2288617 COVER, HARNESS SUPPORT BRACKETCOVER, HARNESS SUPPORT BRACKET
-
2310-28635 SCREW, (.250-20 x .620) Stainless Steel, HARNESS SUPPORT BRACKET COVERSCREW, (.250-20 x .620) Stainless Steel, HARNESS SUPPORT BRACKET COVER
-
2450-898265007 STARTER MOTOR ASSEMBLY (10 PINION TEETH)STARTER MOTOR ASSEMBLY (10 PINION TEETH)
-
2510-35213 SCREW (1-5/8 INCH)SCREW (1-5/8 INCH)
-
2713-26992 LOCKWASHER, (.250) Stainless Steel, CABLE TO STARTER MOTOR NUTLOCKWASHER, (.250) Stainless Steel, CABLE TO STARTER MOTOR NUT
-
2811-20890 NUT, (.250-20), CABLE TO STARTER MOTORNUT, (.250-20), CABLE TO STARTER MOTOR
-
2984-88809A9 CABLE ASSEMBLY, STARTER TO SOLENOID (YELLOW)CABLE ASSEMBLY, STARTER TO SOLENOID (YELLOW)
-
3010-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
3189-96158T SOLENOID, StarterSOLENOID, Starter
-
3210-98253 SCREW, (.250-20 x .500), SOLENOID TO BRACKETSCREW, (.250-20 x .500), SOLENOID TO BRACKET
-
3313-26992 LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID SCREWLOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID SCREW
-
3411-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
3511-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
3642729A1 BRACKET, STARTER MOTOR TO CRANKCASEBRACKET, STARTER MOTOR TO CRANKCASE
-
3710-32079 SCREW, (.250-20 x .560)SCREW, (.250-20 x .560)
-
3810-69022 SCREW, (#10-32 x .500) Stainless SteelSCREW, (#10-32 x .500) Stainless Steel
-
3912-89302 WASHER, (.203 x .406 x .040), BRACKET SCREWWASHER, (.203 x .406 x .040), BRACKET SCREW
-
4085-97861 INSULATOR, STARTER SOLENOIDINSULATOR, STARTER SOLENOID
