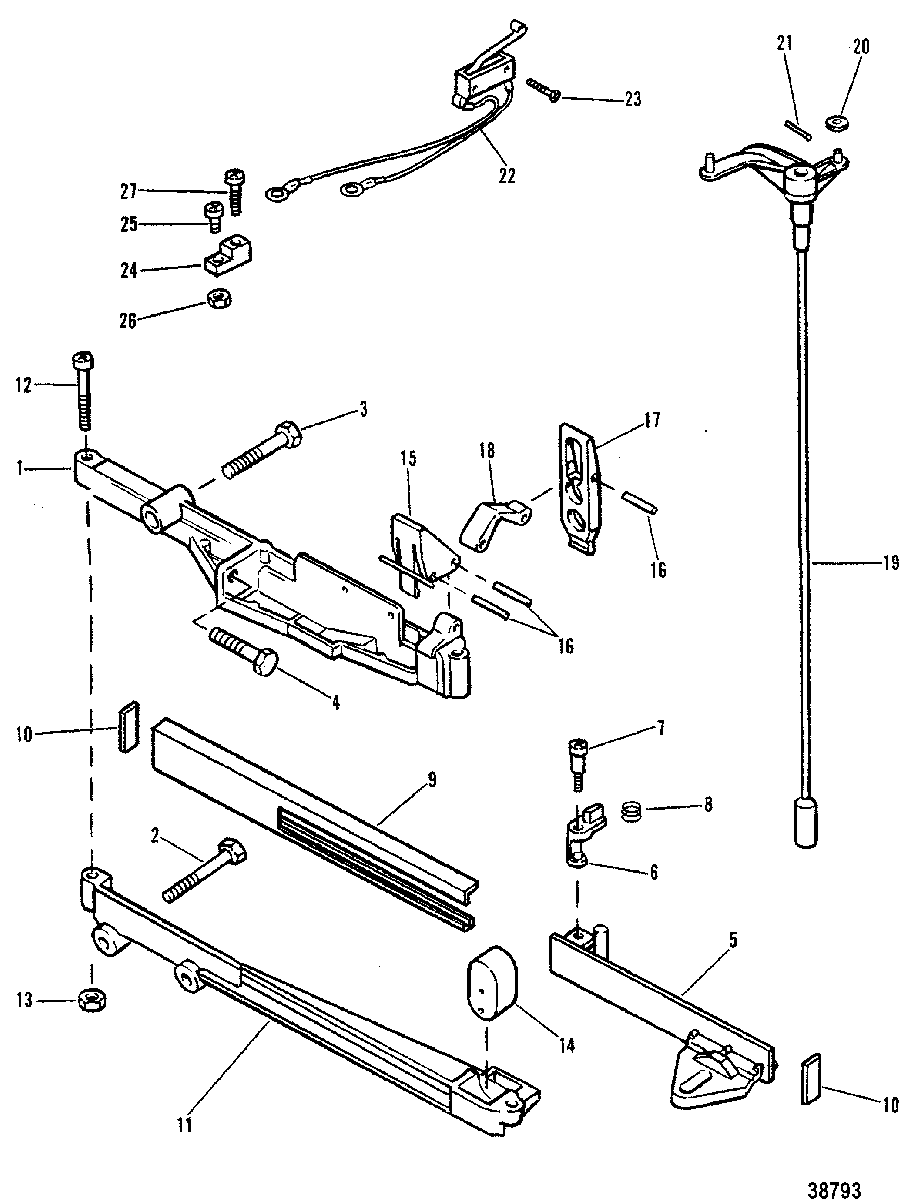

SHIFT CONTROL LINKAGE для Mercury - 35 (2 CYL.) 6445653 THRU 0B110788

‹-+›
  • №
    Артикул
    Название
  • 1
    87876A2 BRACKET, SHIFT ANCHOR - UPPER
    BRACKET, SHIFT ANCHOR - UPPER
  • 2
    10-73657 SCREW, (.312-18 x 1.50)
    SCREW, (.312-18 x 1.50)
  • 3
    10-67450 SCREW, (.312-18 x 2.250)
    SCREW, (.312-18 x 2.250)
  • 4
    10-35385 SCREW, (.312-18 x 1-3/4), BRACKET TO CRANKCASE
    SCREW, (.312-18 x 1-3/4), BRACKET TO CRANKCASE
  • 5
    87874 SLIDE, SHIFT ACUTATING
    SLIDE, SHIFT ACUTATING
  • 6
    56193 LATCH, SHIFT ACUTATING SLIDE (SHIFT CABLE)
    LATCH, SHIFT ACUTATING SLIDE (SHIFT CABLE)
  • 7
    10-39620 SCREW, LATCH TO SHIFT ACTUTING SLIDE
    SCREW, LATCH TO SHIFT ACTUTING SLIDE
  • 8
    24-27087 SPRING, COMPRESSION - LATCH SCREW
    SPRING, COMPRESSION - LATCH SCREW
  • 9
    75717 SLIDE, NYLON -ANCHOR BRACKET
    SLIDE, NYLON -ANCHOR BRACKET
  • 10
    39515 END CAP, NYLON - ANCHOR BRACKET SLIDE
    END CAP, NYLON - ANCHOR BRACKET SLIDE
  • 11
    87876A2 BRACKET, SHIFT ANCHOR - LOWER
    BRACKET, SHIFT ANCHOR - LOWER
  • 12
    10-20012 SCREW, (.250-28 x 1.62)
    SCREW, (.250-28 x 1.62)
  • 13
    11-826709109 NUT, (.250-28), UPPER ANCHOR BRACKET SCREW
    NUT, (.250-28), UPPER ANCHOR BRACKET SCREW
  • 14
    39519 CUP, RETAINER - ANCHOR BRACKET (SHIFT CABLE BARREL)
    CUP, RETAINER - ANCHOR BRACKET (SHIFT CABLE BARREL)
  • 15
    87609A1 LEVER, NYLON - SHIFT CABLE LOCKING
    LEVER, NYLON - SHIFT CABLE LOCKING
  • 16
    17-47175 PIN, LOCKING LEVERA AND COVER FASTENING
    PIN, LOCKING LEVERA AND COVER FASTENING
  • 17
    90211 COVER, NYLON - SHIFT CABLE
    COVER, NYLON - SHIFT CABLE
  • 18
    87609A1 LINK, LOCKING LEVER TO COVER
    LINK, LOCKING LEVER TO COVER
  • 19
    75104A7 SHIFT SHAFT ASSEMBLY
    (SHORT SHAFT)
    SHIFT SHAFT ASSEMBLY
    (SHORT SHAFT)
  • 19
    75104A8 SHIFT SHAFT ASSEMBLY
    (LONG SHAFT)
    SHIFT SHAFT ASSEMBLY
    (LONG SHAFT)
  • 20
    12-37998 WASHER, UPPER SHIFT SHAFT
    MANUAL
    WASHER, UPPER SHIFT SHAFT
    MANUAL
  • 21
    18-26811 COTTER PIN, UPPER SHIFT SHAFT
    MANUAL
    COTTER PIN, UPPER SHIFT SHAFT
    MANUAL
  • 22
    87-88096A1 SWITCH ASSEMBLY
    ELECTRIC TILLER
    SWITCH ASSEMBLY
    ELECTRIC TILLER
  • 23
    10-30902 SCREW, (#6-32 x .750)
    ELECTRIC TILLER
    SCREW, (#6-32 x .750)
    ELECTRIC TILLER
  • 24
    86-45915 TERMINAL BLOCK
    ELECTRIC TILLER
    TERMINAL BLOCK
    ELECTRIC TILLER
  • 25
    10-25764 SCREW, (.190-32 x .50)
    ELECTRIC TILLER
    SCREW, (.190-32 x .50)
    ELECTRIC TILLER
  • 26
    11-27164 NUT AND LOCKWASHER, (#10-32)
    ELECTRIC TILLER
    NUT AND LOCKWASHER, (#10-32)
    ELECTRIC TILLER
  • 27
    10-69079 SCREW, (#10-16 x .440)
    ELECTRIC TILLER
    SCREW, (#10-16 x .440)
    ELECTRIC TILLER
