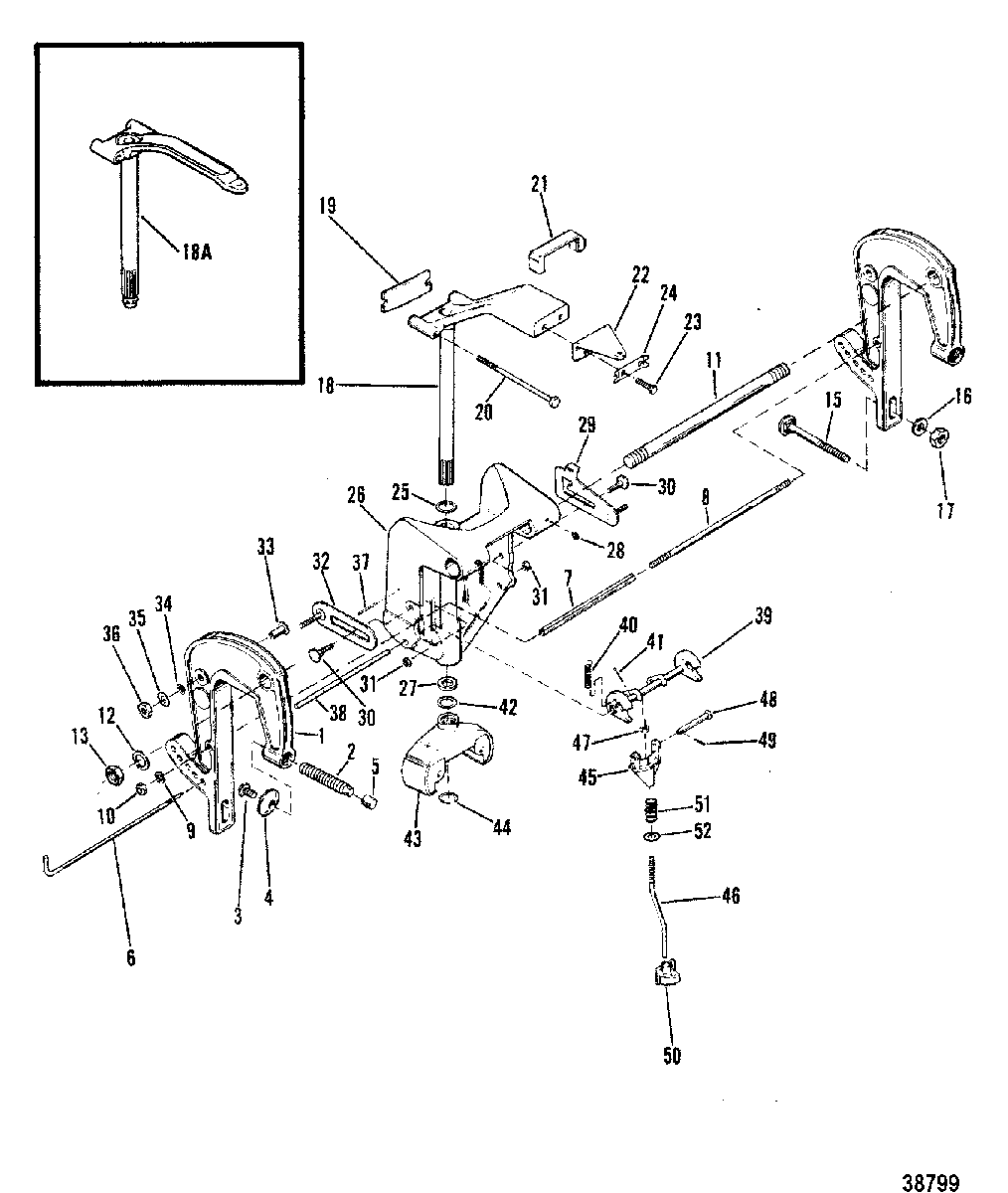

CLAMP AND SWIVEL BRACKET(NON POWER TRIM) для Mercury - 35 (2 CYL.) 6445653 THRU 0B110788

  • №
    Артикул
    Название
  • 1
    1427-5611A5 CLAMP BRACKET ASSEMBLY
    (MANUAL)
    CLAMP BRACKET ASSEMBLY
    (MANUAL)
  • 1
    1427-5611A4 CLAMP BRACKET ASSEMBLY
    (ELECTRIC)
    CLAMP BRACKET ASSEMBLY
    (ELECTRIC)
  • 2
    10-90470A3 THUMB SCREW ASSEMBLY
    (MANUAL)
    THUMB SCREW ASSEMBLY
    (MANUAL)
  • 2
    10-78492A1 THUMB SCREW ASSEMBLY
    (ELECTRIC)
    THUMB SCREW ASSEMBLY
    (ELECTRIC)
  • 3
    10-78495 SCREW, WASHER TO THUMB SCREW
    SCREW, WASHER TO THUMB SCREW
  • 4
    12-78493 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 5
    75043 CAP, THUMB SCREW
    (ELECTRIC)
    CAP, THUMB SCREW
    (ELECTRIC)
  • 6
    17-8M0026068 PIN ASSEMBLY, Tilt Lock
    PIN ASSEMBLY, Tilt Lock
  • 7
    23-59623 SPACER, CLAMP BRAKCET STUD
    SPACER, CLAMP BRAKCET STUD
  • 8
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 9
    13-26993 LOCKWASHER, (.312), STUD
    LOCKWASHER, (.312), STUD
  • 10
    11-28770 NUT, (.312-24) Stainless Steel, STUD
    NUT, (.312-24) Stainless Steel, STUD
  • 11
    8M0041936 TILT TUBE
    TILT TUBE
  • 12
    12-52864 WASHER, CLAMP BRACKET TO SWIVEL BRACKET
    WASHER, CLAMP BRACKET TO SWIVEL BRACKET
  • 13
    11-858869 NUT, (.875-14), TILT TUBE
    NUT, (.875-14), TILT TUBE
  • 15
    10-68298 BOLT, (.375-16 x 3.250) (LOWER)
    BOLT, (.375-16 x 3.250) (LOWER)
  • 16
    12-46765 WASHER, CLAMP BRACKET BOLT (LOWER)
    WASHER, CLAMP BRACKET BOLT (LOWER)
  • 17
    11-82671112 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 18
    88798A23 SWIVEL PIN ASSEMBLY
    (SHORT SHAFT)(MANUAL/ELECTRIC)
    SWIVEL PIN ASSEMBLY
    (SHORT SHAFT)(MANUAL/ELECTRIC)
  • 18
    88798A24 SWIVEL PIN ASSEMBLY
    (LONG SHAFT)(MANUAL/ELECTRIC)
    SWIVEL PIN ASSEMBLY
    (LONG SHAFT)(MANUAL/ELECTRIC)
  • 18A
    69540A3 SWIVEL PIN ASSEMBLY
    (SHORT SHAFT)(ELECTRIC-DESIGN I)
    SWIVEL PIN ASSEMBLY
    (SHORT SHAFT)(ELECTRIC-DESIGN I)
  • 18A
    69540A4 SWIVEL PIN ASSEMBLY
    (LONG SHAFT)(ELECTRIC-DESIGN I)
    SWIVEL PIN ASSEMBLY
    (LONG SHAFT)(ELECTRIC-DESIGN I)
  • 19
    30711 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
  • 20
    10-66897 BOLT, (.437-20 x 5.250), UPPER MOUNT TO STEERING ARM
    BOLT, (.437-20 x 5.250), UPPER MOUNT TO STEERING ARM
  • 21
    62297 BUMPER, STEERING ARM
    W/O TILLER HANDLE
    BUMPER, STEERING ARM
    W/O TILLER HANDLE
  • 22
    76535T BRACKET, RIDE-GUIDE ATTACHING
    W/O TILLER HANDLE
    BRACKET, RIDE-GUIDE ATTACHING
    W/O TILLER HANDLE
  • 23
    10-34352 SCREW, (.375-24 x .875), BRACKET TO STEERING ARM
    W/O TILLER HANDLE
    SCREW, (.375-24 x .875), BRACKET TO STEERING ARM
    W/O TILLER HANDLE
  • 24
    76533 STRAP, BRACKET SCREW
    W/O TILLER HANDLE
    STRAP, BRACKET SCREW
    W/O TILLER HANDLE
  • 25
    12-52865 WASHER, SWIVEL PIN
    WASHER, SWIVEL PIN
  • 26
    1481-7656A1 SWIVEL BRACKET
    (SHORT SHAFT)
    SWIVEL BRACKET
    (SHORT SHAFT)
  • 26
    1480-7655A1 SWIVEL BRACKET
    (LONG SHAFT)
    SWIVEL BRACKET
    (LONG SHAFT)
  • 27
    26-32911 SEAL, Oil, SWIVEL BRACKET
    SEAL, Oil, SWIVEL BRACKET
  • 28
    22-74036 FITTING, Grease, SWIVEL BRACKET
    FITTING, Grease, SWIVEL BRACKET
  • 29
    47913A2 LEVER ASSEMBLY, TILT LOCK - PORT SIDE
    LEVER ASSEMBLY, TILT LOCK - PORT SIDE
  • 30
    10-69087 SCREW, (.312-24 x .880)
    SCREW, (.312-24 x .880)
  • 31
    11-29250 NUT, (.312-24), TILT LOCK AND STOP LEVER SCREW
    NUT, (.312-24), TILT LOCK AND STOP LEVER SCREW
  • 32
    47912A2 LEVER ASSEMBLY, TILT STOP - STARBOARD SIDE
    LEVER ASSEMBLY, TILT STOP - STARBOARD SIDE
  • 33
    23-47911 BUSHING, TILT LOCK AND STOP LEVER
    BUSHING, TILT LOCK AND STOP LEVER
  • 34
    13-34632 WASHER, WAVE - TILT LOCK AND STOP LEVER
    WASHER, WAVE - TILT LOCK AND STOP LEVER
  • 35
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel, TILT LOCK AND STOP LEVER
    WASHER, (.330 x .750 x .060) Stainless Steel, TILT LOCK AND STOP LEVER
  • 36
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 37
    17-25598 PIN, REVERSE LOCK SPRING ATTACHING
    PIN, REVERSE LOCK SPRING ATTACHING
  • 38
    56349 SHAFT, REVERSE LOCK TO SWIVEL BRACKET
    SHAFT, REVERSE LOCK TO SWIVEL BRACKET
  • 39
    14664A3 LOCK ASSEMBLY, Reverse
    LOCK ASSEMBLY, Reverse
  • 40
    24-29821 SPRING, REVERSE LOCK TENSION
    SPRING, REVERSE LOCK TENSION
  • 41
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
  • 42
    12-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
    WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
  • 43
    77416T1 YOKE, Bottom
    YOKE, Bottom
  • 44
    53-77415 RETAINING RING, BOTTOM YOKE
    RETAINING RING, BOTTOM YOKE
  • 45
    89813 ROD END, PUSH ROD
    ROD END, PUSH ROD
  • 46
    43412 ROD, PUSH - REVERSE LOCK
    (SHORT SHAFT)
    ROD, PUSH - REVERSE LOCK
    (SHORT SHAFT)
  • 46
    43413 ROD, PUSH - REVERSE LOCK
    (LONG SHAFT)
    ROD, PUSH - REVERSE LOCK
    (LONG SHAFT)
  • 47
    11-82670911 NUT, (.312-24) Stainless Steel, JAM - PUSH ROD
    NUT, (.312-24) Stainless Steel, JAM - PUSH ROD
  • 48
    17-72524 PIN, REVERSE LOCK LEVER
    PIN, REVERSE LOCK LEVER
  • 49
    18-25191 COTTER PIN, PUSH ROD TO REVERSE LOCK
    COTTER PIN, PUSH ROD TO REVERSE LOCK
  • 50
    933361 GUIDE, PUSH ROD
    GUIDE, PUSH ROD
  • 51
    24-44297 SPRING, PUSH ROD
    SPRING, PUSH ROD
  • 52
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, PUSH ROD
    WASHER, (.323 x .563 x .063) Stainless Steel, PUSH ROD
