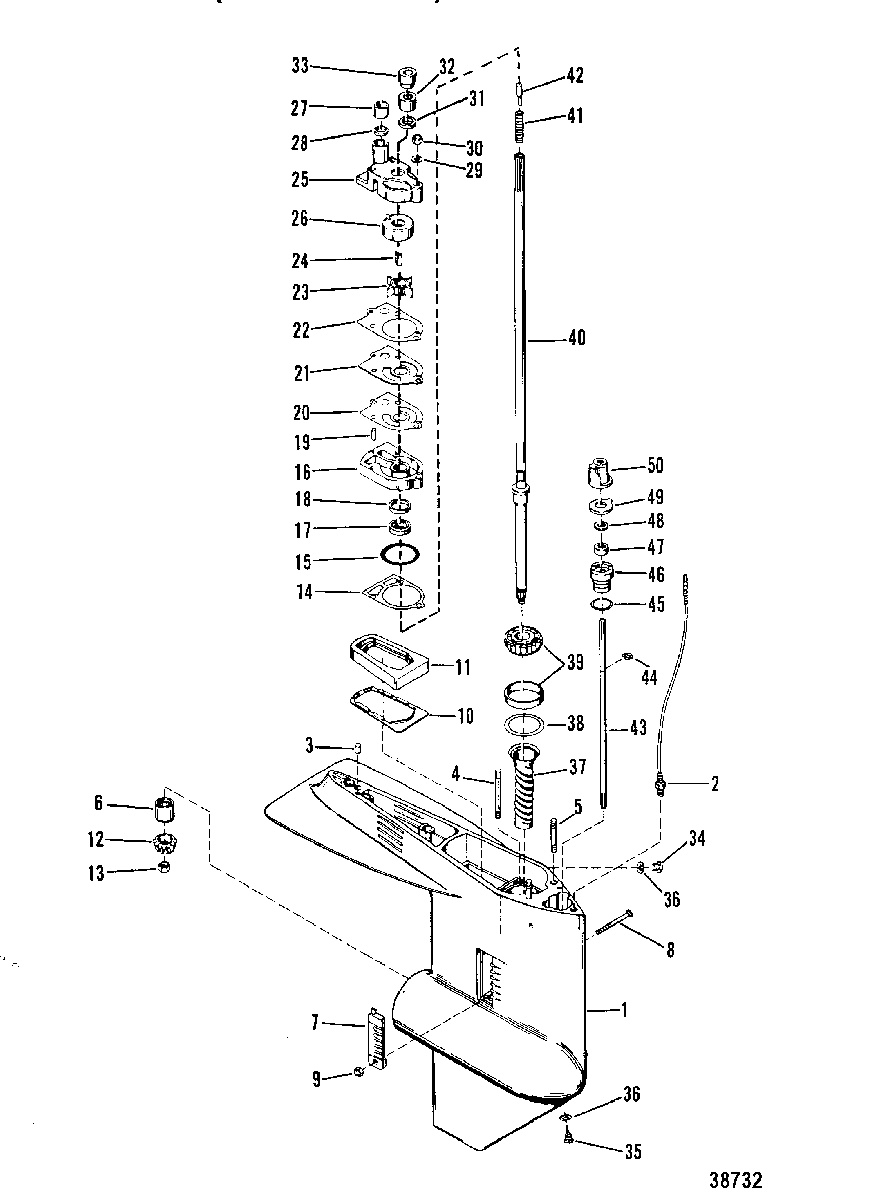

GEAR HOUSING(DRIVESHAFT) для Mercury - 35 (2 CYL.) 6445653 THRU 0B110788

  • №
    Артикул
    Название
  • -
    1643-9539A4 GEAR HOUSING ASSEMBLY
    (SHORT SHAFT)
    GEAR HOUSING ASSEMBLY
    (SHORT SHAFT)
  • -
    1643-9539A5 GEAR HOUSING ASSEMBLY
    (LONG SHAFT)
    GEAR HOUSING ASSEMBLY
    (LONG SHAFT)
  • -
    1643-9539A10 GEAR HOUSING ASSEMBLY
    (X-LONG SHAFT)
    GEAR HOUSING ASSEMBLY
    (X-LONG SHAFT)
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY, Mercury
    GEAR HOUSING ASSEMBLY, Mercury
  • 2
    22-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETER
    CONNECTOR ASSEMBLY, SPEEDOMETER
  • 3
    17-8M0084726 PIN, Dowel (.187 x .530)
    PIN, Dowel (.187 x .530)
  • 4
    16-33778 STUD, WATER PUMP/BASE (2-5/8")
    STUD, WATER PUMP/BASE (2-5/8")
  • 5
    16-8M0034453 STUD, (.437-14/.437-20 x 2.190), GEAR HOUSING
    STUD, (.437-14/.437-20 x 2.190), GEAR HOUSING
  • 5
    16-96126 STUD, (.4375 x 7.22), GEAR HOUSING
    (X-LONG SHAFT)
    STUD, (.4375 x 7.22), GEAR HOUSING
    (X-LONG SHAFT)
  • 6
    31-62091T BEARING, Roller
    BEARING, Roller
  • 7
    72849A1 SCREEN ASSEMBLY, WATER INTAKE
    SCREEN ASSEMBLY, WATER INTAKE
  • 8
    10-36070 SCREW, (#10-32 x 1.250), WATER INTAKE SCREEN TO GEAR HOUSING
    SCREW, (#10-32 x 1.250), WATER INTAKE SCREEN TO GEAR HOUSING
  • 9
    11-859124 NUT, (#10-32) Stainless Steel, WATER INTAKE SCREEN SCREW
    NUT, (#10-32) Stainless Steel, WATER INTAKE SCREEN SCREW
  • 10
    92815 PLATE, SUPPORT-EXHAUST TUBE
    PLATE, SUPPORT-EXHAUST TUBE
  • 11
    37721001 SEAL, EXHAUST TUBE
    SEAL, EXHAUST TUBE
  • 12
    43-98097T GEAR, Pinion
    GEAR, Pinion
  • 13
    11-55910 NUT, (.437-20), PINION GEAR TO DRIVESHAFT
    NUT, (.437-20), PINION GEAR TO DRIVESHAFT
  • 14
    27-19552 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 15
    25-26722 O-RING, WATER PUMP BASE
    O-RING, WATER PUMP BASE
  • 16
    46-77177A1 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 17
    26-79831 SEAL, Oil, WATER PUMP BASE
    SEAL, Oil, WATER PUMP BASE
  • 18
    26-90562 SEAL, (1.254 x .312), WATER PUMP BASE
    SEAL, (1.254 x .312), WATER PUMP BASE
  • 19
    17-8M0084627 PIN, Dowel, WATER PUMB BASE
    PIN, Dowel, WATER PUMB BASE
  • 20
    27-19553 GASKET, LOWER-WATER PUMP BASE TO FACE PLATE
    GASKET, LOWER-WATER PUMP BASE TO FACE PLATE
  • 21
    32768 FACE PLATE
    FACE PLATE
  • 22
    27-19551 GASKET, UPPER-FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER-FACE PLATE TO WATER PUMP BODY
  • 23
    47-89983T IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 24
    28-8M0032837 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 25
    46-77822A1 BODY ASSEMBLY, Water Pump
    BODY ASSEMBLY, Water Pump
  • 26
    48753 INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 27
    26-38452 SEAL, RUBBER-WATER INLET TUBE
    SEAL, RUBBER-WATER INLET TUBE
  • 28
    12-38453 WASHER, NYLON-WATER PUMP BODY
    WASHER, NYLON-WATER PUMP BODY
  • 29
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, BODY AND BASE STUDS
    WASHER, (.281 x .500 x .060) Stainless Steel, BODY AND BASE STUDS
  • 30
    11-35888 NUT, (.250-28) Stainless Steel, BODY AND BASE SUTDS
    NUT, (.250-28) Stainless Steel, BODY AND BASE SUTDS
  • 31
    25-20273 O-RING, RUBBER
    O-RING, RUBBER
  • 32
    88868A1 SEAT ASSEMBLY
    SEAT ASSEMBLY
  • 33
    86304 SEAL, SPLINED
    SEAL, SPLINED
  • 34
    10-79953Q04 SCREW, (.375-16 x .250), GREASE FILLER
    SCREW, (.375-16 x .250), GREASE FILLER
  • 35
    22-8M0058389 SCREW, Magnetic, DRAIN
    SCREW, Magnetic, DRAIN
  • 36
    12-191833 WASHER, FILLER/DRAIN SCREW
    WASHER, FILLER/DRAIN SCREW
  • 37
    88181 SLEEVE, LUBRICATION-DRIVESHAFT
    SLEEVE, LUBRICATION-DRIVESHAFT
  • 38
    15-92881A1 SHIM SET, BEARING TO GEAR HOUSING (.002-3-5-10-20)
    SHIM SET, BEARING TO GEAR HOUSING (.002-3-5-10-20)
  • 39
    31-77420A1 BEARING ASSEMBLY, Roller, TAPERED-DRIVESHAFT
    BEARING ASSEMBLY, Roller, TAPERED-DRIVESHAFT
  • 40
    45-98179 DRIVESHAFT ASSEMLBY
    (SHORT SHAFT)
    DRIVESHAFT ASSEMLBY
    (SHORT SHAFT)
  • 40
    45-98180 DRIVESHAFT ASSEMBLY
    (LONG SHAFT)
    DRIVESHAFT ASSEMBLY
    (LONG SHAFT)
  • 40
    45-97442A2 DRIVESHAFT ASSEMBLY
    (X-LONG SHAFT)
    DRIVESHAFT ASSEMBLY
    (X-LONG SHAFT)
  • 41
    24-20254 SPRING, COMPRESSION-DRIVESHAFT
    SPRING, COMPRESSION-DRIVESHAFT
  • 42
    17-30545 PIN, DRIVESHAFT
    PIN, DRIVESHAFT
  • 43
    76063A1 SHAFT ASSEMBLY, SHIFT
    SHAFT ASSEMBLY, SHIFT
  • 43
    97443A1 SHAFT ASSEMBLY, SHIFT
    (X-LONG SHAFT)
    SHAFT ASSEMBLY, SHIFT
    (X-LONG SHAFT)
  • 44
    53-29641 E RING
    E RING
  • 45
    25-25439 O-RING, (.862 x .103), SHIFT SHAFT BUSHING
    O-RING, (.862 x .103), SHIFT SHAFT BUSHING
  • 46
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 47
    26-8164641 SEAL, Oil, SHIFT SHAFT BUSHING
    SEAL, Oil, SHIFT SHAFT BUSHING
  • 48
    12-77674 WASHER, RUBBER-SHIFT SHAFT BUSHING
    WASHER, RUBBER-SHIFT SHAFT BUSHING
  • 49
    78036 BASE
    BASE
  • 50
    43308T1 CAM, REVERSE LOCKING
    CAM, REVERSE LOCKING
  • -
    46-77177A3 WATER PUMP KIT
    WATER PUMP KIT
  • -
    26-79831A1 SEAL KIT
    SEAL KIT
  • -
    27-78028A78 GASKET SET
    GASKET SET
