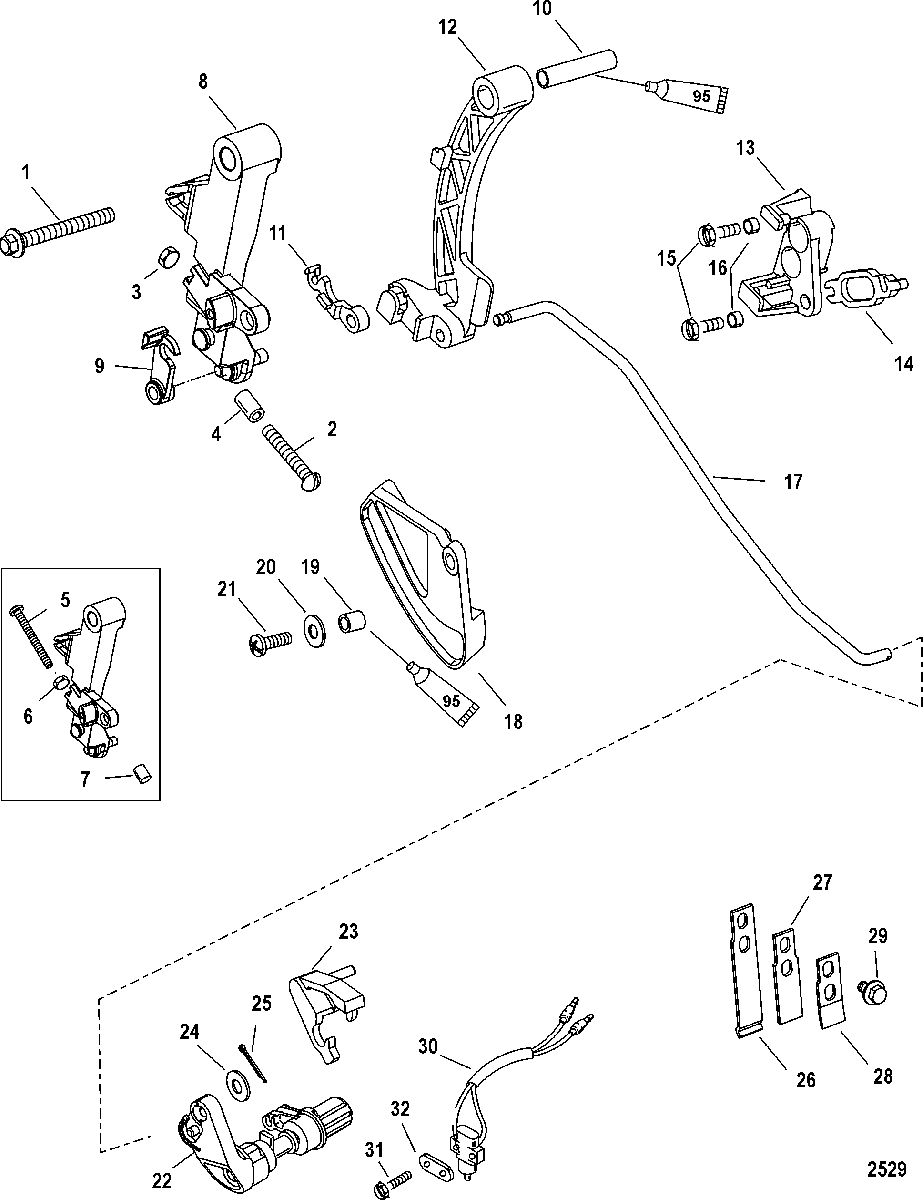

Linkage(Non Bigfoot) для Mercury - 30 Carb (3 CYL.)(4-STROKE) 0P153500 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    10-40011158 SCREW, (M8 x 70) Stainless Steel
    SCREW, (M8 x 70) Stainless Steel
  • 2
    10-8147763 SCREW, (M6 x 60)
    (30 HP)
    SCREW, (M6 x 60)
    (30 HP)
  • 3
    11-401196 NUT, (M6)
    (30 HP)
    NUT, (M6)
    (30 HP)
  • 4
    23-823807 BUSHING
    (30 HP)
    BUSHING
    (30 HP)
  • 5
    10-8147763 SCREW, (M6 x 60)
    (40 HP)
    SCREW, (M6 x 60)
    (40 HP)
  • 6
    11-401196 NUT, (M6)
    (40 HP)
    NUT, (M6)
    (40 HP)
  • 7
    42942 CAP
    (40 HP)
    CAP
    (40 HP)
  • 8
    822682A4 LEVER ASSEMBLY, Throttle
    LEVER ASSEMBLY, Throttle
  • 9
    883160 RETAINER
    RETAINER
  • 10
    23-825078 BUSHING
    BUSHING
  • 11
    822459 RETAINER
    (NON HANDLE)
    RETAINER
    (NON HANDLE)
  • 12
    8259571 LEVER, Shift
    (NON HANDLE)
    LEVER, Shift
    (NON HANDLE)
  • 13
    827706A4 BRACKET
    (NON HANDLE)
    BRACKET
    (NON HANDLE)
  • 14
    98889 LATCH
    (NON HANDLE)
    LATCH
    (NON HANDLE)
  • 15
    10-8248324 SCREW, (M6 x 16)
    (NON HANDLE)
    SCREW, (M6 x 16)
    (NON HANDLE)
  • 16
    23-15885 SLEEVE
    (NON HANDLE)
    SLEEVE
    (NON HANDLE)
  • 17
    882820 SHIFT ROD
    (NON HANDLE)
    SHIFT ROD
    (NON HANDLE)
  • 18
    8535853 CAM, Throttle
    CAM, Throttle
  • 19
    23-309772 SPACER
    SPACER
  • 20
    12-4002314 WASHER
    WASHER
  • 21
    10-40056107 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 22
    826588A4 SHIFT SHAFT ASSEMBLY, Horizontal
    SHIFT SHAFT ASSEMBLY, Horizontal
  • 23
    8277071 RETAINER
    RETAINER
  • 24
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 25
    18-210711 COTTER PIN
    COTTER PIN
  • 26
    24-826077 SPRING, Detent
    SPRING, Detent
  • 27
    24-824993 SPRING, Backing
    SPRING, Backing
  • 28
    824994 SPRING, Plate
    SPRING, Plate
  • 29
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 30
    87-8M0052927 SWITCH
    (ELECTRIC HANDLE MODELS)
    SWITCH
    (ELECTRIC HANDLE MODELS)
  • 31
    10-88075020 SCREW, (M3 x 20)
    (ELECTRIC HANDLE MODELS)
    SCREW, (M3 x 20)
    (ELECTRIC HANDLE MODELS)
  • 32
    824923 PLATE
    (ELECTRIC HANDLE MODELS)
    PLATE
    (ELECTRIC HANDLE MODELS)
