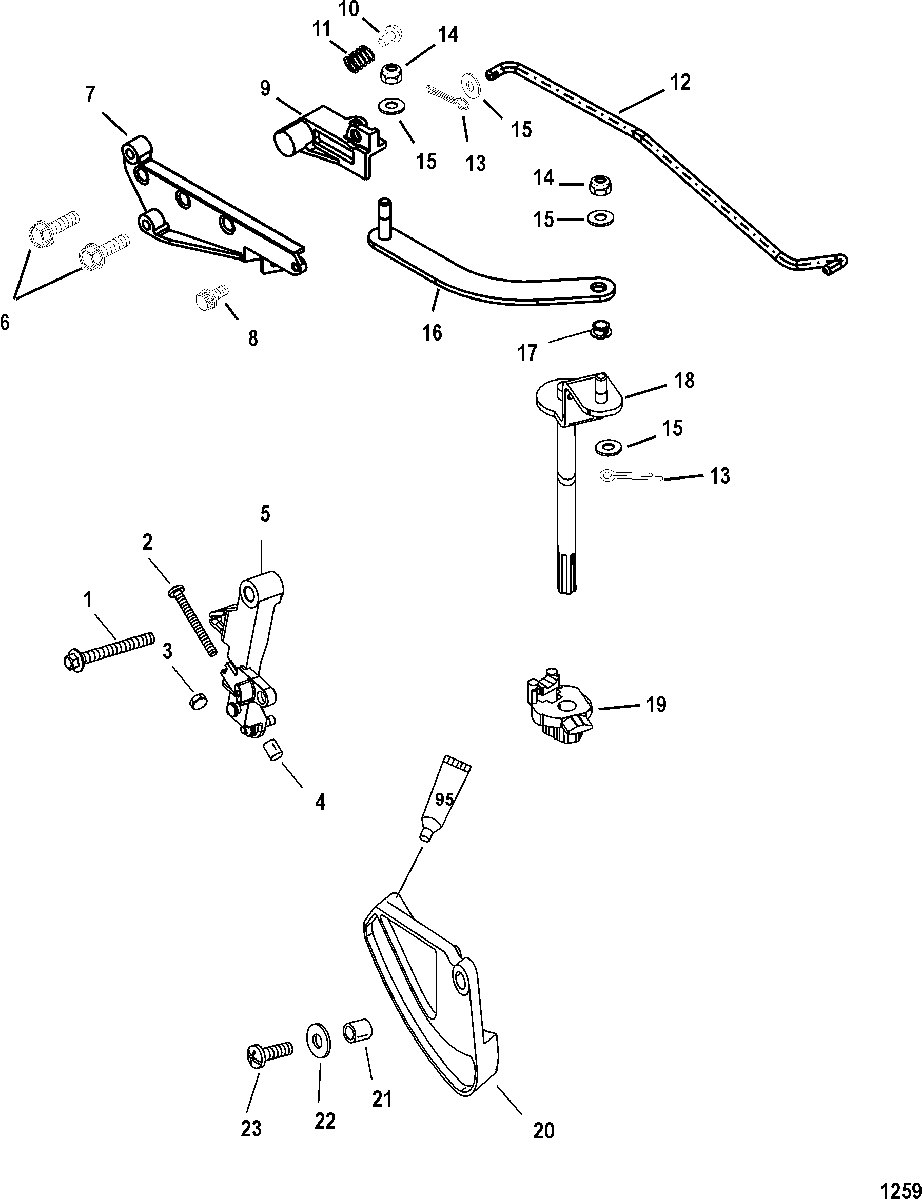

Linkage(Manual Bigfoot) для Mercury - 30 Carb (3 CYL.)(4-STROKE) 0P153500 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    10-40011158 SCREW, (M8 x 70) Stainless Steel
    SCREW, (M8 x 70) Stainless Steel
  • 2
    10-8147763 SCREW, (M6 x 60)
    SCREW, (M6 x 60)
  • 3
    11-401196 NUT, (M6)
    NUT, (M6)
  • 4
    42942 CAP
    CAP
  • 5
    822682A4 LEVER ASSEMBLY, Throttle
    LEVER ASSEMBLY, Throttle
  • 6
    10-8248326 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 7
    858245 SHIFT GUIDE
    SHIFT GUIDE
  • 8
    10-82239312 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 9
    858246 SHIFT SLIDE
    SHIFT SLIDE
  • 10
    8M0091388 DETENT/SPRING KIT
    DETENT/SPRING KIT
  • 11
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 12
    858247 SHIFT ROD
    SHIFT ROD
  • 13
    18-210711 COTTER PIN
    COTTER PIN
  • 14
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 15
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 16
    858248 SHIFT LINK
    SHIFT LINK
  • 17
    23-48475 BUSHING
    BUSHING
  • 18
    850166T2 LEVER ASSEMBLY, Shift Shaft
    LEVER ASSEMBLY, Shift Shaft
  • 19
    23-850165 BUSHING
    BUSHING
  • 20
    8535853 CAM, Throttle
    CAM, Throttle
  • 21
    23-309772 SPACER
    SPACER
  • 22
    12-4002314 WASHER
    WASHER
  • 23
    10-40056107 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
