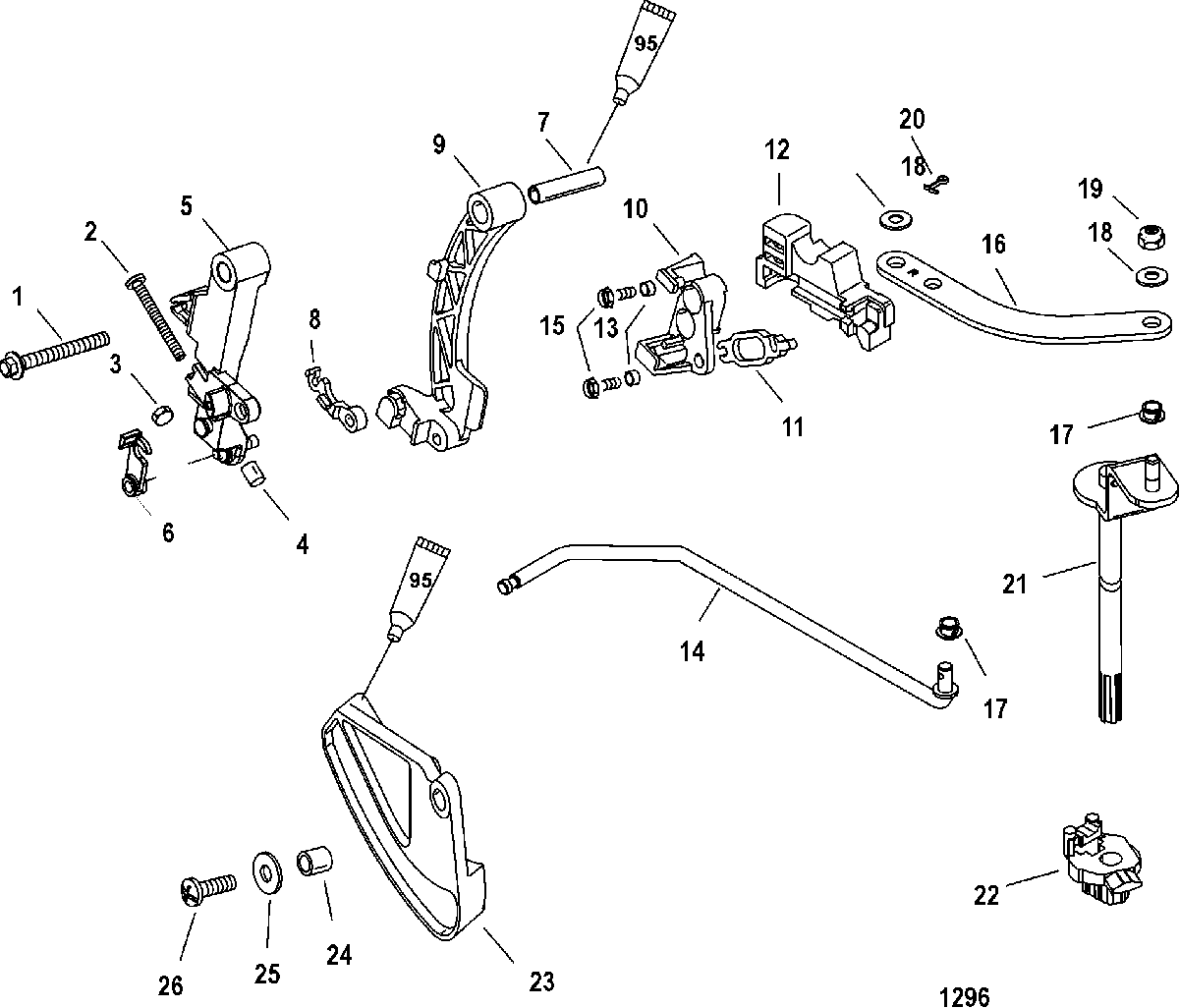

Linkage(Electric Bigfoot) для Mercury - 30 Carb (3 CYL.)(4-STROKE) 0P153500 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    10-40011158 SCREW, (M8 x 70) Stainless Steel
    SCREW, (M8 x 70) Stainless Steel
  • 2
    10-8147763 SCREW, (M6 x 60)
    SCREW, (M6 x 60)
  • 3
    11-401196 NUT, (M6)
    NUT, (M6)
  • 4
    42942 CAP
    CAP
  • 5
    822682A4 LEVER ASSEMBLY, Throttle
    LEVER ASSEMBLY, Throttle
  • 6
    883160 RETAINER
    RETAINER
  • 7
    23-825078 BUSHING
    BUSHING
  • 8
    822459 RETAINER
    RETAINER
  • 9
    8259571 LEVER, Shift
    LEVER, Shift
  • 10
    827706A4 BRACKET
    SN# 0T549732 and below & Below
    BRACKET
    SN# 0T549732 and below & Below
  • 10
    827706A4 BRACKET
    SN# 0T549733 and up & Up
    BRACKET
    SN# 0T549733 and up & Up
  • 11
    98889 LATCH
    LATCH
  • 12
    NSS NOT SOLD SEPARATE, Guide-Shift Rod
    SN# 0T549733 and up & Up
    NOT SOLD SEPARATE, Guide-Shift Rod
    SN# 0T549733 and up & Up
  • 12
    827706A4 GUIDE, Shift Rod
    SN# 0T549732 and below & Below
    GUIDE, Shift Rod
    SN# 0T549732 and below & Below
  • 13
    23-15885 SLEEVE
    SLEEVE
  • 14
    893777 SHIFT ROD
    SHIFT ROD
  • 15
    10-8248324 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 16
    893769A01 SHIFT LINK
    SHIFT LINK
  • 17
    23-48475 BUSHING
    BUSHING
  • 18
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 19
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 20
    18-210711 COTTER PIN
    COTTER PIN
  • 21
    850166T2 LEVER ASSEMBLY, Shift Shaft
    LEVER ASSEMBLY, Shift Shaft
  • 22
    23-850165 BUSHING
    BUSHING
  • 23
    8535853 CAM, Throttle
    CAM, Throttle
  • 24
    23-309772 SPACER
    SPACER
  • 25
    12-4002314 WASHER
    WASHER
  • 26
    10-40056107 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
